Input/Output Configuration

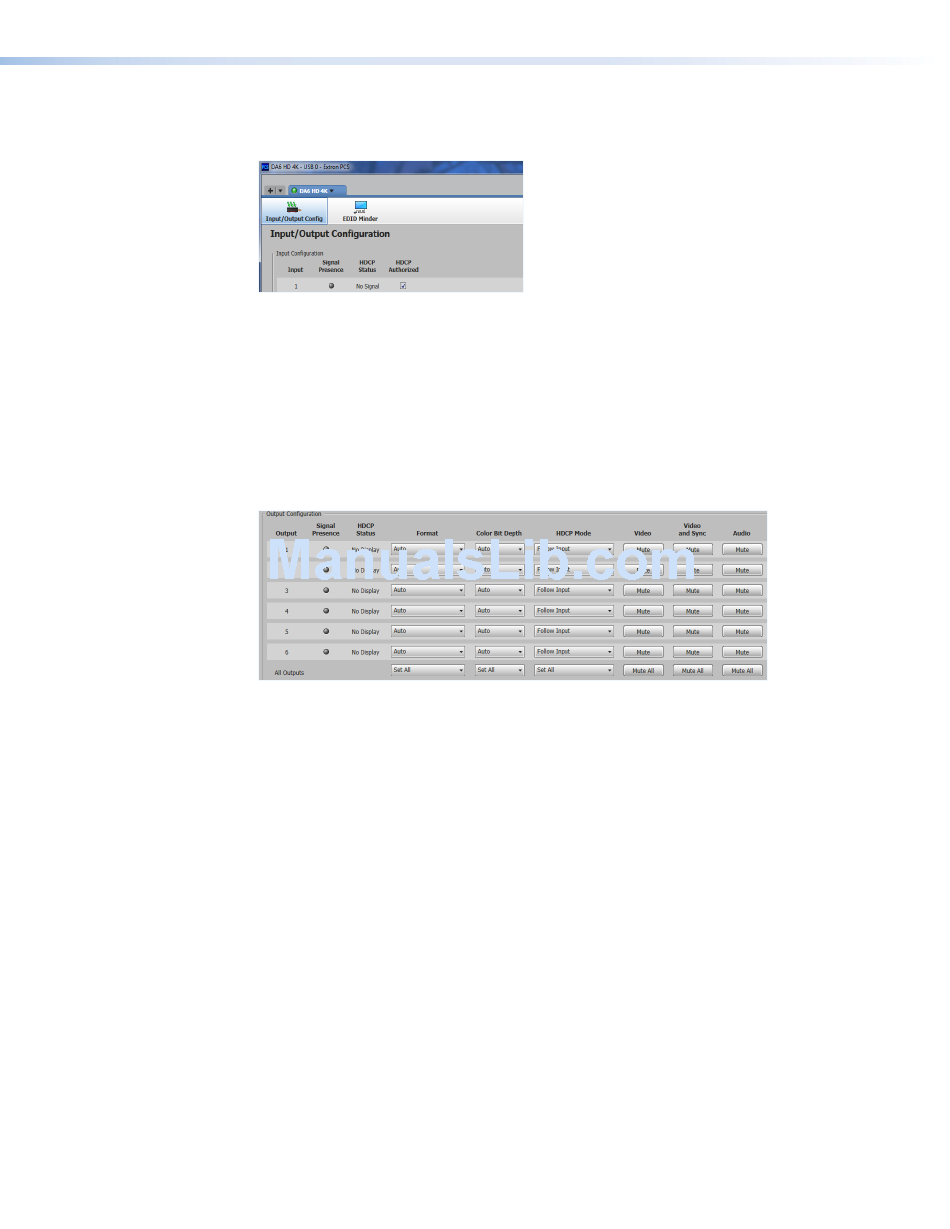

This menu allows the user to configure the active input and outputs (see figure 12).
Figure 12.
Input Configuration
Signal Presence — Connection status icon shows green when an active HDMI signal is
present.
HDCP Status — The HDMI input negotiates and authenticates HDCP with the source device
if the source requires HDCP encryption.
HDCP Authorized — Select this to turn the HDCP Authorized on (default) or off. When
disabled (off) the DA HD 4K devices do not display content that requires HDCP, and display a
green screen.
Figure 13.
Output Configuration
Signal Presence — Connection status icon shows green when an active HDMI signal is
present.
HDCP Status — Indicates whether the display connected to the output is HDCP compliant.
Format — Select this to set the HDMI output format. Choices are:
•
Auto — (based on sink EDID), default
• DVI RGB 444
• HDMI RGB 444 Full
•
HDMI RGB 444 Limited
•
HDMI YUV 444 Limited
• HDMI YUV 422 Limited
Color Bit Depth — Select this to set the color bit depth, either
HDCP Mode — When enabled, the HDCP Mode can be set to either follow the current input,
or always encrypt the output. Choices are:
•
Follow Input — Encrypts the output only when required by the selected input source.
•
Always Encrypt Output — Always encrypts the output, regardless of the HDCP status
of the input source.
•
Follow Input — Encrypts the output only when required by the input source. Use this
setting when DVI sink devices initially pass HDCP encrypted content, but intermittently
display a green HDCP notification screen after a power cycle or resuming from sleep
mode.
Input Configuration Menu
Output Configuration Menu
or
Auto
DA HD 4K Series • Configuration Software
Force 8-bit
27
