Front panel USB port
Use the mini Type B USB port on the front panel (see figure 4 below) to connect the
distribution amplifier to a host computer for updating firmware or to configure the unit with SIS
commands.
1.
Connect a USB A to mini B cable between the front panel USB Config port and a USB
port of the PC.
Mini Type B
CONFIG
DA6 HD 4K

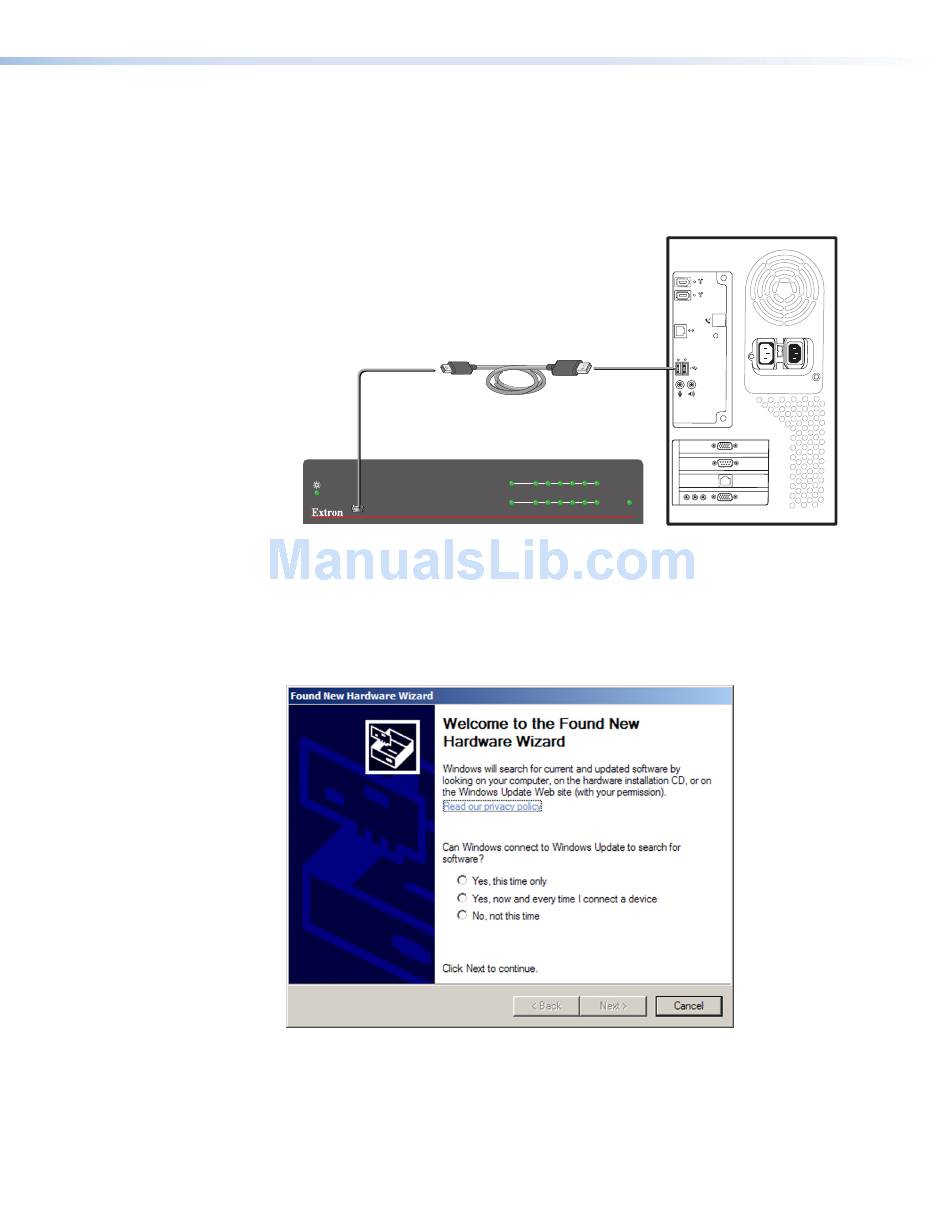

Figure 4.
Connecting a PC to the DA6 HD 4K Front Panel USB Port
2.
If this is the first time the distribution amplifier has been connected to the PC, the
Found New Hardware Wizard window opens. The first screen offers to connect to
Windows Update to search the web for the appropriate driver needed for the USB port
to communicate with the distribution amplifier. This is not necessary if the USB driver is
already on your PC.
Figure 5. Found New Hardware Wizard Welcome Screen
Type A
USB
USB
USB Cable
INPUT OUTPUTS
SIGNAL
1 2 3 4 5 6
EDID
HDCP
DA6 HD 4K
DISTRIBUTION AMPLIFIER
