Geometry

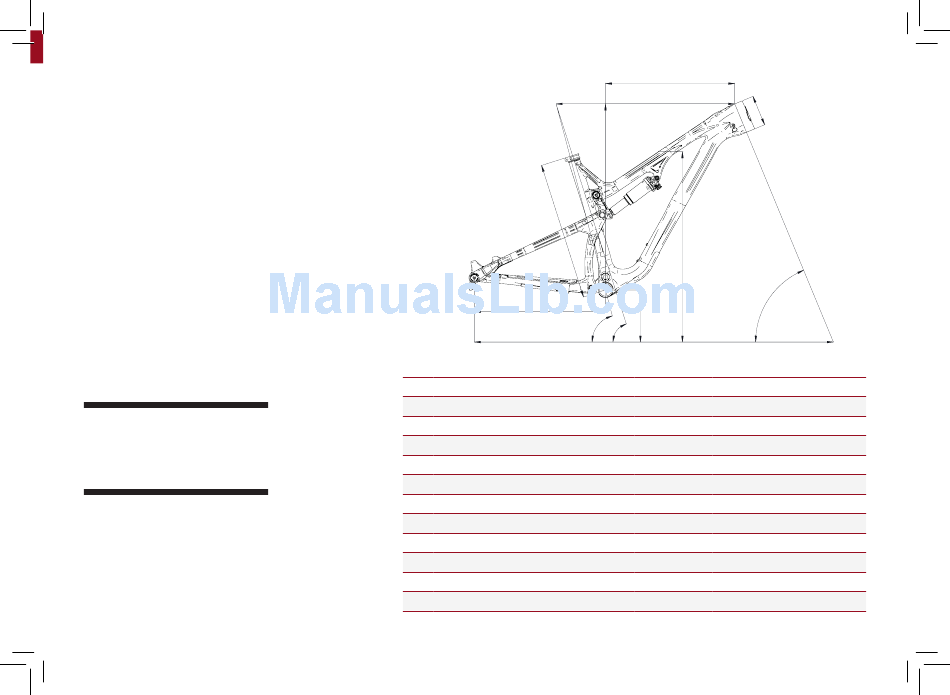

GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 561MM
FORK LENGTH AND 51MM FORK OFFSET.
Component spec NOTE
the Acv is designed around the use of
single chain ring. Use of a double or
triple ring set will not allow proper
clearance with the frame.
K
C
I
A
SMALL
A Wheel Base: 1146 mm/ 45.1"
B Top Tube Length: 573 mm/ 22.6"
C
Chain Stay Length: 438 mm/ 17.25"
D Head Tube Length: 94 mm/ 3.7"
E
Head Tube Angle: 66.25˚
F Reach: 394 mm/ 15.5"
G
Stack: 620 mm/ 24.4"
H BB Height: 334 mm/ 13.15"
I Seat Tube Angle (Effective): 73.8˚
J Seat Tube Angle (Actual): 71˚
K Seat Tube Length: 433 mm/ 17"
L Standover Height: 801 mm/ 31.55"
F
B
D
G
H L E
J
MEDIUM LARGE
1172 mm/ 46.1" 1199 mm/ 47.2"
599 mm/ 23.6" 624 mm/ 24.6"
438 mm/ 17.25" 438 mm/ 17.25"
102 mm/ 4" 114 mm/ 4.5"
66.25˚ 66.25˚
416 mm/ 16.4" 438 mm/ 17.25"
628 mm / 24.7" 640 mm/ 25.2"
334 mm/ 13.15" 334 mm/ 13.15"
73.8˚ 73.8˚
71˚ 71˚
458 mm/ 18" 484 mm/ 19"
805 mm/ 31.68" 810 mm/ 31.9"
I N T E N S E C Y C L E S
XLarge
1225 mm/ 48.2"
651 mm/ 25.6"
438 mm/ 17.25"
119 mm/ 4.7"
66.25˚
463 mm/ 18.2"
645 mm/ 25.4"
334 mm/ 13.15"
73.8˚
71˚
509 mm/ 20"
813 mm/ 32"
