Intense Cycles ACV User Manual page 9

1
C O N N E C T I N G T O P L I N K T O F R O N T T R I A N G L E //
A

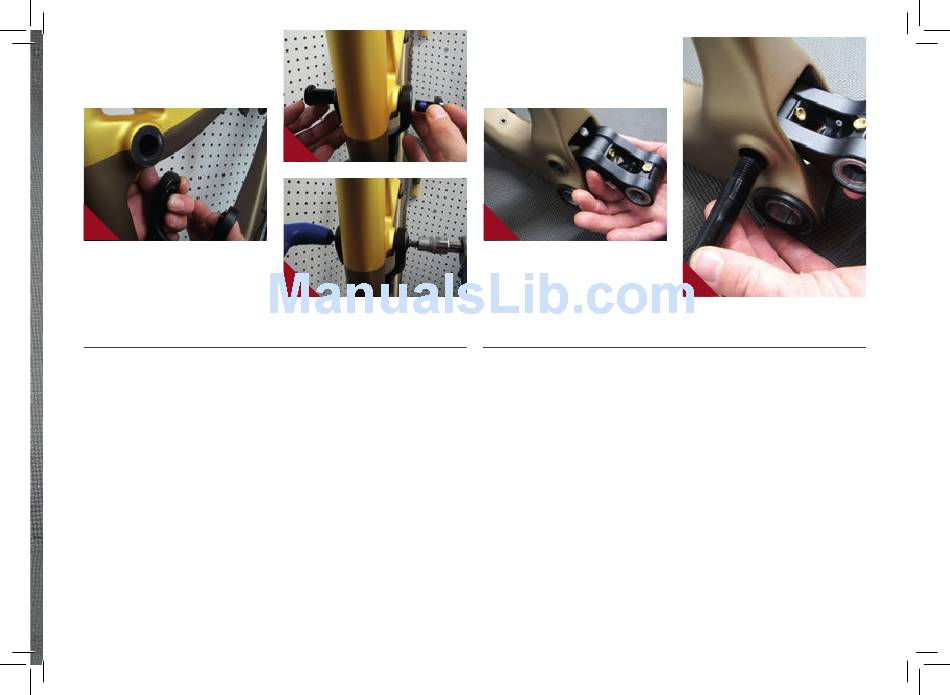

Holding top link (#130762) with
shock mount pointed forward, hold
upper spacers (#130789) against inside
of bearing race (IMAGE #1).
B
Match upper link to top tube, making
sure that spacers do not fall out.
2
3
C
Using upper pivot axle (#130780),
insert through non-drive side of top link
bearing and push through to drive side
bearing, making sure spacers do not fall
out (IMAGE #2). Install shoulder bolt
(#130785) into drive side of top link
pivot, and tighten to 20 NM or 175 in/
lbs (IMAGE #3).
4
C O N N E C T I N G B O X L I N K T O F R O N T T R I A N G L E //
A
Hold bearing caps (#130778) with
rounded ends facing outwards against
bearings on box link (#130764) (IMAGE
#4), (note box link orientation in image
#4, with rubber bumper facing upward
and rearward on box link).
I N T E N S E
5
B
Match link to front triangle and from
non drive side, insert greased main pivot
bolt (#130819) through the non-drive
side of frame (IMAGE #5).
C
Use 8mm HEX to install, then torque
pivot bolt (#130819) to 7 NM or 60 in/lbs.
C Y C L E S / / 9
