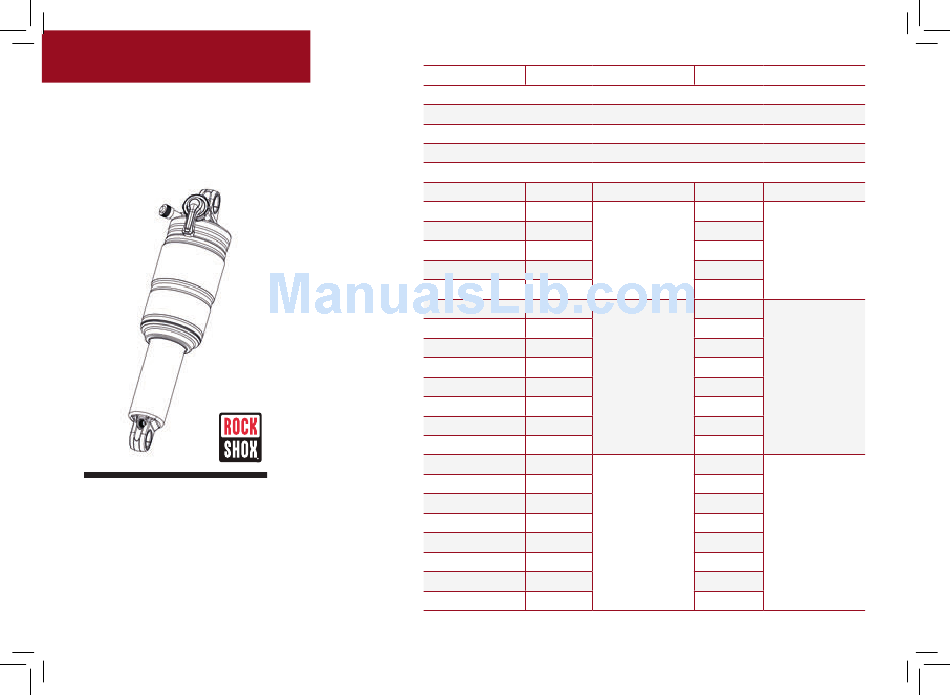

shock setup

rock shox monarch rt3 200x51mm
set up and tune
proper set up and tuning can
vary from shock to shock. Please
consult the rockshox manual
included with your bike for complete
information about set up, tuning
and general maintenance or visit
www.sram.com/rockshox/products
Travel 112 mm
Shock Stoke
Shock Sag
Fork Sag
SHOCK: ACV Pro Rock Shox Monarch RT3 200x51 mm DB2 MM S 320
SHOCK: ACV Foundation Rock Shox Monarch R 200x51 mm DB2 MM S 320
RIDER WEIGHT (LBS/KGS) SPRING (PSI) REBOUND (clicks out)
100 lbs / 45 kgs 89
110 lbs / 50 kgs
104
120 lbs / 54 kgs 120
130 lbs / 59 kgs
136
140 lbs / 63.5 kgs 151
150 lbs / 68 KGS
167
160 lbs / 73 kgs 182
170 lbs / 77 kgs 198
180 lbs / 82 kgs 213
190 lbs / 86 kgs 229
200 lbs / 91 kgs 244
210 lbs / 95 kgs 260
220 lbs / 100 kgs
275
230 lbs / 104 kgs 291
240 lbs / 109 kgs
306
250 lbs / 113 kgs 322
260 lbs / 118 kgs
337
270 lbs / 122 kgs 353
280 lbs / 127 kgs
368
290 lbs / 131.5 kgs 384
300 lbs / 136 kgs 399
I N T E N S E
125 mm
51 mm
20% when sitting on the bike
25-30% when sitting on the bike
SPRING (PSI) REBOUND (clicks out)
99
114
2 to 3 130 2 to 3
146
161
177
192
208
223
3 to 4 3 to 4
239
254
270
285
301
316
332
347
5 to 6 5 to 6
363
378
394
409
C Y C L E S / / 1 5
