C O N N E C T I N G R E A R T R I A N G L E
T O B O X L I N K //
A

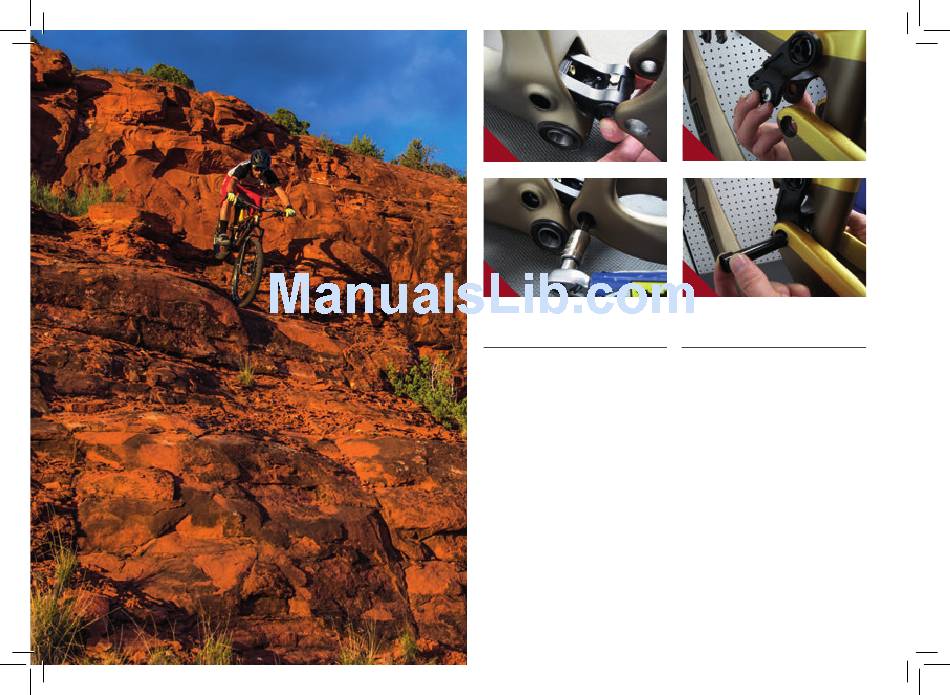

Follow previous step to connect rear
triangle to box link (IMAGES #6 & 7).
B
Use 8mm HEX to install, then torque
pivot bolt (#130791) to 7 NM or 60 in/lbs.
8
9
C O N N E C T I N G R E A R T R I A N G L E
T O T O P L I N K //
A
Hold spacers (#130765) with squared
edges against the bearing and the rounded
edges facing outward (IMAGE #8), Swing
the seat stays up and align with the lower
spacers. From the non drive side of top
link, install greased pivot bolt (#130791)
(IMAGE #9).
B
Use an 8mm HEX to install. Torque
main pivot bolt (#130791) to 7 NM or
60 in/lbs.
