Intense Cycles ACV User Manual page 11

10
11

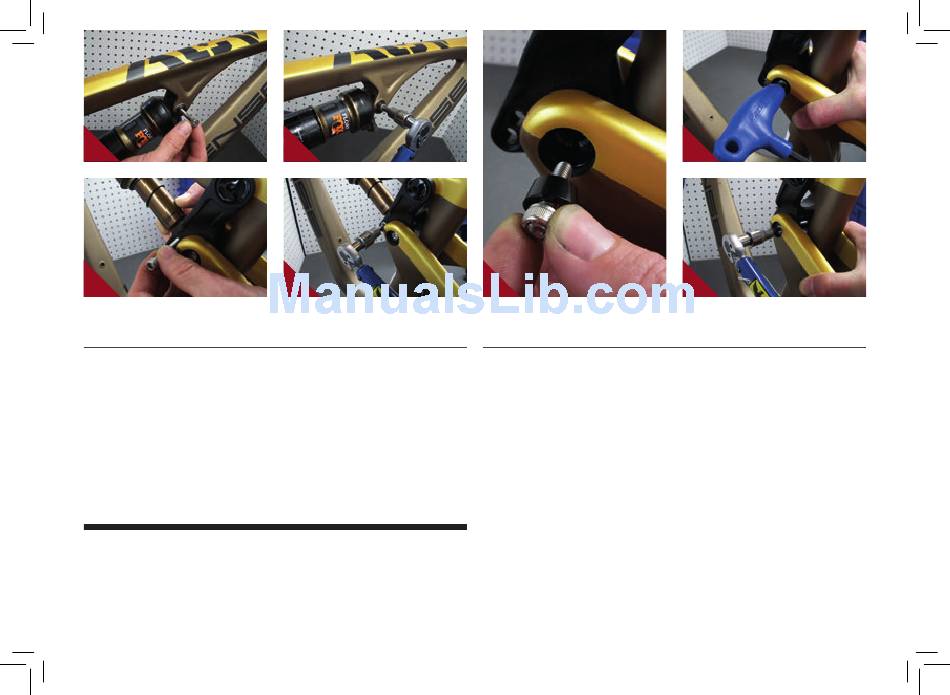

I N S TA L L I N G R E A R S H O C K //
A
Holding the rear shock in one hand, match the forward end to the foward shock
mount on the frame and install greased M6x40mm bolt (#410053) through drive side
of frame (IMAGE #10). Do not tighten.
B
Match rear end of shock to desired travel setting (see below) on upper link and
install greased M6x45mm bolt (#410054) through non-drive side of link (IMAGE #11).
C
Torque shock bolts (#410053 & #410054) to 7 NM or 60 in/lbs (IMAGES #12 & 13).
adjustable travel NOTE
the top link of the Acv features dual mounting positions. The Upper shock mounting
hole on top link is for LONG travel, the lower hole is for SHORT travel. for more
information see the set up guide on page 14.
12
13 14
T I G H T E N I N G S E AT S TAY S T O T O P L I N K //
A
Grease and install adjuster cone
(#130807) into head of main pivot bolt
(#130791) and greased M6x22mm bolt
(#410009) through the adjuster cone
into the main pivot bolt (IMAGE #14).
I N T E N S E
15
16
B
Using hand pressure, squeeze the top
of seat stay together at the lower top
link location to eliminate side to side
play (IMAGE #15) then use a 5mm HEX
to make snug.
C
Torque M6x22mm (#410009) to 14 NM
or 125 in/lbs (IMAGE #16).
C Y C L E S / / 1 1
