getting to
know your
tazer
W A R N I N G
Use the supplied key to remove the battery from the
frame to perform battery swap or for charging. Do
not move or alter the battery frame mounts from their
factory position in the downtube as this could result
in subpar performance, may lead to battery and or
frame damage and is not covered under warranty.
Please contact Intense Cycles Tech Center if you
have any questions relating to the battery mounts.
1 0 // t a z e r u s e r m a n u a l
Frame Features //
• Rear Travel: 155mm / 6.1 Chainstay, Seatstay and
inches with metric 185 x 55 Seattube protection
stroke shock • Molded: Rear Fender
• 29" Front Wheel size, 27.5" x • Tapered Head Tube
2.80" Plus Rear Wheel size • Replaceable Grease Zerk on
• Progressive Shock Curve back of Lower Link
• Integrated 148 x 12mm • Max Bearings and Dedicated
dropouts Frame Hardware
• Internal Cable Routing • Molded Skid plate
• Flack Guard: Downtube, • Removable Battery
Component Spec //
• Fork: Accepts 1.125" straight • Seat post: 31.6mm
steer or 1.125"/1.5" tapered • Headset: Zero Stack 49mm
steer, 160mm travel/ 6.3 Upper/ 56mm Lower
inches, 567mm Axle to Crown, • Rear Axle: BOOST 148 x 12mm
51mm Offset • Brake Mount: Post Mount for
• Shock: 185mm x 55mm Metric 200mm rotor
Shock, Trunnion with 20mm x • Shimano E8000 Motor
8mm Reducers on shock • Shimano E8010 Battery

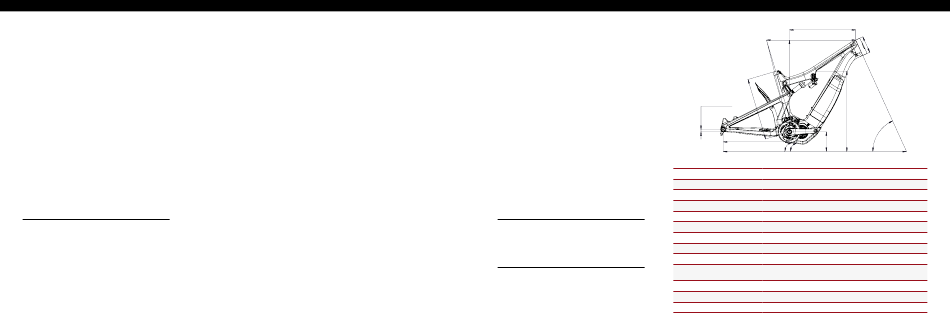

Geometry //

G E O M E T R Y N O T E
Geometry taken at top out with 567mm axle to
crown length and 51mm fork offset.
C o m p o n e n t s p e c N O T E
The Tazer is designed around the use of a single
chain ring only. Use of a double or triple ring set will
not allow proper clearance with the frame.
F
B
G
K
BB Drop
C
H L
A
I J
SMALL MEDIUM
A Wheel Base: 1199.4 mm/ 47.2" 1230 mm/ 48.4"
Top Tube Length: 577 mm/ 22.7" 605 mm/ 23.8"
B
Chain Stay Length: 450 mm/ 17.7" 450 mm/ 17.7"
C
D Head Tube Length: 100 mm/ 3.94" 115 mm/ 4.5"
E Head Tube Angle: 64.9˚ 64.9˚
Reach: 425 mm/ 16.7" 450 mm/ 17.7"
F
G Stack: 610 mm/ 24" 623 mm / 24.54"
H BB Height: 347 mm/ 13.65" 347 mm/ 13.65"
BB Drop 12 mm/ 0.47" 12 mm/ 0.47"
Seat Tube Angle
I 75.4˚ 75.4˚
(Effective):
Seat Tube Angle (Actual): 72.9˚ 72.9˚
J
K Seat Tube Length: 394 mm/ 15.5" 419 mm/ 16.5"
L Standover Height: 806 mm/ 31.7" 814.1 mm/ 32"
I N T E N S E C Y C L E S
D
E
LARGE
1260 mm/ 49.6"
633.4 mm/ 25"
450 mm/ 17.7"
125 mm/ 4.9"
64.9˚
475 mm/ 18.7"
632 mm/ 24.9"
347 mm/ 13.65"
12 mm/ 0.47"
75.4˚
72.9˚
445 mm/ 17.5"
822 mm/ 32.4"
// 1 1
