Geometry - Intense Cycles M9 PRO Owner's Manual

M9 Geo
The M9 is the most adjustable bike on the market today. We have designed the
bike around what our riders, pro racers and engineers feel are the optimal
settings with everything set at a baseline. That being said, with different tires
and forks your geometry will vary. We have come up with these starting point
geometries based on a 2.35 Maxxis tire and Fox 40 forks with an axle to crown of
575mm
PAGE 9

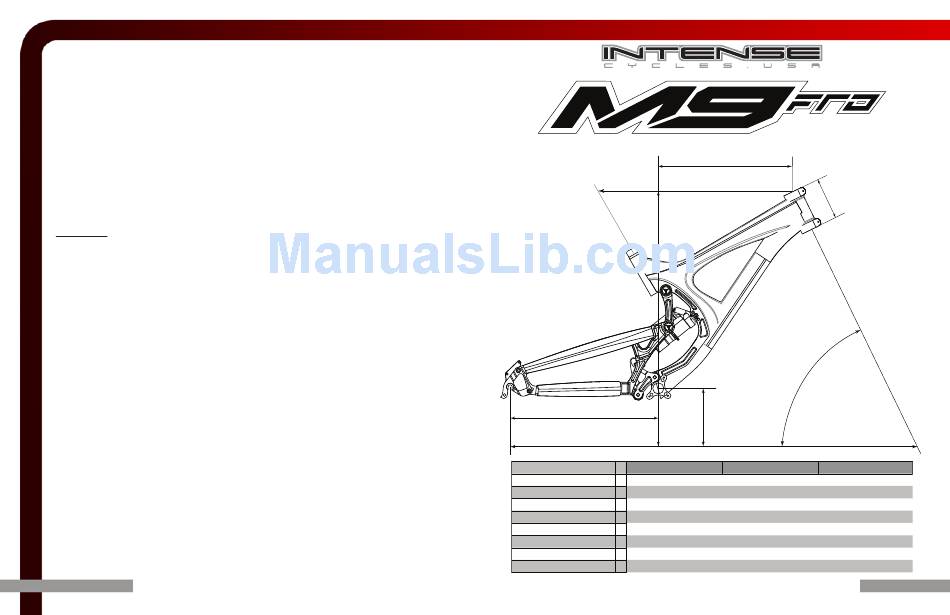

F
B
G
C
H
A
M9-FRO
SMALL
A
wheel base
45.5"-46.5"
B
toptube 22"
C
chainstay 17.25"/17.5"/17.75"
D
head tube
4.5" w/ Upper Pinch Bolt
E
head angle 64° (+/-.5/1.0/1.5)
F
reach 15.5"
G
stack
23"
H
BB height 14.2"-14.5" w/ ISCG 05
D
PAGE 6
E
MEDIUM LARGE
46.5"-47.5" 47.5"-48.5"
23" 24"
17.25"/17.5"/17.75" 17.25"/17.5"/17.75"
5" w/ Upper Pinch Bolt 5" w/ Upper Pinch Bolt
64° (+/-.5/1.0/1.5) 64° (+/-.5/1.0/1.5)
16.25" 17.25"
23.5" 23.5"
14.2"-14.5" w/ ISCG 05 14.2"-14.5" w/ ISCG 05
PAGE 10
