Frame Features / Component Spec; Geometry - Intense Cycles TRACER CARBON User Manual

frame
features /
spec
4 / / t r a c e r c a r b o n u s e r m a n u a l
Frame Features //
• Travel: 6.5" (165mm)
• 27.5" Wheel size
• Integrated BOOST 148 x 12 dropouts
• 6.15 lbs / 2,790 grams = Standard frame w/ alloy link, no shock
• 5.7 lbs / 2,568 grams = SL Super Light frame w/ carbon link, no shock
• INTERNAL CABLE ROUTING
• Internal Seat Tube Cable Routing for dropper posts
• Monocoque front triangle
• FLack GuaRD Downtube and Chainstay protection
• Tapered Head Tube
• Angular Contact/Collet Bearing System with replaceable Grease Zerks
Component Spec //
• Fork – 1.5" tapered steer, 165mm Travel, 552mm lower leg length, 42mm offset
• Shock – 216mm x 63.5mm (8.5" x 2.5"), 22mm x 6mm and 22mm x 8mm reducers
• Seat post – 31.6mm
• Headset – Cane Creek, 40, Alloy Cartridge (www.canecreek.com)
• Bottom bracket - PF92
• Rear Axle – BOOST 148 x 12 T/A
• Brake Mount – post mount - direct 180mm
• Crank set - BOOST 148 Compatible - single ring only
• Rear Wheel - BOOST 148 Compatible

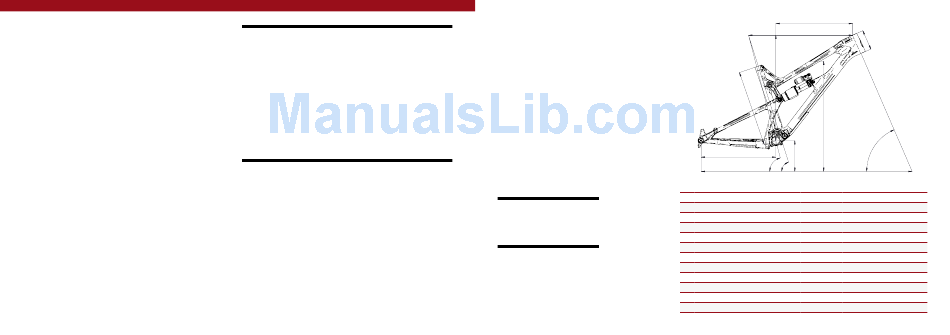

Geometry

GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 552MM
FORK LENGTH AND 42MM FORK OFFSET.
Component spec NOTE
the Tracer carbon is designed around
the use of a single chain ring. Use of a
double or triple ring set will not allow
proper clearance with the frame.
F
B
G
K
C
H L
I J
A
SMALL MEDIUM LARGE
A Wheel Base: 1154 mm/ 45.4" 1181 mm/ 46.5" 1207 mm/ 47.5"
B Top Tube Length: 571 mm/ 22.5" 597 mm/ 23.5" 622 mm/ 24.5"
C Chain Stay Length: 432 mm/ 17" 432 mm/ 17" 432 mm/ 17"
D Head Tube Length: 102 mm/ 4" 115 mm/ 4.5" 119 mm/ 4.7"
E Head Tube Angle: 65.5˚ 65.5˚ 65.5˚
F Reach: 414 mm/ 16.3" 436 mm/ 17.2" 460 mm/ 18.1"
G Stack: 589 mm/ 23.2" 600 mm / 23.6" 604 mm/ 23.8"
H BB Height: 343 mm/ 13.5" 343 mm/ 13.5" 343 mm/ 13.5"
I Seat Tube Angle (Effective): 75˚ 75˚ 75˚
J Seat Tube Angle (Actual): 71˚ 71˚ 71˚
K Seat Tube Length: 396 mm/ 15.6" 434 mm/ 17" 459 mm/ 18"
L Standover Height: 795 mm/ 31.3" 801 mm/ 31.6" 805 mm/ 31.7"
I N T E N S E C Y C L E S
D
E
XLARGE
1235 mm/ 48.6"
649 mm/ 25.5"
432 mm/ 17"
130 mm/ 5.1"
65.5˚
483 mm/ 19"
614 mm/ 24.2"
343 mm/ 13.5"
75˚
71˚
485 mm/ 19"
813 mm/ 32"
/ / 5
