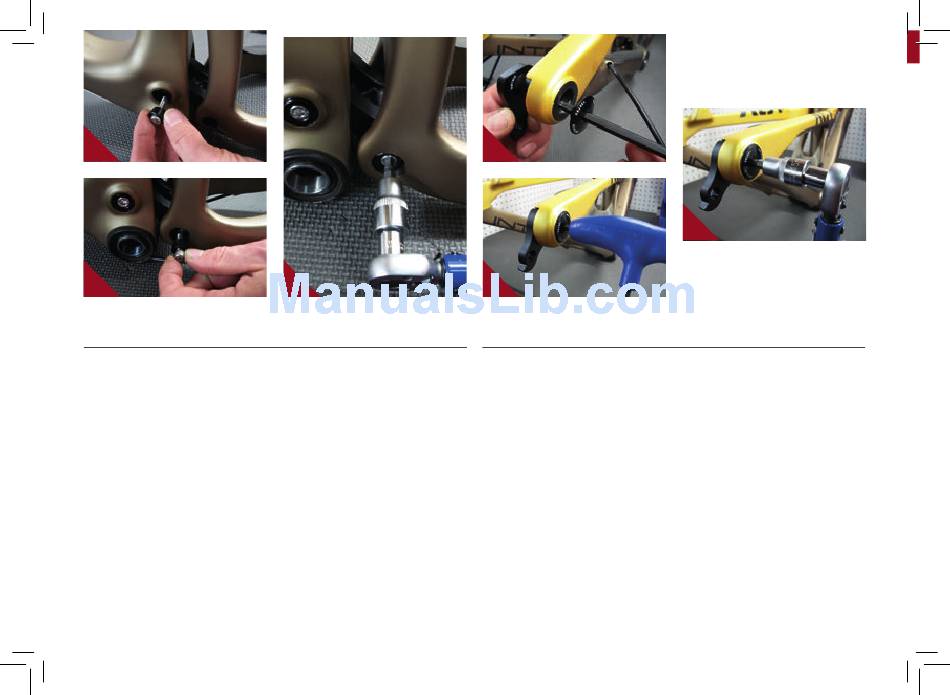

INSTALLING ADJUSTER CONES ON LOWER LINK //
A
Grease and install adjuster cone
(#130807) into head of main pivot
bolt (#130819 / #130791) and greased
M6x22mm bolt (#410009) through the
adjuster cone into the main pivot bolt
(IMAGES #17 & 18).
1 2 / / A C V u s e r
19
B
Torque M6x22mm (#410009) to 14 NM
or 125 in/lbs (IMAGE #19).
m a n u a l
20
21
INSTALLING DERAILLEUR HANGER //
A
Grease outer edges of derailleur hanger
(#130790) and loctite derailleur bolt
(#130792) (IMAGE #20).
B
Insert hanger (#130790) into back
of frame opening and match derailleur
bolt (#130792) from outside of frame,
threading bolt into hanger (IMAGE #21).
22
C
Torque derailleur bolt (#130792) to
11NM or 100 in/lbs (IMAGE #22).
