Summary of Contents for Intense Cycles carbine 275

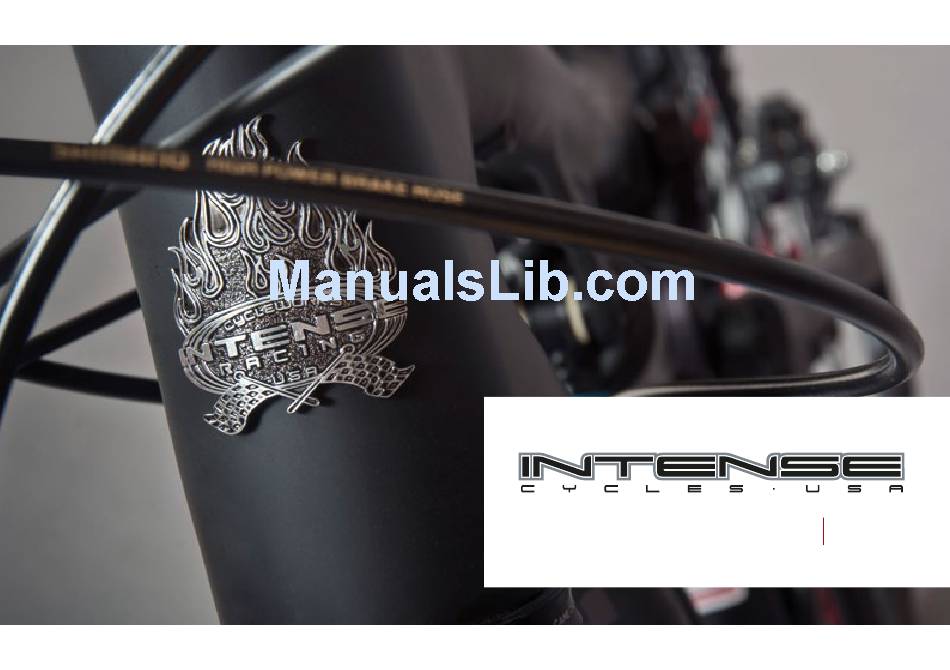

  • Page 1 275...
  • Page 2 Our team of designers, engineers and product experts are focused on one thing every For the trail, all mountain or endure riders, the Carbine 275 has the perfect blend of day: your experience on the bike. We build bikes that are as thrilling to look at as they stability and travel options for any type of terrain.

  • Page 3: Table Of Contents

    frame features Geometry exploded view and b.o.m. Assembly torque chart setup maintenance registration I N T E N S E C Y C L E S...

  • Page 4: Frame Features

    frame frame Features // • Adjustable Travel – 5.5” or 6” (135mm or 150mm) • Patented VPP Suspension Technology features / • 27.5 Wheel Size • Available in 26” configuration • G1 Replaceable Drop Out System • 5.5lbs Frame weight (Medium Naked) •...

  • Page 5: Geometry

    Geometry SMALL MEDIUM LARGE Wheel Base 1097 mm / 43.2” 1123 mm / 44.2” 1148 mm / 45.2” Top Tube Length 559 mm / 22” 584 mm / 23” 610 mm / 24” Chain Stay Length 432 mm / 17” 432 mm / 17”...

  • Page 6: Exploded View And B.o.m

    exploded view and b.o.m. c a r b i n e 2 7 5 u s e r M a n u a l...
  • Page 7 ITEM PART ITEM PART ITEM DESCRIPTION QTY. TORQUE SPEC. ITEM DESCRIPTION QTY. TORQUE SPEC. NUMBER NUMBER Derailler Mount Dropout Nut Steel 130209 For Single Chain Ring Setup 400012 Cover 9.9 x 10.5L Blk UCP Box Link 130770 Forged Top Link 5 Nm / Zerk Fitting 401011...

  • Page 8: Assembly

    Assembly P R E F A C E // Service and maintenance on an Intense bicycle requires special tools, abilities and knowledge of working on bicycles. It is always recommended to use an authorized Intense dealer for service and maintenance. Always wear eye protection. It is critical to use the proper tools, loctite, grease and torque specs during assembly.
  • Page 9 C O N N E C T I N G T O P L I N K T O F R O N T T R I A N G L E // C O N N E C T I N G B O X L I N K T O F R O N T T R I A N G L E // Holding top link (#130771) with shock Using upper pivot axle (#130780), Hold bearing cap (#130778) with...
  • Page 10 C O N N E C T I N G R E A R T R I A N G L E T O C O N N E C T I N G R E A R T R I A N G L E T O I N S TA L L I N G R E A R S H O C K // B O X L I N K // T O P L I N K //...
  • Page 11 I NSTA L L I N G A D J U S T E R C O N E S // I NSTAL L I N G DERAI L L E U R H A N G E R // Grease and insert cone adjuster Tighten M6x22mm bolt (#410009) with Locate the right and left G1 dropouts.

  • Page 12: Torque Chart

    20 Nm / 175 in-lbs Achieving proper torque is vital to ensuring the safe performance and function of the carbine 275 frame. Failure to do so could result in sub- optimal performance of your frame as well as premature wear and tear of individual parts.

  • Page 13: Setup

    set up seatpost adjustable travel make sure to insert seat post at least upper mount: 150mm 4” into the main frame. Anything less lower mount: 135mm than this amount could cause damage to the frame or even failure. I N T E N S E C Y C L E S...

  • Page 14: Shock Setup

    Travel 135 mm 150 mm shock setup Shock Stoke 57 mm Shock Sag 20% when sitting on the bike x-fusion, 02 rl, 200x57mm Fork Sag 25-30% when sitting on the bike SHOCK X-Fusion, 02 RL, 200x57 mm RIDER WEIGHT(LBS/KGS) SPRING (PSI) REBOUND (clicks out) SPRING (PSI) REBOUND (clicks out)
  • Page 15 I N T E N S E C Y C L E S...

  • Page 16: Maintenance

    Look for cracks, dents or loose fibers. If you discover damage in any degree it’s best to have your frame inspected by a qualified Intense Cycles dealer. Any direct impact to the frame can cause serious structural damage. • Use high grade waterproof grease on seat post, BB and head set bearing contact areas with the carbon.

  • Page 17: Maintenance Schedule

    maintenance Schedule* 500 Miles or 2000 Miles or 6 4000 Miles or Action Every Ride 1 Month Months 1 Year Tires Check air pressure, inspect tread and sidewalls for tears and punctures Chain Brush off and lubricate Brakes Squeeze brakes and confirm function General Clean complete bike of mud and debris Headset...
  • Page 18 c a r b i n e 2 7 5 u s e r M a n u a l...

  • Page 19: Registration

    registration W W W. I N T E N S E C Y C L E S . C O M / WA R R A N T Y- C A R D / contact customer service cs@intensecycles.com 951-296-9596 I N T E N S E C Y C L E S...
  • Page 20 w w w . I N T E N S e C Y C L E S . c o m p h o n e : (9 5 1) -2 9 6 - 9 5 9 6 C u s t o m e r S e r v i c e : c s @ i n t e n s e c y c l e s . c o m G e n e r a l I n f o : i n f o @ i n t e n s e c y c l e s .
