Geometry

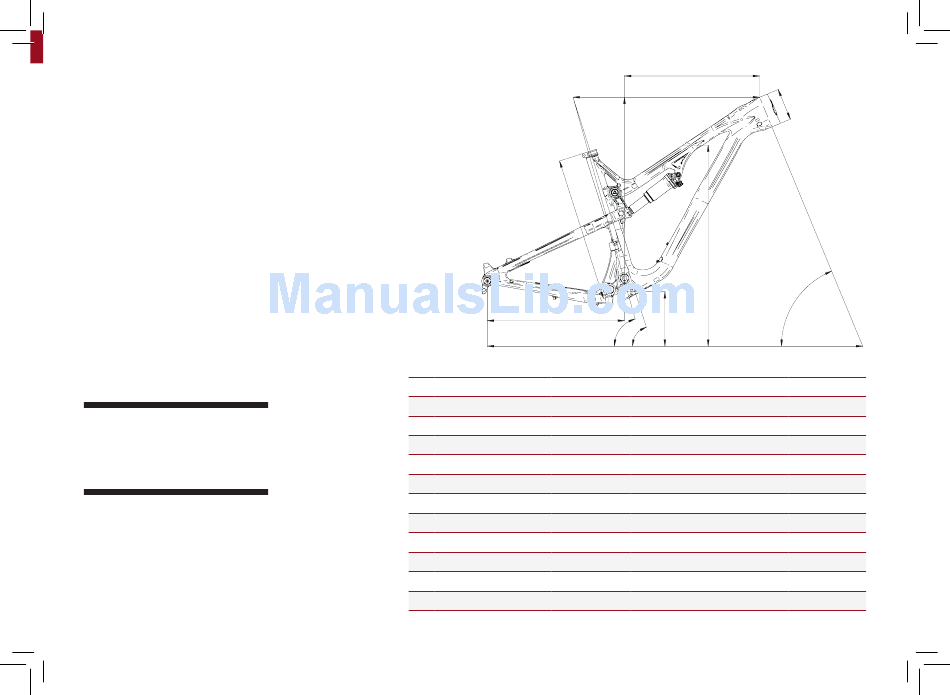

GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 538MM
FORK LENGTH AND 51MM FORK OFFSET.
Component spec NOTE
the PRIMER 29 is designed around the
use of single or double chain ring
sets only. Use of a triple ring set will
not allow proper clearance with the
frame.
K
C
A
SMALL
A Wheel Base: 1130 mm/ 44.5"
B Top Tube Length: 572 mm/ 22.5"
C Chain Stay Length: 438 mm/ 17.25"
D
Head Tube Length: 94 mm/ 3.7"
E Head Tube Angle: 67.5˚
F
Reach: 408 mm/ 16.1"
G Stack: 609 mm/ 24"
H
BB Height: 337 mm/ 13.25"
I Seat Tube Angle (Effective): 75˚
J
Seat Tube Angle (Actual): 72.3˚
K Seat Tube Length: 432 mm/ 17"
L Standover Height: 800 mm/ 31.5"
F
B
G
H L
I J
MEDIUM LARGE
1156 mm/ 45.5" 1181 mm/ 46.5"
597 mm/ 23.5" 622 mm/ 24.5"
438 mm/ 17.25" 438 mm/ 17.25"
102 mm/ 4" 114 mm/ 4.5"
67.5˚ 67.5˚
431 mm/ 17" 453 mm/ 17.8"
616 mm / 24.25" 628 mm/ 24.7"
337 mm/ 13.25" 337 mm/ 13.25"
75˚ 75˚
72.3˚ 72.3˚
457 mm/ 18" 483 mm/ 19"
803 mm/ 31.6" 809 mm/ 31.8"
I N T E N S E C Y C L E S
D
E
XLarge
1207 mm/ 47.5"
648 mm/ 25.5"
438 mm/ 17.25"
119 mm/ 4.7"
67.5˚
477 mm/ 18.8"
632 mm/ 24.9"
337 mm/ 13.25"
75˚
72.3˚
508 mm/ 20"
811 mm/ 31.9"
