Geometry

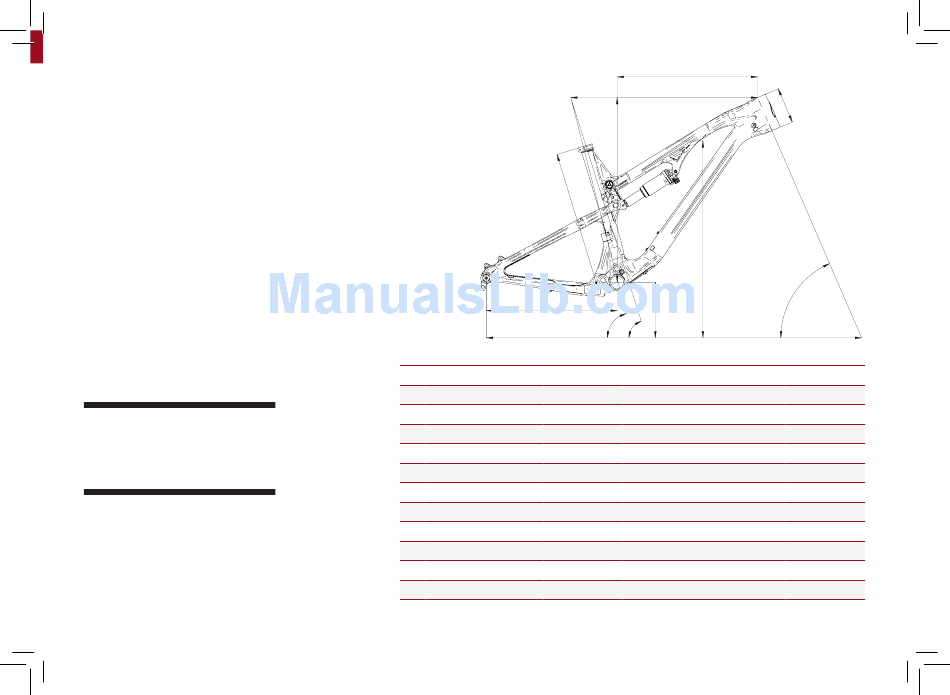

GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 542MM
FORK LENGTH AND 42MM FORK OFFSET.
Component spec NOTE
the recluse is designed around the use
of single or double chain ring sets only.
Use of a triple ring set will not allow
proper clearance with the frame.
K
C
A
SMALL
A Wheel Base: 1142 mm/ 45"
B
Top Tube Length: 575 mm/ 22.6"
C Chain Stay Length: 419 mm/ 16.5"
D
Head Tube Length: 102 mm/ 4"
E Head Tube Angle: 66˚
F
Reach: 417 mm/ 16.4"
G Stack: 587 mm/ 23.1"
H
BB Height: 344 mm/ 13.5"
I Seat Tube Angle (Effective): 75˚
J Seat Tube Angle (Actual): 72˚
K Seat Tube Length: 376 mm/ 14.8"
L Standover Height: 792 mm/ 31.2"
F
B
G
H L
I J
MEDIUM LARGE
1169 mm/ 46" 1196 mm/ 47"
601 mm/ 23.6" 626 mm/ 24.6"
419 mm/ 16.5" 419 mm/ 16.5"
115 mm/ 4.5" 127 mm/ 5"
66˚ 66˚
438 mm/ 17.3" 460 mm/ 18.1"
599 mm / 23.6" 611 mm/ 24"
344 mm/ 13.5" 344 mm/ 13.5"
75˚ 75˚
72˚ 72˚
446 mm/ 17.6" 484 mm/ 19"
800 mm/ 31.5" 807 mm/ 31.8"
I N T E N S E C Y C L E S
D
E
XLARGE
1222 mm/ 48"
652 mm/ 25.6"
419 mm/ 16.5"
127 mm/ 5"
66˚
486 mm/ 19.2"
611 mm/ 24"
344 mm/ 13.5"
75˚
72˚
515 mm/ 20.3"
807 mm/ 31.8"
