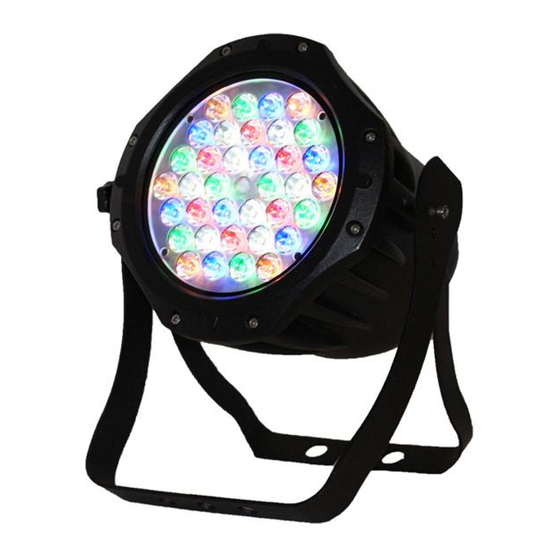

SGM Idea Par LED Zoom RGB Instruction Manual

Led lighting systems
Hide thumbs

Advertisement

GB
Sommario
INTRODUCTION:...............................................................................................................................................2
DESCRIPTION OF THE DEVICE.................................................................................................................2
Features.................................................................................................................................................................. 2
OVERVIEW ...........................................................................................................................................................3
SAFETY INSTRUCTIONS ...............................................................................................................................3
GENERAL GUIDELINES..................................................................................................................................4
INSTALLATION INSTRUCTIONS ..............................................................................................................5
Mounting the device........................................................................................................................................... 5
Overhead rigging................................................................................................................................................. 6
DMX-512 control connection................................................................. Errore. Il segnalibro non è definito.
Control Board ....................................................................................................................................................... 8
Main functions: .................................................................................................................................................... 9
INSTRUCTIONS ON USE: ...........................................................................................................................15
CLEANING AND MAINTENANCE.............................................................................................................17
TECHNICAL SPECIFICATIONS ................................................................................................................18
Idea Par Led Zoom RGB
XM368-V1.2 -B
1

Advertisement

loading

  Summary of Contents for SGM Idea Par LED Zoom RGB

  • Page 1: Table Of Contents

    DMX-512 control connection..............Errore. Il segnalibro non è definito. Control Board ............................... 8 Main functions: ..............................9 INSTRUCTIONS ON USE: ...........................15 INSTRUCTIONS FOR INSTALLING THE BARN-DOOR AND FROST FILTER ....17 CLEANING AND MAINTENANCE......................17 TECHNICAL SPECIFICATIONS ........................18 Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 2: Introduction

    DMX channel: 8 channels Strobe-effect with 1-18 flashes per second Zoom: 13°~55° linear zoom Stepless RGB colour changing Programmable color-change speed and strobe effect 4digit LED display Software-upload by optional accessory via DMX line XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 3: Overview

    The electric connection must carry out by qualified person. The device shall only be used with rate voltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 4: General Guidelines

    If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc. XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 5: Installation Instructions

    The electric connection must only be carried out by a qualified electrician. Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s weight. Connect the fixture to the mains with the power plug. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 6: Overhead Rigging

    Pin 1 Address 13 Address 7 Address 1 Please note: to ensure maximal stability, when the voltage is 120V, only six devices may be connected XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 7 In the case of the led lighting, which is 8 channels fixture when you select the standard channel mode, you should set the starting address of the first unit to 1, the second unit to 9(8 + 1), the third unit to 17 (8+ 9), and so on. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 8: Control Board

    XXX(000~255) BLUE XXX(000~255) MACO Edit the channels of each XXX(000~255) EDIT PROG scene XXX(000~255) SC01 STRB XXX(000~255) ~ SC48 DIMM XXX(000~255) ZOOM> XXX(000~255) FADE Adjust fade speed CEDT ON/OFF Edit program via controller XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 9: Main Functions

    Press [UP] to select “ON” if you wish to enable this function or [DOWN] to select “OFF” if you don’t. Press [MENU] to confirm. Press [ENTER] in order to return to the main menu. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 10 Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to “OFF” if you don’t. Press [ENTER] to confirm or Press [MENU] to return to the main menu. XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 11: Main Menu

    Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to “OFF” if you don’t. Press [ENTER] to confirm or Press [MENU] to return to the main menu. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 12: Software Version

    Press [UP] to select “ON” if you wish to enable this function or press [DOWN] button to “OFF” if you don’t. Press [ENTER] to confirm or Press [MENU] to return to the main menu. XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 13 10. Repeat step 3-8 to edit and other scenes, you can edit and save a maximum of 48 scenes. 11. Press [MENU] to exit. The number of steps can be defined under “STEP” and the scenes can be called up under “RUN”. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 14 13. Repeat steps 5-11 until all desired scenes are downloaded. 14. Press [MENU] to exit. The number of steps can be defined under “STEP” and the scenes can be called up under “RUN” XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 15: Instructions On Use

    Color macro 24 192-199 Color macro 25 200-207 Color macro 26 208-215 Color macro 27 216-223 Color macro 28 224-231 Color macro 29 232-239 Color macro 30 240-247 Color macro 31 248-255 Color macro 32 Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 16 0-255 Dimming( 0-Black , 255- 100% ) Speed from slow to fast /when running internal programs Speed from slow to fast /when running gradient effect Zoom: 0-255 Continuous adjustment from far to near XM368-V1.2 -B Idea Par Led Zoom RGB...
  • Page 17: Instructions For Installing The Barn-Door And Frost Filter

    A detailed electric check by approved electrical engineer each three month, make sure that the circuit contacts are in good condition, prevent the poor contact of circuit from overheating. Should you need any spare parts, please order genuine parts from your local dealer. Idea Par Led Zoom RGB XM368-V1.2 -B...
  • Page 18: Technical Specifications

    Net weight: 7 KGS Gross weight: 10KGS(carton packing) 75.5 KGS(flight case packing/6pcs) Remark: errors and omissions for every information given in this manual except. All information is subject to change without prior notice. XM368-V1.2 -B Idea Par Led Zoom RGB...
