- Page 1 USER MANUAL Q-S E R I E S Q-2 (P O I) Q-2 W H I T E (P O I)
- Page 2 Q-2 SERIES USER MANUAL REV. C © 2018 SGM Light A/S ® . The information in this document is subject to change without notice. SGM and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss, or any other loss occasioned by the use of, inability to use, or reliance on the information contained in this manual.
-
Page 3: Table Of Contents
Display ............................9 Connecting to a DMX control device ..................10 Configuring the device for DMX control ..................10 Full Color Calibration and Color Temperature Correction (Q-2 RGBW only) ........11 Setting a static color manually (Q-2 RGBW only) .................11 Using standalone operation ......................11 Fixture properties ........................12... -
Page 4: Safety Information
Read the following safety precautions carefully before unpacking, installing, powering, or operating the device. SGM luminaries are intended for professional use only. They are not suitable for household use. Les luminaires SGM sont impropre à l’usage domestique. Uniquement à usage professionnel. -
Page 5: Overview

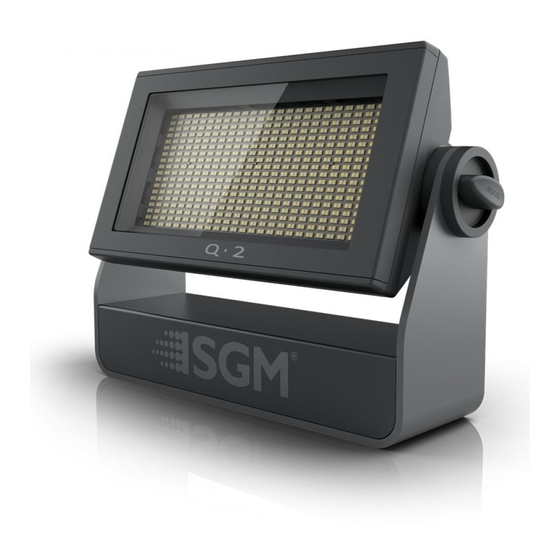

Overview The Q-2 Series are an IP65 / IP66-rated RGBW LED wash light with a small footprint and high output, designed for multiple applications, including when wireless operation is essential (POI only). Q-2 Series features: • A flood and strobe light, weighing only 6 kg/13.2 lbs. -
Page 6: Preparing For Installation
Installing / rigging the Q-2 Series The Q-2 may be installed in any orientation, on the ceiling or on a wall surface. When installed horizontally with a downward beam-angle, water, moist, or grime can potentially pool in the fan wells. Under normal operation the moisture will evaporate. - Page 7 Never use the yoke for secondary attachment. Q-2 Mounting bracket The standard Q-2 includes a mounting bracket with fasteners that can be attached to the fixture. The four rubber push-in bumpers prevent the fixture from sliding while operating, and protect delicate surfaces from scratching.
-
Page 8: Tilt Lock
See page 17 to know more about the tilt lock in Q-2 POI. Connecting AC power The Q-2 Series can operate on any 100–277 V, 50/60 Hz AC mains power supply, and it draws approximately 1,2A at full power (230V). -
Page 9: Configuring The Device
The complete list of the menu and all commands available are listed in “Control Menu” on page 13-14. Before turning on the Q-2, make sure the power cable is properly connected. When the fixture is powered on it boots and resets before displaying the selected operating mode and DMX start address. -
Page 10: Connecting To A Dmx Control Device
For independent control, each Q-2 must be assigned its own DMX start address. For example, if the first Q-2 is set to 6ch CTC DMX mode with a start DMX address of 8, the following Q-2 in the DMX chain should then be set to a DMX address of 14. As the first fixture uses all the first 6 DMX channels, including channel 8, the next available channel is 14 (8+6=14 >>... -
Page 11: Full Color Calibration And Color Temperature Correction (Q-2 Rgbw Only)
See all DMX protocols at www.sgmligh.com for more details. Setting a static color manually (Q-2 RGBW only) The Q-2 can be configured to display a predefined and static color. To set up a static color select ENTER → MANUAL → QUICK COLOR. -
Page 12: Fixture Properties
Linear control provides uniform adjustment throughout the control action, whereas gamma corrected dimming provides finer control at low light levels, where the eye is more sensitive to change. By default, the Q-2 uses gamma corrected dimming. For a uniform response, set all fixtures to the same dimming curve. -
Page 13: Q-2 Control Menu
Q-2 Control menu Level 1 Level 2 Level 3 Level 4 Function MODE Select Mode Select DMX mode. INFO Product Type Display product type. Firmware Version Display installed firmware version. Serial Number Display fixture’s serial number. RDM ID Display fixture’s RDM ID. (Unique RDM ID for identification). -
Page 14: Q-2 W Control Menu
Q-2 W Control menu Level 1 Level 2 Level 3 Level 4 Function MODE Select Mode Use the arrows to select DMX mode. INFO Product Type Display product type. Firmware Version Display installed firmware version. Serial Number Display fixture’s serial number. -
Page 15: Rdm
Supported RDM functions The Q-2 Series features support for various RDM functions. RDM (Remote Device Management) is a protocol enhancement to USITT DMX512 that allows bi-directional communication between the fixtures and the controller over a standard DMX line. This protocol will allow configuration, status monitoring, and management. -
Page 16: Poi Permanent Outdoor Installation
15 for more information. In Q-2 POI, the DMX address and DMX mode can only be set through RDM. When addressing through USB powered DMX / RDM devices, ensure DMX link is terminated, and keep a short cable length as far as possible. - Page 17 The Q-2 POI has two M-10 nuts in the base that can be used for installation and rigging. The SGM Omega bracket (not included) or a customized bracket is needed to install the fixture. Consider the dimensions below of the Q-2 POI base for customized mounting brackets purposes.
- Page 18 Figure 18: Connecting DMX and AC Power in Q-2 POI Connecting a wireless transmitter in POI In POI versions with wireless it is necessary to pair the fixture with a new transmitter (by default the fixture is linked to the SGM factory transmitter).
-
Page 19: Accessories
The Accessory holder is a mandatory base for holding Barndoors and Color frames to the Q-2 Series fixture. It is a clip-on accessory that includes a safety wire to be attached to the bracket of the fixture, and a knob on the side to allow the sliding of barndoors, color frames or rigid diffusion filters. -
Page 20: Maintenance
To maintain adequate cooling, fans must be cleaned periodically. Whenever necessary, clean the Q-2 Series using a soft cloth dampened with a solution of water and a mild detergent. Do not use products that contain solvents, abrasives, or caustic agents for cleaning, as they can cause damage to hardware, cables, and connectors. -
Page 21: Fixtures And Accessories
Q-2 White Flood, Std, BL / WH........................P/N: 80030536 / 80030567 The Q-2 Series can be ordered in any RAL color and can be customized into POI version. Contact your local SGM dealer for ordering customized color housings or for more information. -
Page 22: User Notes
User Notes... -
Page 23: User Notes
User Notes... - Page 24 SGM Light A/S Sommervej 23 8210 Aarhus V Denmark Tel: +45 70 20 74 00 info@sgmlight.com www.sgmlight.com...
