  • Page 1 SP∙6 SIXPACK...
  • Page 2 SP-6 SixPack dimensions All dimensions in mm. Drawing not to scale.
  • Page 3 The SGM logo, the SGM name and all other trademarks in this document pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.

  • Page 5: Table Of Contents

    Contents Safety information....................6 Overview........................8 Preparing for installation ..................9 Installing the SP-6 SixPack .................. .10 Installing fixtures at elevation in an array ...............11 Connecting AC power .................... 16 Connecting to control data..................17 Configuring the device ..................18 Service........................

  • Page 6: Safety Information

    WARNING! Read the safety precautions in this section before installing, powering or operating this product. The SP-6 SixPack is intended for professional use only. It is not suitable for household use. Review the following safety precautions carefully before installing or operating the device.
  • Page 7 WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the device. • Install only in a well-ventilated space. • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...

  • Page 8: Overview

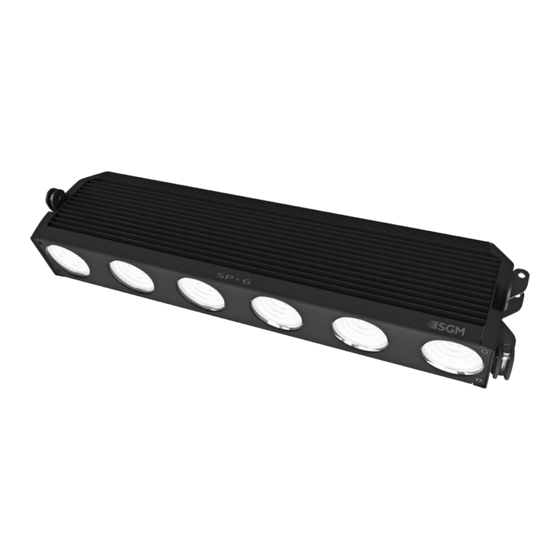

    Overview The SP-6 SixPack is a pixel array based on the popular blinder—but the traditional halogen lamps have been replaced with RGBA LEDs. The fixture incorporates six powerful 35 W colour mixable LEDs, with individual DMX control over each pixel, enabling a creative lighting designer to paint light canvasses, display animated text or programmed patterns.

  • Page 9: Preparing For Installation

    Unpack the device and inspect it to ensure that it has not been damaged in transport. The SP-6 SixPack is supplied with this user guide, a stand bracket, a vertical-array top mounting bracket, two snap-lock brackets, a Neutrik powerCON TRUE1 power cable and two locking pins with cotter pins.

  • Page 10: Installing The Sp-6 Sixpack

    The angle of the fixture can be adjusted using the tilt locks at either end of the fixture. WARNING! Always secure an elevated SP-6 SixPack with a safety cable as backup When flying any fixture at elevation, always fasten a safety cable between the load-bearing support structure and the attachment point on the device.

  • Page 11: Installing Fixtures At Elevation In An Array

    Installing fixtures at elevation in an array WARNING! Do not connect more than eight SP-6 SixPacks together in a single array Using the supplied snap-lock brackets, horizontally (flat) or vertically (upright) aligned SP-6 SixPack fixtures can be connected into arrays. The supplied hardware is able to bear the weight of up to eight SP-6 Six Pack fixtures.
  • Page 12 Attaching snap-lock brackets Two snap lock brackets are supplied with each fixture and these are used to connect fixtures together in arrays. To remove the stand bracket and mount the snap-lock brackets: Unscrew the tilt locks on each side of the fixture and detach the stand. Remove the two Torx 25 screws that hold the safety cable eyelet in place and remove the eyelet.
  • Page 13 To connect one vertically-oriented SP-6 SixPack device to another: Lift a SP-6 SixPack into position under the other so that the eye holes on each fixture are aligned. Orient the fixture so that the built-in DMX and power patch cables and connectors are able to reach, or be reached, by adjacent devices in a daisy chain.
  • Page 14 0.5 m (20 in.) built-in DMX and power cables. To connect one SP-6 SixPack device to another: Lift a SP-6 SixPack into position under the other. Depending on how you plan to daisy-chain power and DMX cables between fixtures, you might choose to mount every second device upside down so that the built-in DMX and power patch cables can reach the next device (see “Planning the layout of fixtures in an array”...
  • Page 15 Connecting arrays together into a larger matrix No single fixture may be loaded with the weight of more than seven other fixtures in an array. Arrays threads can be connected to other array threads, but each array thread must have its own secure correction to a load bearing structure, and not have its weight supported by another array thread.

  • Page 16: Connecting Ac Power

    Connecting AC power The SP-6 SixPack can operate on any 100–240 V, 50/60 Hz AC mains power supply. Connect the device to power using a cable with a Neutrik powerCON TRUE1 connector (supplied with the fixture). The device can feed power to another device in a daisy chain using the built-in 0.5 m (20 in.) power-out cable.

  • Page 17: Connecting To Control Data

    Connecting to control data The device complies with the Digital MultipleX (DMX) communications protocol. It is controlled using a DMX control device and must be connected to the data link using a DMX cable with a 5-pin DMX connector. Connect the DMX in socket and out socket to the DMX data link. The device can feed control signals to another device in a daisy chain using the built-in 0.5 m (20 in.) DMX-out cable.

  • Page 18: Configuring The Device

    As an alternative to connecting the device to power and using the control panel, one or more SP-6 Six Pack devices can also be configured wirelessly, via RFID, using the SGM Tool app (available from the Google Play Store) installed on an Android smart phone that has NFC support (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 MHz ±7k Hz carrier frequency).
  • Page 19 About DMX The SP-6 SixPack is controlled using signals sent by a DMX controller on a number of channels (6, 7, 24, 28 or 48 depending on the DMX mode that has been set). The first channel used to receive data from a DMX control device is known as the DMX address.
  • Page 20 By default, the SP-6 SixPack uses gamma corrected dimming. For uniform response, set all devices to the same dimming curve. To set the desired dimming curve, use the control...
  • Page 21 Temperature dimming mode options As the device warms up, the color of the light changes slightly. By default, the device will dim the colors according to the temperature of the device, to keep the color output constant. This can be disabled by selecting the ‘Max Power’...
  • Page 22 Setting the OLED display saver By default the OLED display turns off after a short period when the control panel is not in use, but it can be set so that it dims. Pressing any key will always turns on the display or restore it to normal brightness. To set the OLED screen saver mode, use the “Settings→Display Saver”...

  • Page 23: Service

    If in doubt, consult your SGM dealer for a suitable maintenance schedule. Clean the SP-6 SixPack using a soft cloth dampened with a solution of water and a mild detergent. Do not use products that contain solvents, abrasives or caustic agents for cleaning, as they can cause damage to both hardware, cables and...

  • Page 24: Dmx Protocols

    DMX protocols Configuring DMX is described in “Setting the DMX mode” on page 20. 6 channel mode - Halogen dimmer emulation Channel DMX Value Function 0-255 “Halogen” 0-100% - pixel 1 0-255 “Halogen” 0-100% - pixel 2 0-255 “Halogen” 0-100% - pixel 3 0-255 “Halogen”...
  • Page 25 7 channel mode - effects with collective RGBA control Channel DMX Value Function Shutter Blackout 8-15 Shutter Open 16-151 Variable Strobe 152-175 Pulse Open 176-199 Pulse Close 200-244 Variable Random Strobe 245-255 Shutter Open 0-255 Dimmer 0-100% 0-255 Red 0-100% - all pixels 0-255 Green 0-100% - all pixels 0-255...
  • Page 26 18 Channel Mode RGB automated mix in Amber Channel DMX Value Function 0-255 Red 0-100% - pixel 1 0-255 Green 0-100% - pixel 1 0-255 Blue 0-100 - pixel 1 0-255 Red 0-100% - pixel 2 0-255 Green 0-100% - pixel 2 0-255 Blue 0-100% - pixel 2 0-255...
  • Page 27 18 Channel Mode RGB automated mix in Amber Channel DMX Value Function 0-255 Green 0-100% - pixel 6 0-255 Blue 0-100% - pixel 6...
  • Page 28 22 Channel Mode RGB automated mix in Amber Channel DMX Value Function Channel DMX Value Function 0-255 Blue 0-100% - pixel 2 Shutter Blackout 8-15 Shutter Open 0-255 Red 0-100% - pixe3 16-151 Variable Strobe 0-255 Green 0-100% - pixel 3 152-175 Pulse Open 0-255...
  • Page 29 24 channel mode - Individual RGBA control Channel DMX Value Function Channel DMX Value Function 0-255 Red 0-100% - pixel 1 0-255 Red 0-100% - pixel 4 0-255 Green 0-100% - pixel 1 0-255 Green 0-100% - pixel 4 0-255 Blue 0-100% - pixel 1 0-255 Blue 0-100% - pixel 4...
  • Page 30 28 channel mode - Effects & individual RGBA control Channel DMX Value Function Channel DMX Value Function 0-255 Blue 0-100% - pixel 1 Shutter Blackout 8-15 Shutter Open 0-255 Amber 0-100% - pixel 1 16-151 Variable Strobe 0-255 Red 0-100% - pixel 2 152-175 Pulse Open 0-255...
  • Page 31 28 channel mode - Effects & individual RGBA control 0-255 Green 0-100% - pixel 4 0-255 Amber 0-100% - pixel 5 0-255 Blue 0-100% - pixel 4 0-255 Red 0-100% - pixel 6 0-255 Amber 0-100% - pixel 4 0-255 Green 0-100% - pixel 6 0-255 Red 0-100% - pixel 5...
  • Page 32 48 channel mode - Coarse & fine individual RGBA control (16-bit) Channel DMX Value Function Channel DMX Value Function 0-255 Red 0-100% - pixel 1 0-255 Amber 0-100% - pixel 2 0-255 Red fine - pixel 1 0-255 Amber fine - pixel 2 0-255 Green 0-100% - pixel 1 0-255...
  • Page 33 48 channel mode - Coarse & fine individual RGBA control (16-bit) 0-255 Blue 0-100% - pixel 4 0-255 Amber 0-100% - pixel 5 0-255 Blue fine - pixel 4 0-255 Amber fine - pixel 5 0-255 Amber 0-100% - pixel 4 0-255 Red 0-100% - pixel 6 0-255...
  • Page 34 53 Channel Mode (16-Bit) Channel DMX Value Function Shutter Blackout 8-18 Shutter Open 16-151 Variable Strobe 152-175 Pulse Open 176-199 Pulse Close 200-244 Variable Random Strobe 245-255 Shutter Open 0-255 Dimmer 0-100% 0-255 Dimmer Fine No Function 8-15 Emulate Halogen Dimming Characteristics 16-21 Emulate Halogen Dimming Instant attack 22-255...
  • Page 35 53 Channel Mode (16-Bit) Channel DMX Value Function 0-255 Green Fine - pixel 1 0-255 Blue 0-100% - pixel 1 0-255 Blue Fine - pixel 1 0-255 Amber 0-100% - pixel 1 0-255 Amber Fine - pixel 2 0-255 Red 0-100% - pixel 2 0-255 Red Fine - pixel 2 0-255...
  • Page 36 53 Channel Mode (16-Bit) Channel DMX Value Function 0-255 Green Fine - pixel 3 0-255 Blue 0-100% - pixel 3 0-255 Blue Fine - pixel 3 0-255 Amber 0-100% - pixel 3 0-255 Amber Fine - pixel 4 0-255 Red 0-100% - pixel 4 0-255 Red Fine - pixel 4 0-255...
  • Page 37 53 Channel Mode (16-Bit) Channel DMX Value Function 0-255 Green Fine - pixel 5 0-255 Blue 0-100% - pixel 5 0-255 Blue Fine - pixel 5 0-255 Amber 0-100% - pixel 5 0-255 Amber Fine - pixel 5 0-255 Red 0-100% - pixel 6 0-255 Red Fine - pixel 6 0-255...

  • Page 38: Control Menu

    Control menu Default settings are in bold. Level 1 Level 2 Level 3 Function DMX Mode 6 Channel Mode Selects DMX mode. Refer to DMX protocol table for features of each mode. 7 Channel Mode 24 Channel Mode 28 Channel Mode 48 Channel Mode Info Firmware Version...
  • Page 39 Level 1 Level 2 Level 3 Function Settings Reverse Pixel Normal Pixel order is normal. Order Reversed Pixel order for DMX control is reversed. See “Planning the layout of fixtures in an array” on page 11). Dimming Curve Linear Provides equal resolution dimming from 0 to 100%. Gamma Provides high resolution dimming at low levels.
  • Page 40 Level 1 Level 2 Level 3 Function Test Stops test sequence execution. Automated Test Initiates a self-test sequence. Burn In Test 30 A test that runs for 30 minutes and powers down the fixture. min. Display Test All pixels in the OLED display are turned on.

  • Page 41: Specifications

    Specifications PHYSICAL Length x width x height ................739 x 175 x 107 mm (29.9 x 6.9 x 4.2 in.) Weight ..............................8 kg (17.6 lbs) LIGHT SOURCE AND OPTICS 6 x RGBA power LEDs ..........................35 W each LEDs lifetime ............................50,000 hours Luminous flux ............................
  • Page 42 Local control ................OLED graphical display / 4 buttons menu structure Software upgrade ............................via DMX Wireless interface ......via RFID using an Android telephone that has NFC support and SGM Tools app CONNECTIONS AC power input ......................Neutrik powerCON TRUE1 socket AC power output ..............0.5 m (20 in.) Neutrik powerCON TRUE1 cable with plug...
  • Page 43 ELECTRICAL AC power ............................ 100–240 V, 50/60 Hz Maximum total power consumption (all LED pixels on) ..................250 W Power consumption (all LED pixels off) ......................... 7 W TYPICAL POWER AND CURRENT 100 V, 60 Hz ..........................225 W, 2.28 A, 0.99 PF 120 V, 60 Hz ..........................225 W, 1.89 A, 0.99 PF 208 V, 60 Hz ..........................225 W, 1.1 A, 0.99 PF 230 V, 50 Hz ..........................225 W, 1.0 A, 0.97 PF...
  • Page 44 APPROVALS AND CERTIFICATIONS Certified to..........................CSA Std. C22.2 No. 166 Conforms to..............................UL Std. 1573 Conforms to………………....................2004/108/EC: EMC Directive Conforms to.......................2006/95/EC: Low Voltage Directive Conforms to………………....................2011/65/EU: RoHS2 Directive Specifications subject to change without notice RoHS 4008543...

  • Page 45: User's Notes

    USER’S NOTES...
  • Page 48 SGM A /S · Sommer vej 23 · 8210 Aarhus V · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com...
