- Page 1 USER MANUAL Q-S E R I E S Q-7 (P O I) Q-7 W H I T E (P O I)
- Page 2 Q-7 SERIES USER MANUAL REV. E © 2018 SGM Light A/S ® . The information in this document is subject to change without notice. SGM and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss, or any other loss occasioned by the use of, inability to use, or reliance on the information contained in this manual.
-
Page 3: Table Of Contents
Contents Safety information ........................4 Overview ..........................5 Preparing for installation ......................6 Installing / rigging the Q-7 Series ....................6 Tilt lock ...........................8 Connecting AC power .......................8 Configuring the device .......................9 Display ............................9 Connecting to a DMX control device ..................10 Configuring the device for DMX control ..................11 Setting a static color manually ....................12... -
Page 4: Safety Information
Read the following safety precautions carefully before unpacking, installing, powering, or operating the device. SGM luminaries are intended for professional use only. They are not suitable for household use. Les luminaires SGM sont impropre à l’usage domestique. Uniquement à usage professionnel. -
Page 5: Overview

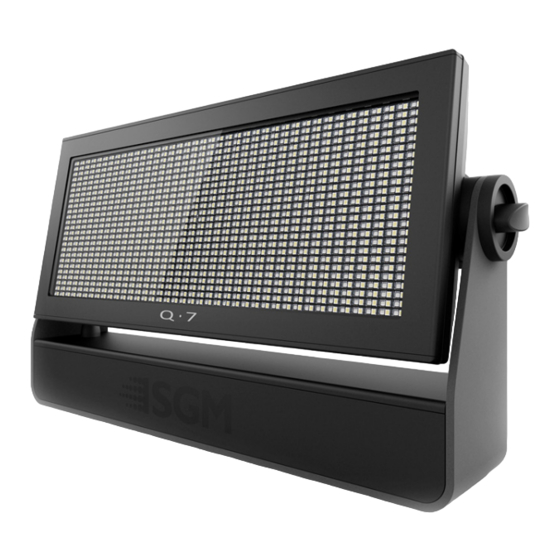

Overview The Q-7 Series is an IP65/IP66-rated LED flood light with a small footprint and high output, designed for multiple applications, including when wireless operation is essential (POI n.a.). Q-7 Series features: • A flood light, weighing only 8.1 kg/17.9 lbs. -
Page 6: Preparing For Installation
Installing / rigging the Q-7 Series The Q-7 Series may be installed in any orientation, on the ceiling or on a wall surface. When installed horizontally with a downward beam-angle, water, moist, or grime can potentially pool in the fan wells. Under normal operation the moisture will evaporate. - Page 7 Never use the yoke for secondary attachment. Q-7 Mounting bracket The standard Q-7 includes a mounting bracket with fasteners that can be attached to the fixture. The four rubber push-in bumpers prevent the fixture from sliding while operating, and protect delicate surfaces from scratching.
-
Page 8: Tilt Lock
Connecting AC power The Q-7 Series can operate on any 208–240 V, 50/60 Hz AC mains power supply, and it draws approximately 2A at full power. Connect the fixture to AC power by mounting a power connector to the bare ended mains cable. The fixture must be grounded/ earthed and be able to be isolated from AC power. -
Page 9: Configuring The Device
Configuring the device The Q-7 Series can be set up by using the control panel and OLED multi-line display at the base of the fixture or through RDM. Please note: In POI versions there is no display mounted in the fixture. The adjustments are made through RDM. -
Page 10: Connecting To A Dmx Control Device
Connecting to a DMX control device The Q-7 Series is controllable using a DMX control device, and it can be connected using either a DMX cable, or via the fixture’s built-in CRMX wireless receiver system. When using a cabled DMX system, connect the DMX-In cable (with male 5-pin XLR plug) to the input connector and DMX-Out cable (with female 5-pin XLR plug) to the output, both located on the rear of the fixture’s base. -
Page 11: Configuring The Device For Dmx Control
6-channel DMX mode, and have a DMX address of 101, it will use the channels 101, 102, 103, 104, 105 and 106 (101+6=107 >> 107). Therefore, the following Q-7 in the DMX chain should then be set to a DMX address of 107, as the first fixture uses all the first 6 DMX channels, including channel 106. -
Page 12: Setting A Static Color Manually
Setting a static color manually The Q-7 can be configured to display a predefined and static color (or white color depending on the Q-7 model). To set up a static color go to MANUAL → QUICK COLOR in the menu. -
Page 13: Fixture Personality Settings
In order to avoid flickering and horizontal banding (rolling shutter) the Q-7 Series offers the ability to adjust the refresh rate (frequency) in order to achieve flicker-free performance. In the Q-7 menu, go to SETTINGS → REFRESH RATE. Here you are able to set the refresh rate (frequency) of the LEDs to be: •... -
Page 14: Q-7 / Q-7W Control Menu
Adjust default minimum setting (0-8000). Service use only. Line 1 (Q-7 W) Line 2 (Q-7 W) Line 3 (Q-7 W) Line 4 (Q-7 W) RFID Write Enable Enable the RFID write for the SGM Tool. Disable Enable the RFID write for the SGM Tool. -
Page 15: Q-7W Control Menu
See “Setting the LED refresh rate (Frequency)” on page 13 for details. Factory Default Reset the fixture to factory default settings. Service Pin Contact your SGM dealer or SGM support to request the service pin. Service use only. Service Menu Only accessible when service pin has been entered. Service use only. -
Page 16: Rdm
Supported RDM functions The Q-7 Series features support for various RDM functions. RDM (Remote Device Management) is a protocol enhancement to USITT DMX512 that allows bi-directional communication between the fixtures and the controller over a standard DMX line. This protocol will allow configuration, status monitoring, and management. -
Page 17: Troubleshooting
Confirm that the power is switched on; confirm that the cables are to be off. plugged in. Main fuse is blown. Contact a certified SGM service partner, or support@sgmlight.com. Fixture suddenly turned off. Power was turned off. Check the power supply, switches and breakers. -
Page 18: Poi Permanent Outdoor Installation
RDM devices, ensure DMX link is terminated, and keep a short cable length as far as possible. Regarding the DMX modes for POI, they are the same as the standard Q-7 Series. Visit www.sgmlight.com to see all DMX charts available under the respective product, or upon request via support@sgmlight.com. - Page 19 The Q-7 POI has four M-10 nuts in the base that can be used for installation and rigging. The SGM Omega bracket (not included) or a customized bracket is needed to install the fixture. Consider the dimensions below of the Q-7 POI base for customized mounting brackets purposes.
- Page 20 Black / DMX out / Data - Red / DMX in / Data + Yellow / DMX out / Data + Red / DMX in / Data + Yellow / DMX out / Data + Figure 20: Connecting DMX and AC Power in Q-7 POI...
-
Page 21: Accessories
The Accessory holder is a mandatory base for holding Barndoors and Color frames to the Q-7 Series fixture. It is a clip-on accessory that includes a safety wire to be attached to the bracket of the fixture, and a knob on the side to allow the sliding of Figure 21: Q-7 Series Accessory holder barndoors, color frames or rigid diffusion filters. -
Page 22: Maintenance
To maintain adequate cooling, fans must be cleaned periodically. Whenever necessary, clean the Q-7 Series using a soft cloth dampened with a solution of water and a mild detergent. Do not use products that contain solvents, abrasives, or caustic agents for cleaning, as they can cause damage to hardware, cables, and connectors. -
Page 23: Ordering Information
Q-7 W White Flood, Std, BL / WH........................P/N: 80030525 / 80030563 The Q-7 Series can be ordered in any RAL color and can be customized into POI version. Contact your local SGM dealer for ordering customized color housings or for more information. -
Page 24: User Notes
User Notes... -
Page 25: User Notes
User Notes... - Page 26 SGM Light A/S Sommervej 23 8210 Aarhus V Denmark Tel: +45 70 20 74 00 info@sgmlight.com www.sgmlight.com...
