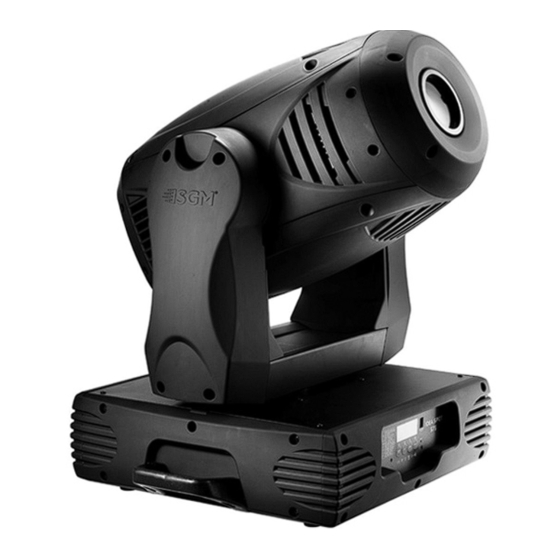

SGM Idea spot 575 User Manual
  1. Manuals
  2. Brands
  3. SGM Manuals
  4. DJ Equipment
  5. Idea spot 575
  6. User manual

SGM Idea spot 575 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Idea spot 575 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SGM Idea spot 575

Summary of Contents for SGM Idea spot 575

  • Page 2: Table Of Contents

    Safety information .........................2 General Warranty Conditions....................2 Manual symbols........................3 Technical Features .......................4 Important safety information ....................5 Fire prevention: ..........................5 Prevention of electric shock: ......................5 Protection against ultraviolet radiation:....................5 Safety: ............................5 Level of protection against the penetration of solid and liquid matter: ..........5 1.0 –...

  • Page 3: Safety Information

    • After having removed the packaging, make certain the unit is not damaged in any way. When in doubt, do not use the unit, and contact an authorized SGM Technical Assistance Centre. • The various part of the packaging (plastic bags, polystyrene foam, nails, etc.) must not be left within children’s reach, as they are potential sources of danger.

  • Page 4: Manual Symbols

    This symbol indicates a hot surface risk This symbol indicates that the unit must not be laid on an inflammable surface or in any case must be kept away from naked flames - 3 - Idea Spot 575 rel. 1.0...

  • Page 5: Technical Features

    3 sides prism (angle 14°) with different rotation speed to right or left Motorized focus Frost 3 light beam angles (13°/18°/21°) Optical system: 3 lenses with double antireflective treatment Working position: any position Weight:26 kg 30,0mm 46,5cm Idea Spot 575 rel. 1.0...

  • Page 6: Important Safety Information

    The level of technology inherent in the IDEA requires the assistance of specialised personnel for all servicing. Refer all work to your authorised SGM service centre. A good earth connection is essential for proper functioning of the projector. Never connect the unit without proper earth connection.

  • Page 7: Installation

    4. The lamp used is manufactured from quartz glass and should be handled with care. Always adhere to the instructions supplied in the lamp's packaging. Never touch the glass directly but use the tissue provided in the lamp's packaging. The GX 9.5 lampbase is symmetrical. Idea Spot 575 rel. 1.0...

  • Page 8: Alignment Lamp

    IDEA uses a mechanical system which allows the fixture's gobos to be removed without the use of specialist equipment. Replacement gobos should be made of either heat resistant glass or metal. An ever-increasing range of gobos is available from your SGM sales network. Gobo dimensions are as follows: ø...

  • Page 9: Voltage And Frequency

    1.6 - Voltage and frequency: The projector can operate at 230V voltage, at 50 or 60 Hz. SGM presets a voltage of 230V at a frequency of 50Hz (barring specific requests). 1.7 - Fissaggio meccanico montaggio: IDEA may be either floor or ceiling mounted.

  • Page 10: Protection Against Liquids

    Strict adherence to regulatory norms is strongly recommended. 1.95 - Protection The use of a thermal magnetic circuit breaker is recommended for each IDEA. A good earth connection is essential for the correct operation of the projector. - 9 - Idea Spot 575 rel. 1.0...

  • Page 11: Collegamento Dmx

    To avoid the risk of faulty operation, follow these indications: Maximum cable length: 500 metres Max. N° of fixtures connected: 32 Cable runs: Avoid running cables alongside power supply lines. Termination: A 120Ohm resistor between Pins 2 and 3 on the last fixture. Idea Spot 575 rel. 1.0...

  • Page 12: Construction Of The Dmx Termination

    2. Press ENTER to confirm your selection. The numbers on the display will stop flashing and the projector is now controlled by the new 512 DMX number. WARNING: if you press the UP-DOWN keys together the channels are calculated more quickly and you get a faster selection. - 11 - Idea Spot 575 rel. 1.0...

  • Page 13: Microcomputer Control

    The IDEA display panel shows all the functions available. Using these functions, it is possible to change some of the parameters and to add some functions. Changing the SGM setting can vary the functions of the appliance so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 14 ON/OFF lamp via DMX Up-Down ENTER Up-Down ENTER MENU Up-Down ENTER ENTER DEFAULT To restore default setting (set by SGM) MENU ENTER Up-Down SOFTWARE VERSION Pcb 8 motors . Pcb PAN/TILT Electronic card software version. MENU Up-Down ENTER Up-Down ENTER FAN CONTROL To control the fan speed.

  • Page 15: Automatic Operation (Auto)

    From 20-235 the unit runs the configuration given by the received input DMX values. With the channel scene it is possible to pass from one scene to the next while with REC it is possible to record the selected scene. Idea Spot 575 rel. 1.0...

  • Page 16: Recording Channel (Rec)

    ERROR: GOBO WHEEL POSITION ERROR: LENSES WHEEL ERROR: DMX ADDRESS POSITION ERROR: LOAD DATA ERROR: ROTOGOBO POSITION EEPROM ERROR: INTERNAL ERROR: SENSOR CIRCUIT COLOR/BEAM ANGLE COMMUNICATION ERROR: SENSOR CIRCUIT ERROR: AUTO MODE INPUT GOBO/ROTOGOBO - 15 - Idea Spot 575 rel. 1.0...

  • Page 17: Hidden Menu

    Up- Down EN TER Up-Down EN TER SHUTTER ALIGNMENT To align shutter Up- Down EN TER Up-Down EN TER PRISM ALIGNMENT To align prism Up- Down EN TER Up-Down EN TER LENSES ALIGNMENT To align lenses Idea Spot 575 rel. 1.0...

  • Page 18: Periodic Cleaning

    Suitable instruments for performing this type of maintenance are a brush and a common vacuum cleaner or an air compressor. If necessary, clean the fans and air passages more frequently. - 17 - Idea Spot 575 rel. 1.0...
  • Page 19 Appendix 16 CHANNELS MODE ( 16CH) PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT COLOUR GOBO SHUTTER DIMMER ROTOGOBO PRISM/ROTOPRISM PROPORTIONAL COLOUR (Prioritario) FOCUS LIGHT BEAM ANGLE RESET/LAMP FROST - A1 - Idea Spot 575...
  • Page 20 Left rotation speed 3 238-240 Left rotation speed 4 241-243 Left rotation speed 5 244-246 Left rotation speed 6 247-249 Left rotation speed 7 250-252 Left rotation speed 8 253-255 Left rotation speed 9 max. - A2 - Idea Spot 575...
  • Page 21 Dimmer – ch 9 - Central Function Value Value Black-out 9-255 Proportional dimmer Roto gobo – ch 10 - Central Function Value Value 0-127 Proportional from 0° to 360° 128-180 Left rotation 181-202 Stop 203-255 Right rotation - A3 - Idea Spot 575...
  • Page 22 86 - 170 Internal motor reset 171 - 235 Total reset 236 - 255 Lamp ON (activated after 3 seconds) Frost – ch 16 - Central Function Value Value 0-127 No lens 128-255 Frost - A4 - Idea Spot 575...
  • Page 23 Appendix 14 CHANNELS MODE ( 14CH) TILT SPEED MOVEMENT COLOUR GOBO SHUTTER DIMMER ROTOGOBO PRISM/ROTOPRISM PROPORTIONAL COLOUR FOCUS LIGHT BEAM ANGLE RESET / LAMP FROST - A5 - Idea Spot 575...
  • Page 24 Left rotation speed 3 238-240 Left rotation speed 4 241-243 Left rotation speed 5 244-246 Left rotation speed 6 247-249 Left rotation speed 7 250-252 Left rotation speed 8 253-255 Left rotation speed 9 max. - A6 - Idea Spot 575...
  • Page 25 Dimmer – ch 7 - Central Function Central Value Black-out 9-255 Proportional dimmer Roto gobo – ch 8 - Central Function Central Value 0-127 Proportional from 0° to 360° 128-180 Left rotation 181-202 Stop 203-255 Right rotation - A7 - Idea Spot 575...
  • Page 26 86 - 170 Internal motor reset 171 - 235 Total reset 236 - 255 Lamp ON (activated after 3 seconds) Frost – ch 14 - Central Function Value Value 0-127 No lens 128-255 Frost - A8 - Idea Spot 575...
