Summary of Contents for SGM I-5 WASH LIGHT

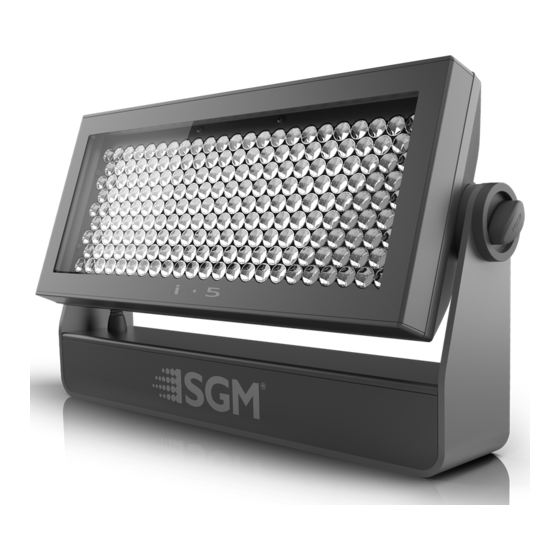

  • Page 1 I-5 WASH LIGHT...

  • Page 2: Dimensions

    Dimensions Measurements in millimetres. Drawing not to scale.

  • Page 3: User Manual

    © 2017 SGM Light A/S . Information subject to change without notice. SGM and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.

  • Page 4: Table Of Contents

    Contents Dimensions ........................2 Safety information ......................8 Overview ........................11 Parts identification and terminology ................12 Preparing for installation ..................... 13 Unpacking................................13 Location/application ..............................14 Transportation................................14 Installation / Rigging ....................15 Rigging process ............................... 16 Connecting AC power ....................17 Display panel operations .....................
  • Page 5 Set/edit DMX address.............................. 21 Configuring the fixture using an Android device via RFID ..................22 SGM Tool App for Android............................22 Getting fixture information using Android and RFID ....................22 Setting a DMX address and mode using Android and RFID ................... 22...
  • Page 6 POI Permanent Outdoor Installation ................24 Physical differences..............................24 Configuration ................................24 LED indicator ................................24 Connecting DMX and AC power..........................24 POI connection diagram ............................25 RDM ..........................26 Sensors..................................27 Fixture personality settings ..................28 Setting the dimming curve ............................28 Flipping the OLED display ............................
  • Page 7 Troubleshooting ......................42 Fixtures and accessories .................... 43 Included items................................43 Ordering information ..............................43 Approvals and certifications ..................46 User’s notes ........................ 47...

  • Page 8: Safety Information

    Safety information WARNING! Read the safety precautions in this section before unpacking, installing, powering or operating this product. The i-5 is intended for professional use only. It is not suitable for household use. Impropre a l’usage domestique. Review the following safety precautions carefully before installing or operating the fixture. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
  • Page 9 Preventing burns and fire WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the fixture. • Install only in a well-ventilated space. • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...
  • Page 10 Avoid personal injury WARNING! Take measures to prevent personal injury. • Do not look directly at the light source from close range. • Take precautions to prevent injury when working at height. • Ensure that the fixture is always securely fastened with suitable hardware. •...

  • Page 11: Overview

    The fixture also offers very low power consumption and an expected lifetime of the multiple LED’s of 50,000 hours*. This manual covers installation and use of the i-5. All documentation is also available on the SGM website: www.sgmlight.com * At 70% of luminous output under the manufacturer’s test conditions.

  • Page 12: Parts Identification And Terminology

    Parts identification and terminology A: Cooling Fans B: Safety wire attachment point C: Holes for omega bracket D: GORE-TEX membranes E: Display pane F: RFID antenna G: Wireless DMX antenna H: DMX in and out I: Power in...

  • Page 13: Preparing For Installation

    Preparing for installation Unpacking Unpack the fixture and inspect it to ensure that it has not been damaged in transport. The i-5 is shipped with: • User manual • Two Omega bracket with 1/4-turn fasteners • Floor stand (including screws) •...

  • Page 14: Location/Application

    Location/application The fixture is IP65-rated and designed for use in wet locations. This means that it is protected from: • Dust; to the degree that dust cannot enter the fixture in sufficient quantities to interfere with its operation. • Lower pressure jets of water from any direction. When selecting a location for the fixture, ensure that: •...

  • Page 15: Installation / Rigging

    Installation / Rigging WARNING! Always secure elevated fixtures with a safety cable. The i-5 may be installed in any orientation. Always use an omega bracket to rig the fixture. Lock the bracket with the 1/4-turn fasteners. The fasteners are locked only when turned fully clockwise. Always fasten a safety wire between the load-bearing support structure and the attachment point on the fixture.

  • Page 16: Rigging Process

    Rigging process Start the rigging process by blocking the work area below, and make sure the work is performed from a stable platform. Check that the clamp is undamaged and can bear at least 10 times the weight of the fixture. Check that the structure can bear at least 10 times the weight of all installed fixtures, clamps, cables etc.

  • Page 17: Connecting Ac Power

    Connecting AC power The i-5 can operate on any 208-240V, 50/60 Hz AC mains power supply. Connect the fixture to power by mounting a power connector to the bare ended mains cable. For permanent installation, have a qualified electrician wire the mains cable directly to a suitable branch circuit. The ingress protection (IP) of any junction’s must be suitable for the location.

  • Page 18: Display Panel Operations

    Display panel operations The display panel can be used to configure individual fixture settings, check the fixtures firmware version and error messages. When the fixture is powered on, it boots and resets, before displaying the DMX start address. Using the display panel •...

  • Page 19: Display

    Display Mode Displays the current mode. DMX address Displays the current DMX address. The DMX address is altered directly from this view. The next available DMX address is displayed to the right. DMX signal indicator The DMX signal indicator will flash when DMX signal is received. Current input type •...

  • Page 20: Connecting To A Dmx Control Device

    Connecting to a DMX control device The i-5 is controllable using a DMX control device and it can be connected using either a DMX cable or via the fixture’s built- in LumenRadio CRMX wireless receiver system. If using a cabled DMX system, connect the DMX in- and output cables to the connectors on the rear of the base of the fixture (chassis mounted 5-pin XLR connectors).

  • Page 21: Configuring The Fixture For Dmx Control

    Configuring the fixture for DMX control About DMX The i-5 can be controlled using signals sent by a DMX controller on a number of channels (USITT DMX512-A). The i-5 operates in various DMX modes. See “DMX modes overview” on page 39 for details. The first channel used to receive data from a DMX control device is known as the DMX start address.

  • Page 22: Configuring The Fixture Using An Android Device Via Rfid

    Configuring the fixture using an Android device via RFID The i-5 can also be configured wirelessly, via RFID, using the SGM Tool app installed on an Android device that has NFC support, App available in the Google™ Play Store (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 MHz ±7k Hz carrier frequency).

  • Page 23: Using Stand-Alone Operation

    Using stand-alone operation Stand-alone operation is where the fixture is not connected to a control device, but is preprogrammed with a series of up to 24 scenes, that play continuously in a loop. Up to three stand-alone programs can be defined and run from the menus, and one of the programs can be set to run by default whenever the fixture is started.

  • Page 24: Poi Permanent Outdoor Installation

    Green flashing: Fixture is on and no DMX is received. Shield Ground • Red flashing: An error message is stored, review via the SGM Service Tool. Contact SGM support for diagnostic help. See “Support hotline” on page 30. White DMX IN: Data - •...

  • Page 25: Poi Connection Diagram

    POI connection diagram Junction box Junction box Shield / GND Shield / GND Shield / GND Shield / GND White / DMX in / Data - Black / DMX out / Data - White / DMX in / Data - Black / DMX out / Data - Red / DMX in / Data + Yellow / DMX out / Data +...

  • Page 26: Rdm

    The i-5 features support for various RDM functions. RDM (Remote Device Management) is a protocol enhancement to USITT DMX512 that allows bi-directional communication between the fixtures and the controller over a standard DMX line. This protocol will allow configuration, status monitoring, and management.

  • Page 27: Sensors

    Sensors RDM enables various sensor readouts for remote device monitoring. See the table below for available sensors and sensor types. Name Sensor Type Base Temperature Head Temperature...

  • Page 28: Fixture Personality Settings

    Fixture personality settings Setting the dimming curve The setting of the dimming curve will determine the fixture’s behavior, when changing the light intensity between 0% - 100%. Linear control provides uniform adjustment throughout the control action, whereas gamma corrected dimming provides finer control at low light levels, where the eye is more sensitive to change.

  • Page 29: Setting The Fan Mode

    Setting the fan mode For operating environments where low-noise is a requirement or where the fixture will be operating in high temperatures, it is possible to adjust the default fan speed to low or high using the “Settings→Fan mode” menu. Setting the LED refresh rate (Frequency) When using LED lighting with cameras, flickering can occur due to incompatible frequency settings which means the LEDs and the cameras is not synchronised.

  • Page 30: Service

    There are no user-serviceable components in the fixture. Do not open the i-5, as doing so will likely damage its ingress pro- tection (IP) rating. Consult your SGM dealer if the fixture operates abnormally, is defective or otherwise is in need of service or repair.

  • Page 31: Upgrading The Firmware

    Go to the MENU → INFO → FIRMWARE VERSION. To perform firmware updates, use a Windows-based personal computer, the SGM Firmware Tool software (available on the SGM website, www.sgmlight.com) and a SGM USB 5-Pin-XLR upload cable (available from your SGM dealer).

  • Page 32: Control Menu

    Control menu Level 1 Level 2 Level 3 Level 4 Info Select mode. See “DMX modes overview” on page 39 for MODE available modes. PRODUCT TYPE Show product type. FIRMWARE VERSION Show the current software version. SERIAL NUMBER Show the fixture’s serial number. RDM ID Show the fixture’s RDM ID.
  • Page 33 Level 1 Level 2 Level 3 Level 4 Info Sends log off command to the CRMX system. LOG OFF Flashing - not connected to data. WIRELESS LED Solid - connected to data. ENABLE Enables wireless DMX operation. WIRELESS DMX DISABLE Disables wireless DMX operation.
  • Page 34 Level 1 Level 2 Level 3 Level 4 Info CALIBRATED Enables white calibrated color. WHITE CALIBRATED Enables raw color. DISABLE Selects normal control panel display. FLIP DISPLAY ENABLE Flips control panel display. DISPLAY DIM Dims the OLED display when the control panel is not in use. DISPLAY SAVER Turns off the OLED display when the control panel is not in DISPLAY OFF...
  • Page 35 See “Setting the LED refresh rate (Frequency)” on page 29 for (continued) details. FACTORY DEFAULT Reset the fixture to factory default settings. Contact your SGM dealer or SGM support to request the SERVICE PIN service pin. Service use only. Only accessible when service pin has been entered. SERVICE MENU PRODUCT TYPE Service use only.
  • Page 36 Level 1 Level 2 Level 3 Level 4 Info QUICK COLOR WHITE Static quick color - white mix (0-255). (continued) RUN PROGRAM 1, 2 or 3 Runs internal sequence 1,2 or 3. Stops current running internal sequence or Quick Color. STOP PROGRAM Sets fixture to operate as Master or Slave fixture.
  • Page 37 Level 1 Level 2 Level 3 Level 4 Info WAIT TIME (minutes) Set wait time in minutes MANUAL EDITOR (continued) (continued) WAIT TIME (seconds) Set wait time in seconds Stops test sequence execution. AUTOMATED TEST Test all features of the fixture. TEST BURN-IN TEST Service use only.
  • Page 38 Factory defaults When restoring factory defaults the following settings will be set: • DMX address = 1 • Dimming curve = Linear • DMX mode = Default mode (6 channel) • Startup mode = DMX • Screen saver = Off •...

  • Page 39: Dmx Modes Overview

    DMX modes overview The i-5 operates in 8 different modes. 1 x RGB (3 channel, calibrated) 4 channel (RAW) 6 channel CTC (calibrated) Name Name Name Shutter Green Green Intensity Blue Blue White 6 channel RAW Green Name XC-5 emulation 8 channel (RAW) Blue Name Shutter...
  • Page 40 9 channel 16-bit (RAW) 10 channel 16-bit (RAW) Name Name Intensity Intensity Green Green Blue Blue White White For detailed DMX protocols visit www.sgmlight.com...

  • Page 41: Effects

    The i-5 features 203 high-power RGBW LEDs. The fixture can operate in RGB calibrated mode which ensures that colors are compatible across the range of SGM fixtures. However the i-5 also offers the ability to operate in RAW mode with full control of each color.

  • Page 42: Troubleshooting

    Fixture does not respond or appears to be off. Main fuse is blown. Contact SGM support or certified SGM service partner. Fixture suddenly turned off. Power was turned off. Check the power supply, switches and breakers.

  • Page 43: Fixtures And Accessories

    Barndoor 4-way, i-5/P-5/Q-7 series............................Order no: 83061120 Barndoor 8-way, i-5/P-5/Q-7 series............................Order no: 83061121 Color Frame, i-5/P-5/Q-7 series..............................Order no: 83061122 SGM USB uploader cable ..............................Order no: 83062011 Omega bracket ..................................Order no: 83060602 Flightcase for 4 pcs. i-5/P-5/Q-7 ............................Order no: 82051501 Flightcase for 4 pcs.
  • Page 44 Ordering information i-5 RED Wash, 8.5°, Std, BL ..............................Order no: 80031302 i-5 RED Wash, 8.5°, Std, WH..............................Order no: 80031352 i-5 RED Wash, 8.5°, Std, CU ..............................Order no: 80031382 i-5 GREEN Wash, 8.5°, Std, BL ............................. Order no: 80031303 i-5 GREEN Wash, 8.5°, Std, WH ............................
  • Page 45 Ordering information i-5 RED Wash, 8.5°, POI, BL ..............................Order no: 80031402 i-5 RED Wash, 8.5°, POI, WH..............................Order no: 80031452 i-5 RED Wash, 8.5°, POI, CU..............................Order no: 80031482 i-5 GREEN Wash, 8.5°, POI, BL ............................Order no: 80031403 i-5 GREEN Wash, 8.5°, POI, WH............................

  • Page 46: Approvals And Certifications

    APPROVALS AND CERTIFICATIONS Conforms to ............................ 2014/30/EU: EMC Directive Conforms to ........................2014/35/EU: Low Voltage Directive Conforms to ..........................2011/65/EU: RoHS2 Directive The information in this document is subject to change without notice...

  • Page 47: User's Notes

    User’s notes...
