BDI ELEMENTS Assembly Instructions page 2

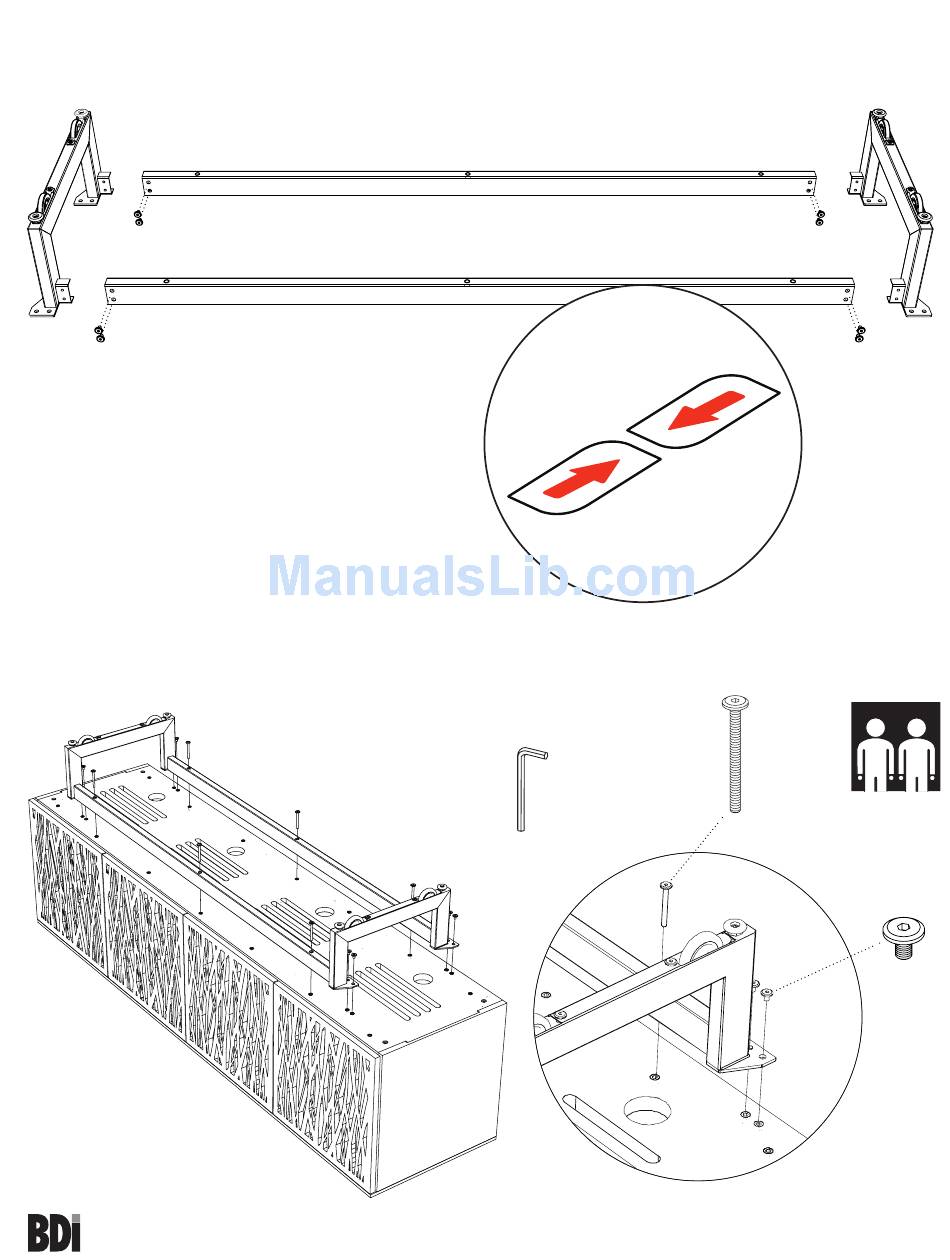

Step 2 - Build Base Assembly
Slide Legs A3 & A4 into Base Rails A2 and attach by using Hex Wrench T2 and 8 Screw H1. NOTE: You
MUST align arrows on Base Rails A2 with arrows on Metal Legs E for proper orientation.
A4
Æ
H1
Æ
H1
Step 3 Quad - With help from another person, carefully position the cabinet A1 upside-down (as shown) or on
its back. Caution-do not remove blocking above the shelves. Attach the base to the cabinet with 8 Screws
H1 and 6 Screws H2 using Hex Wrench T2. Do NOT fully tighten until all screws are started.
ELEMENTS 8777/8779__ME__
2
MEDIA CABINET
A2
A2
T2
Æ
H1
Æ
H2 x 6
bdiusa.com
customerservice@bdiusa.com
A3
H1
2 Person Task
H1x 8
