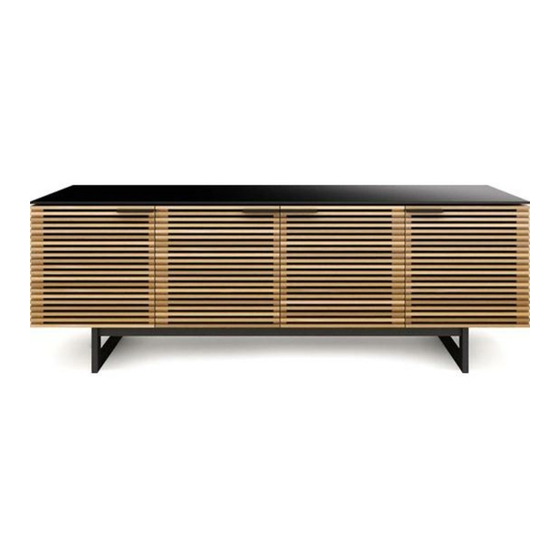

BDI CORRIDOR 8179 Assembly Instructions
Media console
Hide thumbs
Also See for CORRIDOR 8179:
- Assembly instructions (5 pages) ,
- Manual (5 pages) ,
- Instruction manual (16 pages)
Advertisement
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your
BDI products. Register today and you will be entered to win free a BINK
table from BDI. www.bdiusa.com/product-registration/
Placement and Maintenance
Corridor ® Media furniture is designed for indoor use on level floors.
Clean glass with glass cleaner, and steel parts and wood veneer with
a moist cloth.
Your Corridor ® Media furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing
hardware pieces, please contact BDI Customer Service at
customerservice@bdiusa.com. For all other concerns, please
contact your BDI retailer.
For your convenience, wheel assembly is pre-installed. Wheels can
be removed if desired.
Removal of wheels (optional):
Detach Wheel Assembly from
Metal Leg E by removing the
Leveler and Screw.
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 05.09.2016 V10
CORRIDOR
®
MEDIA CONSOLE
Reinstall Leveler to Metal Leg E.
E
8179
customerservice@bdiusa.com
E
bdiusa.com
A Phillips Screwdriver x 1
B1 Hex Wrench x 1
B2 Hex Wrench x 1
C Cabinet x 1
D 1/4-20 x 10 mm
Machine Screw x 16
E Metal Leg x 2
F Metal Rail x 2
G 1/420 x 60 mm
Machine Screw x 6
H M4 x 35 mm
Machine Screw x 8
I Door Pull x 4
J Rubber Bumper x 8
K Glass Top x 1
L Adjustable Shelf x 2
M Adjustable Shelf x 1
N Back Panel x 2
