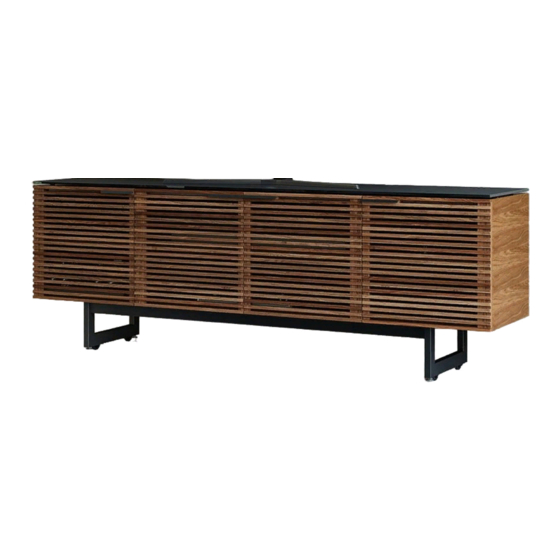

CORRIDOR® 8173
LOW MEDIA CONSOLE
INSTRUCTION MANUAL
LET'S GET STARTED.
DESIGN MATTHEW WEATHERLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATTHEW WEATHERLY CORRIDOR 8173 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BDI MATTHEW WEATHERLY CORRIDOR 8173

Summary of Contents for BDI MATTHEW WEATHERLY CORRIDOR 8173

  • Page 1 CORRIDOR® 8173 LOW MEDIA CONSOLE INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
  • Page 3 Congratulations on the purchase of your Corridor Cabinet 8173 from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your cabinet.
  • Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for assembly of this product.
  • Page 5 HARDWARE AND COMPONENTS PART # PART # DESCRIPTION DESCRIPTION Metal Leg Metal Rail QUANTITY QUANTITY PART # PART # DESCRIPTION Door Pull DESCRIPTION Rubber Bumper QUANTITY QUANTITY PART # PART # DESCRIPTION Glass Top DESCRIPTION Adjustable Shelf QUANTITY QUANTITY PART # PART # DESCRIPTION Adjustable Shelf...
  • Page 6 ASSEMBLY STEP 1. BUILD THE BASE Slide (E) Metal Leg into (F) Metal Rail and attach PART/DESCRIPTION by using (B1) Hex Wrench and 8 (D) Screws. NOTE: You MUST align arrows on (F) Metal Rails with arrows on (E) Metal Legs or proper orientation. B1-HEX WRENCH D-SCREW For your convenience, wheel assembly is pre-installed.

  • Page 7: Step 2. Attach The Base

    STEP 2. ATTACH THE BASE ASSEMBLY (C) Cabinet Carefully lay on its back. Using PART/DESCRIPTION (B1) Hex Wrench , attach the base assembly to (C) Cabinet (D) Screws the bottom of the with (G) Screws B1-HEX WRENCH Note: Each of the metal legs has levelers that can be adjusted using the (B2) Hex Wrench.
  • Page 8 ASSEMBLY STEP 3. INSTALL DOOR PULLS AND RUBBER BUMPERS Position the (C) Cabinet upright and install PART/DESCRIPTION (I) Door Pulls using (H) Screws and (A) Screwdriver. Adhere (J) Rubber Bumper at least one (1) inch from edges of the cabinet as A-SCREWDRIVER shown below.
  • Page 9 STEP 4. PLACE GLASS TOP ASSEMBLY Place (K) Glass Top on top of (C) Cabinet. Position glass flush with cabinet front doors. STEP 5. INSTALL BACK PANELS ASSEMBLY Install both (N) Back Panels to the backside of the cabinet by inserting top edge in upper channel then tipping bottom edge forward and into lower channel.

  • Page 10: Fine Tuning

    FINE TUNING ADJUSTABLE SHELVES The shelf pins located inside all three cabinet PART/DESCRIPTION spaces may be repositioned using the (A) Screwdriver, allowing you to raise or lower each (L) Adjustable Shelf and (M) Adjustable A-SCREWDRIVER Shelf to the desired level. 10 | BDIUSA.COM CORRIDOR 8173...

  • Page 11: Door Alignment

    FINE TUNING LEVEL CABINET Levelers are integrated into each leg assembly PART/DESCRIPTION and are accessed at the bottom of each cabinet leg using the (B2) Open Mouth Wrench. If your B2-OPEN MOUTH floor is uneven, you may extend one or more WRENCH levelers to attain a level, stable cabinet placement.
  • Page 12 FINE TUNING ADJUST DOOR HINGES (IF NEEDED) The doors on your cabinet should be evenly PART/DESCRIPTION spaced and the doors should open and close freely without rubbing against the door frame. A-PHILLIPS SCREWDRIVER If the cabinet’s doors appear out of alignment, this condition can be corrected with minor adjustment to the European hinges on each door.

  • Page 13: Care And Maintenance

    While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight.

  • Page 14: Warranty

    WARRANTY BDI warrants to the original purchaser that for the below stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty which fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component.
  • Page 15 WARNING SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. TO HELP PREVENT TIP-OVER: n Install tip-over restraint. Place heaviest items in lower compartments. n Never allow children to climb or hang on drawers, doors or shelves. n Never open more than one drawer at a time. USE OF TIP-OVER RESTRAINT MAY REDUCE—BUT NOT ELIMINATE—THE RISK OF TIP-OVER.
  • Page 16 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2020, BDI | V.10.22.2020 Made in China.
