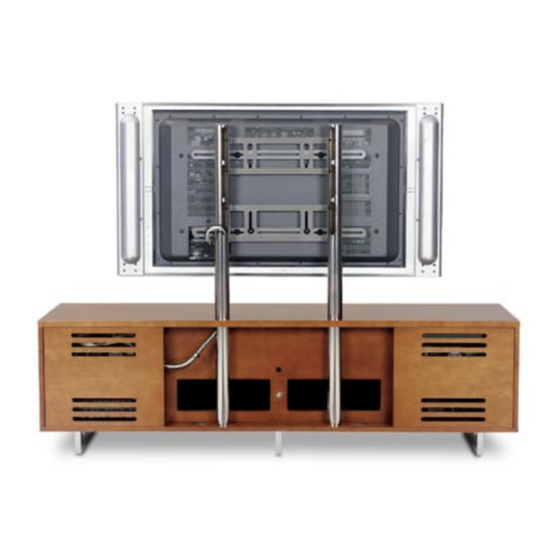

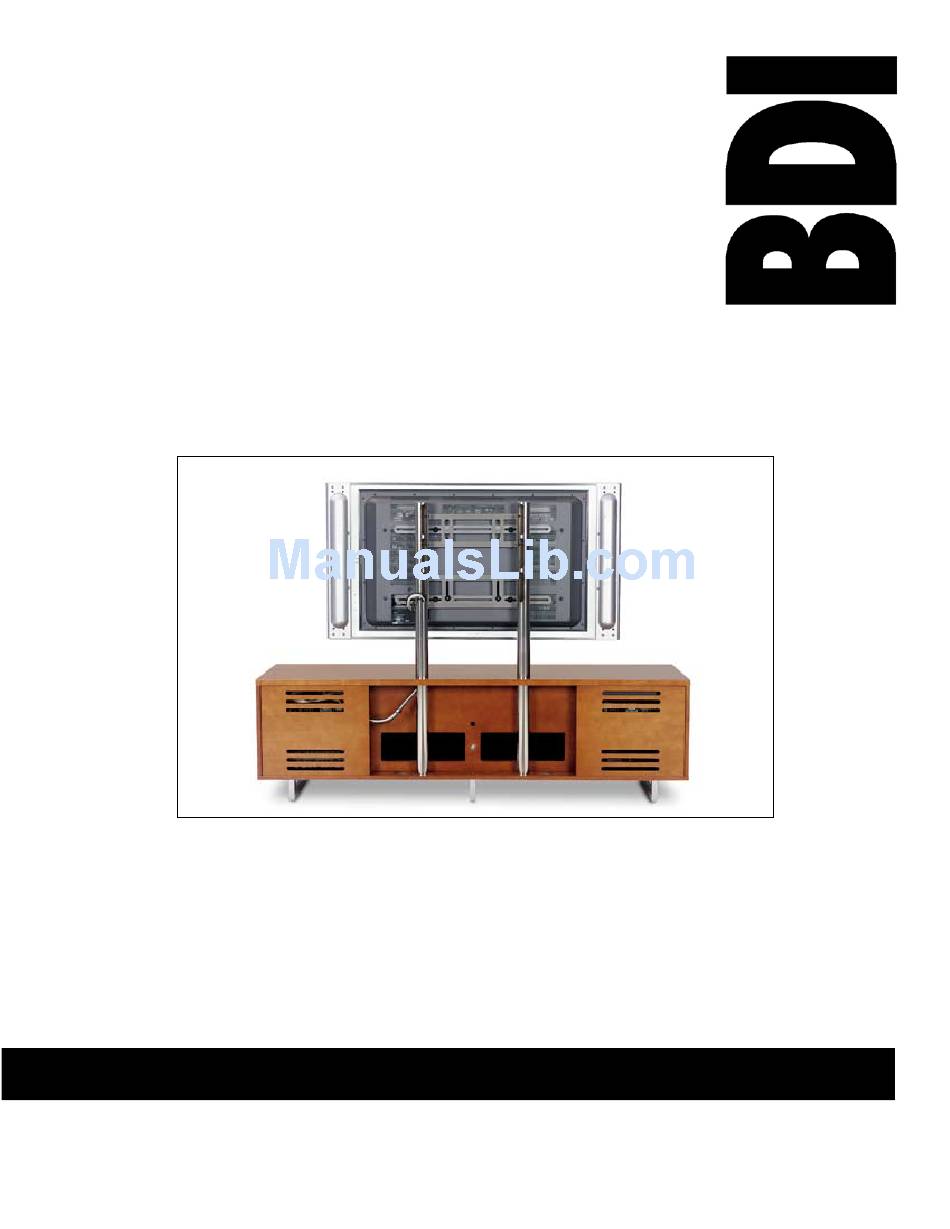

- Page 1 HIGH PERFORMANCE FURNITURE FOR YOUR HOME THEATER Avion 8540-1 Assembly Instructions...
- Page 2 Unpack and identify the parts listed above. The assembly workspace should be a clean, non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at: customerservice@bdiusa.com For all other concerns please contact your local BDI Retailer.
- Page 3 Step 2 Install both support tubes (B1 and B2) through the holes on the top panel of the Avion cabinet, and fasten them from the underside of the cabinet using the (A) 1 1/2” button head screws as shown. Note: Lower opening face towards center of unit.
- Page 4 Step 4 Install TV with attached horizontal mounting bars to horizontal mounting brackets at desired height by inserting the threaded studs into key holes. Note: Flanged nuts are provided in the Plasma Mounting Blister Pack and must be threaded on the studs of the upper mounting bar in order to prevent any damage to the TV.
