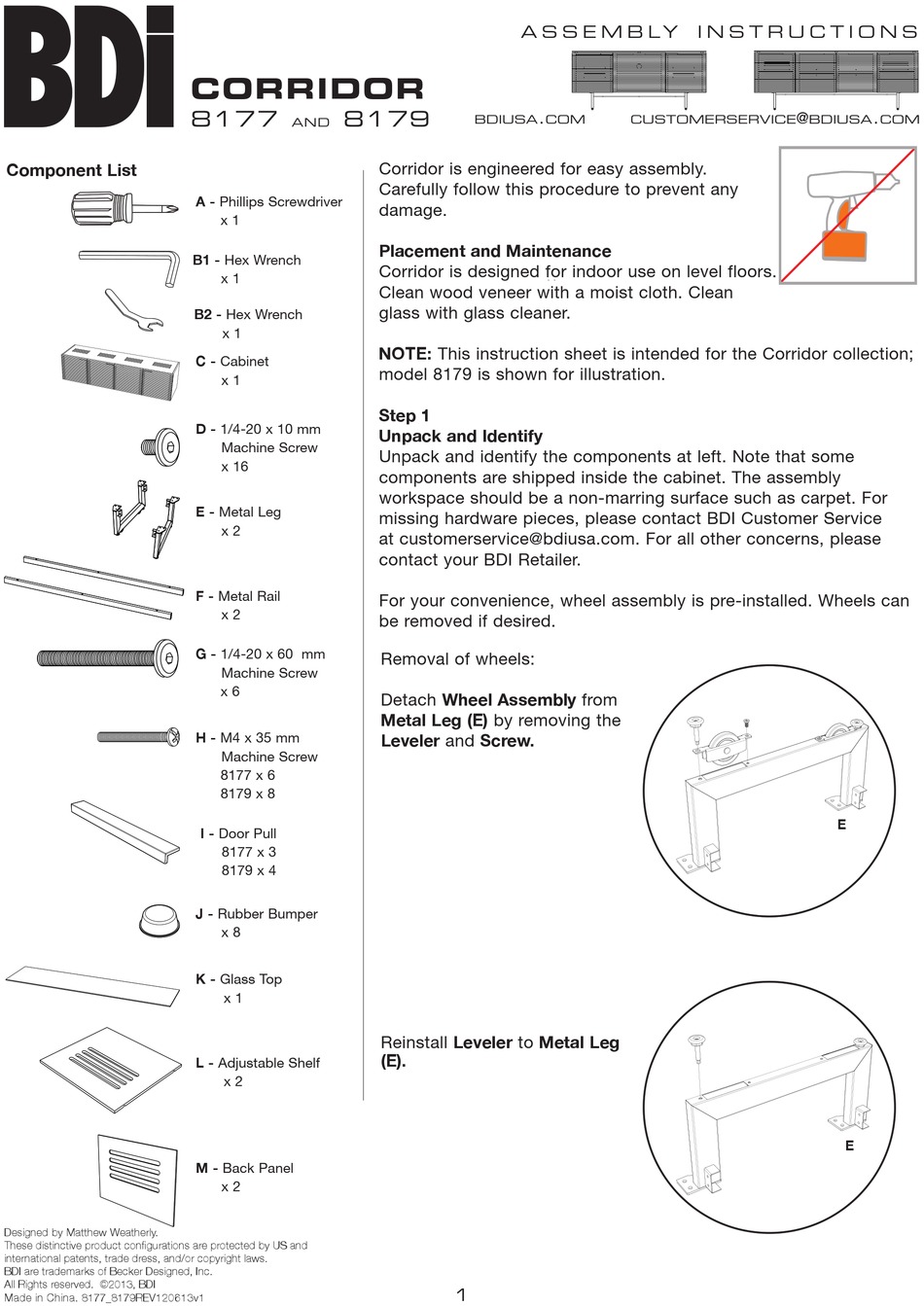

Component List
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and
international patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2013, BDI
Made in China. 8177_8179REV120613v1

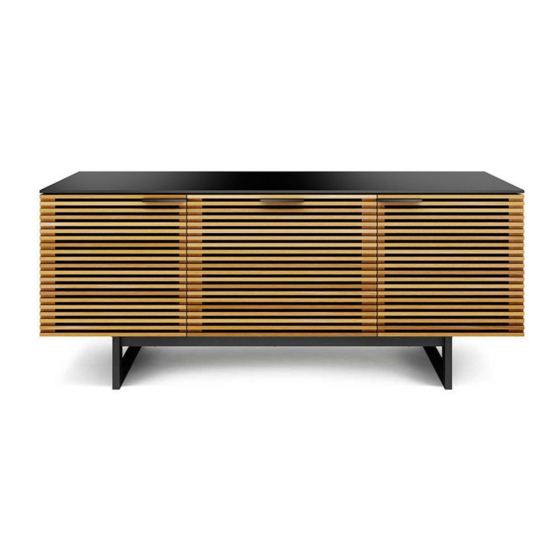

corridor
8177
8179
and
A - Phillips Screwdriver
x 1
B1 - Hex Wrench
x 1
B2 - Hex Wrench
x 1
C - Cabinet
x 1
D - 1/4-20 x 10 mm
Machine Screw
x 16
E - Metal Leg
x 2
F - Metal Rail
x 2
G - 1/4-20 x 60 mm
Machine Screw
x 6
H - M4 x 35 mm
Machine Screw
8177 x 6
8179 x 8
I - Door Pull
8177 x 3
8179 x 4
J - Rubber Bumper
x 8
K - Glass Top
x 1
L - Adjustable Shelf
x 2
M - Back Panel
x 2
a s s e m b l y
.
bdiusa
com
Corridor is engineered for easy assembly.
Carefully follow this procedure to prevent any
damage.
Placement and Maintenance
Corridor is designed for indoor use on level floors.
Clean wood veneer with a moist cloth. Clean
glass with glass cleaner.
NOTE: This instruction sheet is intended for the Corridor collection;
model 8179 is shown for illustration.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some
components are shipped inside the cabinet. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.
For your convenience, wheel assembly is pre-installed. Wheels can
be removed if desired.
Removal of wheels:
Detach Wheel Assembly from
Metal Leg (E) by removing the
Leveler and Screw.
Reinstall Leveler to Metal Leg
(E).
1
i n s t r u c t i o n s
@
customerservice
.
bdiusa
com
E
E
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BDI CORRIDOR 8177
Summary of Contents for BDI CORRIDOR 8177
- Page 1 The assembly workspace should be a non-marring surface such as carpet. For E - Metal Leg missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI Retailer.
- Page 2 Step 2 Build Base Assembly Slide Metal Leg (E) into Metal Rail (F) and attach by using Hex Wrench (B1) and Screw (D). Æ Æ Æ Æ Step 3 Carefully lay Cabinet (C) on its back. Using Hex Wrench (B1), attach the base assembly to the bottom of the Cabinet (C) with Screw (D) and Screw (G) *Note: Each of the metal legs has...
- Page 3 Step 4 Install Door Pulls and Rubber Bumpers Position the cabinet upright and install Door Pulls (I) using Screw (H) and Screwdriver (A). Install Rubber Bumper (J) at least one (1) inch from edges of the cabinet as shown in illustration 1.1. Step 5 Install Glass Place Glass Top (K) on top of Cabinet (C).
- Page 4 Adjustable Shelf (L) to the desired level. Only for Corridor 8177: Removing the drawer Pull the Top Drawer as far out as it will go. Locate the finger latch in the rail of the slide on each side of the Drawer. Press the Left Latch down and lift the Right Latch up simultaneously and slide the Top Drawer the rest of the way out.
- Page 5 Fine tuning your new BDI Corridor Home Theater Furniture These steps are to be followed after you have unpacked and completed the simple assembly instructions for your Corridor AV cabinet. Due to jostling in freight or perhaps an uneven floor, the doors on your Corridor cabinet may not appear to be in perfect alignment.
