Vision™ OPLC™ Models V230/260/280/290 (Non-color Screens)
Mounting
Before you begin, note that:
The mounting panel cannot be more than 5 mm thick
To minimize electromagnetic interference, mount the controller on a metal panel and
earth the power supply according to the details on page 5
1. Make a panel cut-out that suits your model controller.

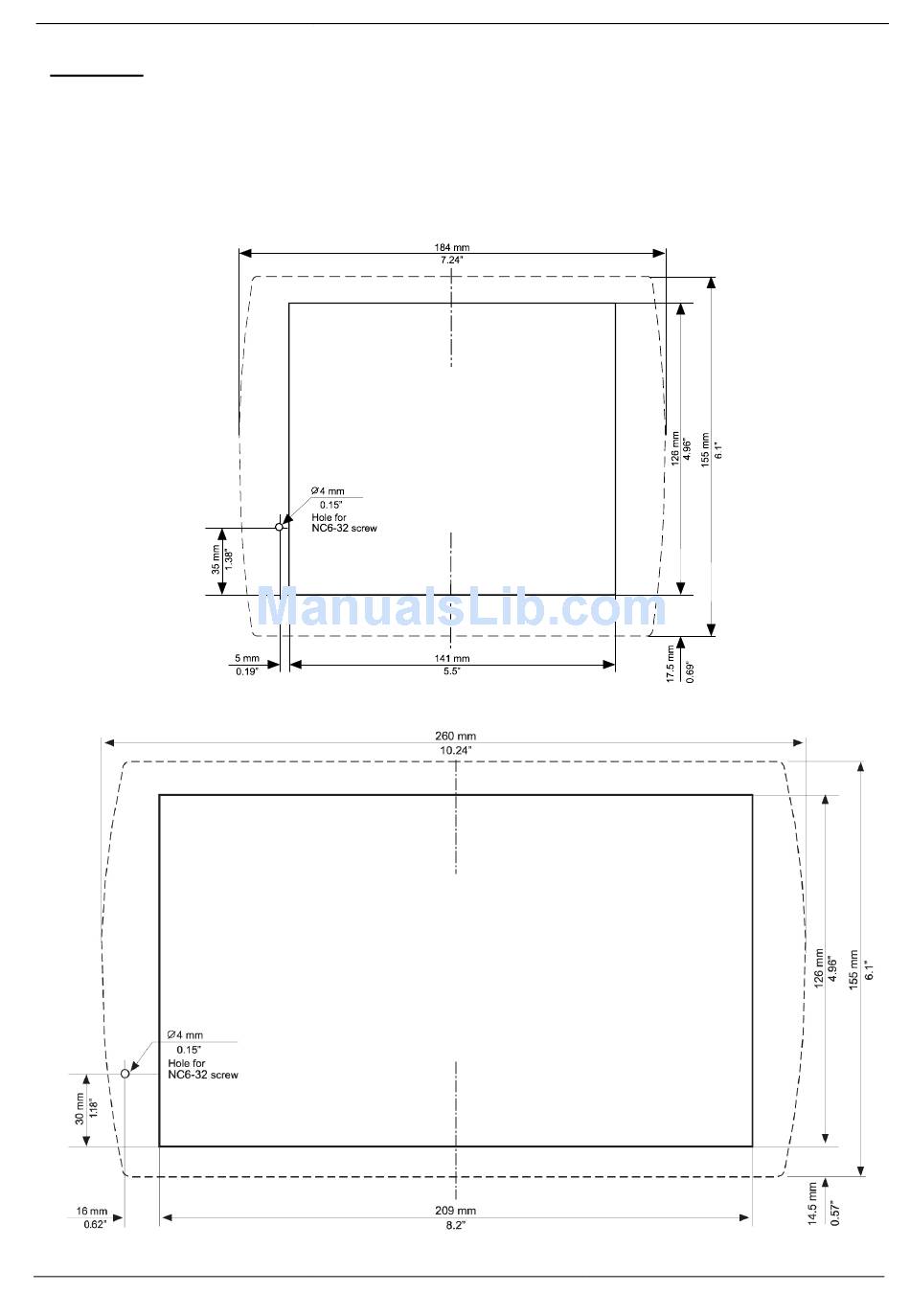

V230 Cut-out Dimensions
V260/280/290 Cut-out Dimensions
