Jazz OPLC™
JZ20-T40/JZ20-J-T40
Before using this product, the user must read and understand this document.
For additional information regarding this product, refer to the user guide and technical specifications.
All examples and diagrams are intended to aid understanding, and do not guarantee operation.
Unitronics accepts no responsibility for actual use of this product based on these examples.
Please dispose of this product according to local and national standards and regulations.
Only qualified service personnel should open this device or carry out repairs.
Failure to comply with appropriate safety guidelines can cause severe injury or property damage.
Do not attempt to use this device with parameters that exceed permissible levels.
To avoid damaging the system, do not connect/disconnect the device when power is on.
Environmental Considerations
Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,
moisture or rain, excessive heat, regular impact shocks or excessive vibration.
Ventilation: 10mm space required between the OPLCs' top/bottom edges & enclosure walls.
Do not place in water or let water leak onto the unit.
Do not allow debris to fall inside the unit during installation.
Mounting

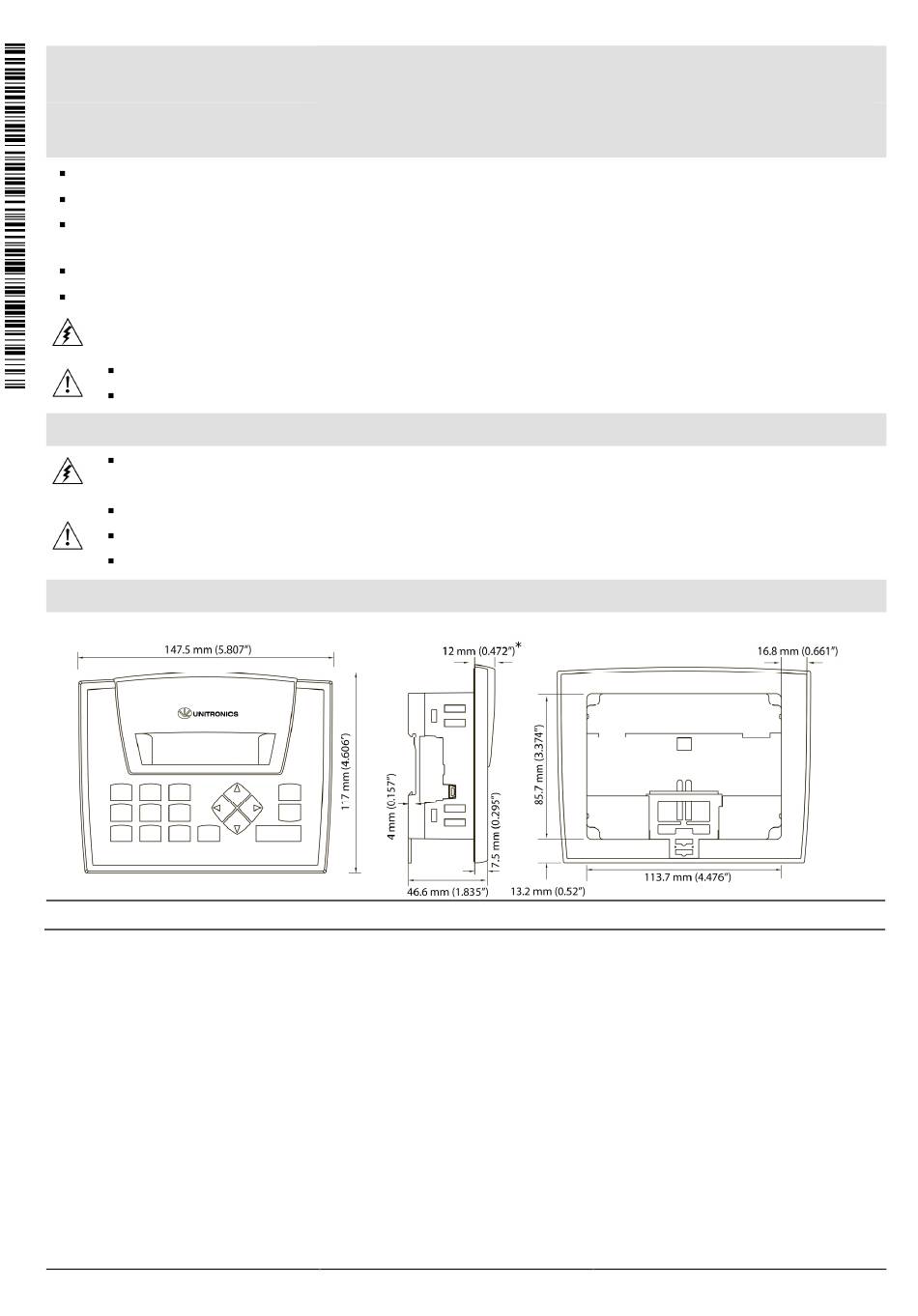

Dimensions
* Note that for JZ20-J modules those dimensions are 7.5 mm (0.295").
Unitronics
Micro-OPLC Installation Guide
16 Digital, 2 Analog/Digital, 2 Analog Inputs, 20 Transistor
Outputs
1
Advertisement
Related Manuals for Unitronics Jazz OPLC JZ20-T40
Summary of Contents for Unitronics Jazz OPLC JZ20-T40
- Page 1 All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. Please dispose of this product according to local and national standards and regulations.
- Page 2 To avoid damaging the wire, use a maximum torque of 0.5 N·m (5 kgf·cm). Do not use tin, solder, or any substance on stripped wire that might cause the wire Caution strand to break. Install at maximum distance from high-voltage cables and power equipment. Unitronics...
-
Page 3: Wiring Procedure
In addition, 1 input may be wired as a pnp input, while the other is wired as an analog input. Note that if 1 input is wired as an npn input, the other may not be wired as an analog input. AN0 and AN1 are analog (current) inputs that may be wired using 2, 3, or 4 wires. Unitronics... - Page 4 In either case, the n/p pins must be connected. Input wiring, npn (sink) Input wiring, pnp (source) Input wiring (I0-I15), pnp (source), I16-I17, npn (sink) Digital Outputs, Outputs’ Power Supply +V01 is the power supply for outputs O0–O11. +V02 is the power supply for outputs O12 –O19. Unitronics...
-
Page 5: Analog Inputs
Note: Shields should be connected at the signal source. Analog Input wiring, current, (AN0-AN1) 2 or 3-wire 4-wire Analog Input wiring, voltage, (AN2-AN3) Note: If either I16 or I17 is wired as an npn digital input, the remaining input may not be wired as an analog input. Unitronics... - Page 6 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.
