Unitronics Vision 230 Installation Manual page 9

Installation Guide
CANbus
These controllers comprise a CANbus port. Use this
to create a decentralized control network using one
of the following CAN protocols:
 CANopen: 127 controllers or external
devices
 Unitronics' proprietary UniCAN: 60
controllers, (512 data bytes per scan)
The CANbus port is galvanically isolated.

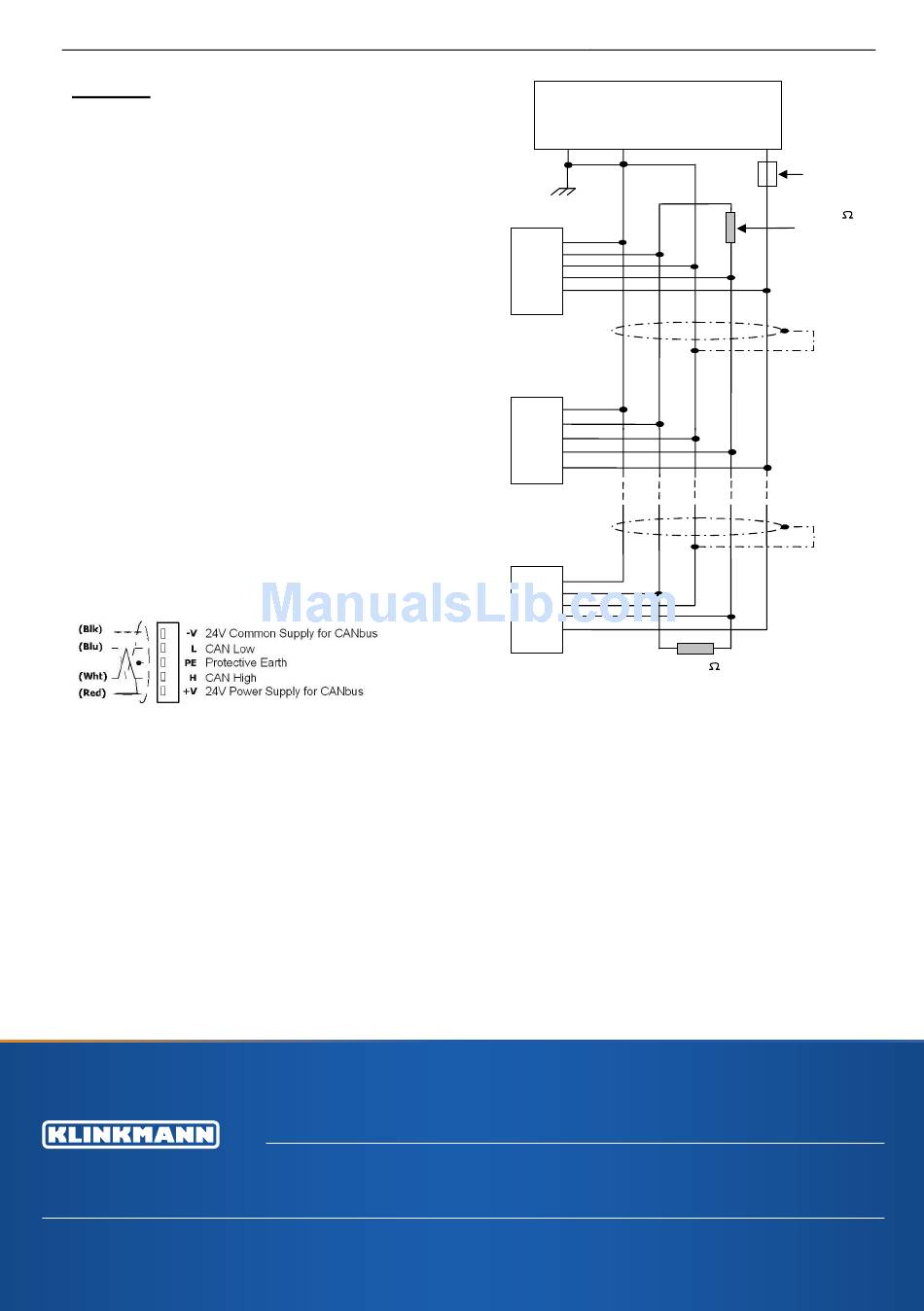

CANbus Wiring
Use twisted-pair cable. DeviceNet® thick shielded
twisted pair cable is recommended.
Network terminators: These are supplied with
the controller. Place terminators at each end of the
CANbus network.
Resistance must be set to 1%, 121Ω, 1/4W.
Connect ground signal to the earth at only one
point, near the power supply.
The network power supply need not be at the end of
the network.
CANbus Connector
Riga
tel. +371 6738 1617
klinkmann@klinkmann.lv
Helsinki
tel. +358 9 540 4940
automation@klinkmann.fi
Yekaterinburg
tel. +7 343 287 19 19
yekaterinburg@klinkmann.spb.ru
Vilnius
tel. +370 5 215 1646
post@klinkmann.lt
24V Power
Supply
-
-V
L
PE
H
+V
-V
L
PE
H
+V
-V
L
PE
H
+V
St. Petersburg
tel. +7 812 327 3752
klinkmann@klinkmann.spb.ru
Samara
tel. +7 846 273 95 85
samara@klinkmann.spb.ru
Tallinn
tel. +372 668 4500
klinkmann.est@klinkmann.ee
+
Circuit
protection
device
121
terminating
resistor
121
terminating
resistor
