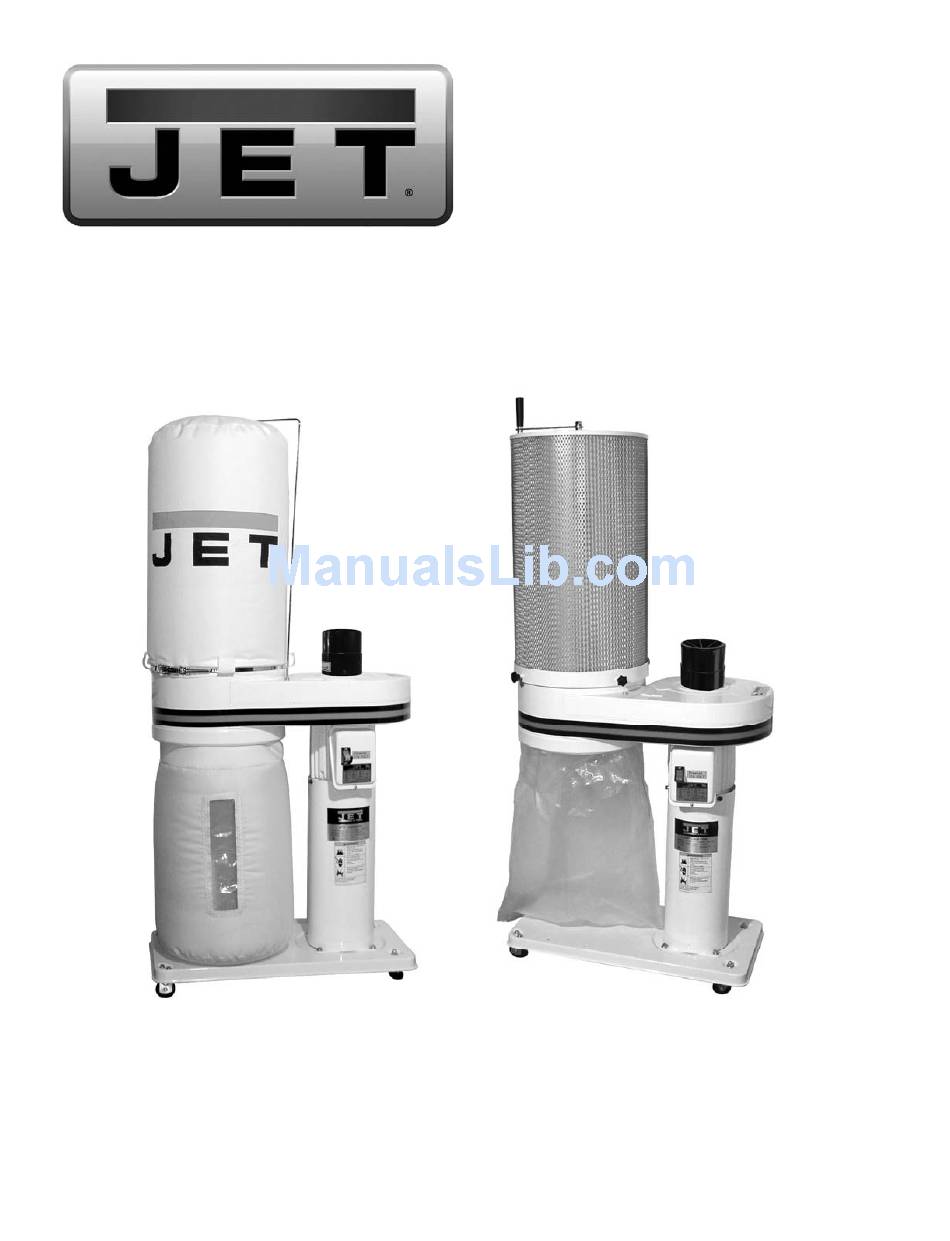

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Dust Collector Models: DC-650BK, DC-650CK, DC-650MK DC-650BK shown DC-650CK shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-708642 Ph.: 800-274-6848 Revision E1 01/2017 www.jettools.com Copyright © 2017 JET...
-
Page 2: Warranty And Service
Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday Warranty Period The general warranty lasts for the time period specified in the literature included with your product or on the official JET, Wilton or Powermatic branded websites. -
Page 3: Table Of Contents
Changing Operating Frequency ........................12 Installing the DC-RC Remote Power Control ....................12 Maintenance................................ 13 Cleaning the Filter Bag – DC-650BK/MK ......................13 Removing the Collector Bag – DC-650BK ...................... 13 Cleaning the Filter – DC-650CK ........................13 Removing the Collector Bag – DC-650CK and DC-650MK ................13 Motor ................................ -
Page 4: Warnings
5. Do not use this dust collector for other than its intended use. If used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. -
Page 5: Introduction
If there are any questions or comments, please contact either your local supplier or JET. JET can also be reached at our website: www.jettools.com Read and understand the entire contents of this manual before attempting set-up or operation! Failure to comply may cause serious injury. -
Page 6: Specifications
Stock Number (Transmitter only) ....................708636T The above specifications were current at the time this manual was published, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Unpacking
2 – 3/8" Hex Nuts 4 – M10 Flat Washers 4 – M8 x 12 Cap Screws 4 – M8 Flat Washers 1 – 5mm Hex Wrench Canister Filter Kit DC-650BK (Stock No 708737C) DC-650CK 1 – Canister Filter DC-650MK 1 – Handle 1 –... -
Page 8: Base Unit Assembly
Tighten all hardware. Figure 3 This completes the Base Unit assembly. If you purchased the DC-650BK/MK Dust Collector (filter bag), continue on the following page. If you purchased the DC-650CK Dust Collector (canister filter), proceed to Canister Kit Assembly on page 10. -
Page 9: Mounting The Inlet Guard Assembly
Tighten it securely. Figure 4 Filter Bag Kit Assembly If you purchased Model DC-650BK or DC-650MK Dust Collector, this section describes the assembly and installation of the contents of the Filter Bag Kit (SN 708642B and 708642MF). -
Page 10: Canister Kit Assembly
Canister Kit Assembly If you purchased Model DC-650CK Dust Collector, this section describes the assembly and installation of the contents of the Canister Kit (SN 708737C). Canister Filter Installation Referring to Figure 7: 1. Place the canister filter so that it fits snugly over the housing and tighten the four knobs (A). -
Page 11: Electrical Connections
This machine is intended for The DC-RC RF Remote Power Control unit is indoor use only. available as an optional accessory (contact your JET 1. Plug the dust collector into the main unit dealer or Customer Service by calling the number on (Figure 12) and plug the main unit into the power the cover). -
Page 12: Changing Operating Frequency
3. On the main unit place the switch to the ON using the same type remote control do not turn position (Figure 11A). The red LED on the main unit should light up. Installing the DC-RC Remote Power 4. Press button remote control... -
Page 13: Maintenance
Removing the Collector Bag – DC-650BK collector to the machine being operated. Dryer vent hose is not acceptable for this purpose. Contact your nearest JET distributor for the full line of JET Dust Wearing a particle mask/respir- Collector Hoses and Accessories. Customize your... -
Page 14: Parts
37 ..... ST040200 ....Tapping Screw ............M4x10 ........1 ....DC-IGW ....Inlet Guard Warning Label (not shown) ..............1 ....DC-MBW ....Motor Bracket Warning Label (not shown) ............. 1 ....STRIPE-1-3/4 ..JET Stripe .............1-3/4” wide ......per ft....DC650C-HP ..... Hardware Package .................... -
Page 15: Parts Breakdown - Base Machine
Parts Breakdown – Base Machine... -
Page 16: Canister Filter Assembly
Description Size 1 ....708737 ..... Canister Filter ......................1 2 ....331037 ..... JET Knob ..............M6x20 ........4 3 ....331047 ..... Pad ......................... 1 4 ....331042 ..... Support ........................1 5 ....ST049200 ....Tapping Screw ............M4x8 ......... 4 6 .... -
Page 17: 30 Micron Filter Bag Assembly
30 Micron Filter Bag Assembly Index No. Part No. Description Size 1 ....708695 ..... Filter Bag .............30 Micron ........1 2 ....AB422028 ....Retainer Strap ....................... 1 3 ....708697A ....Collector Bag ......................1 4 ....427043 ..... Hanger ........................1 5 .... -
Page 18: Micron Filter Bag Assembly
5 Micron Filter Bag Assembly Index No. Part No. Description Size 1 ....708701 ..... Filter Bag .............5 Micron ........1 2 ....AB422028 ....Retainer Strap ....................... 1 3 ....709565 ..... Clear Plastic Collection Bag (Package of 5)............1 4 .... -
Page 19: Wiring Diagrams For Dc-650
Wiring Diagrams for DC-650... - Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
