Summary of Contents for Jet DC-650SB

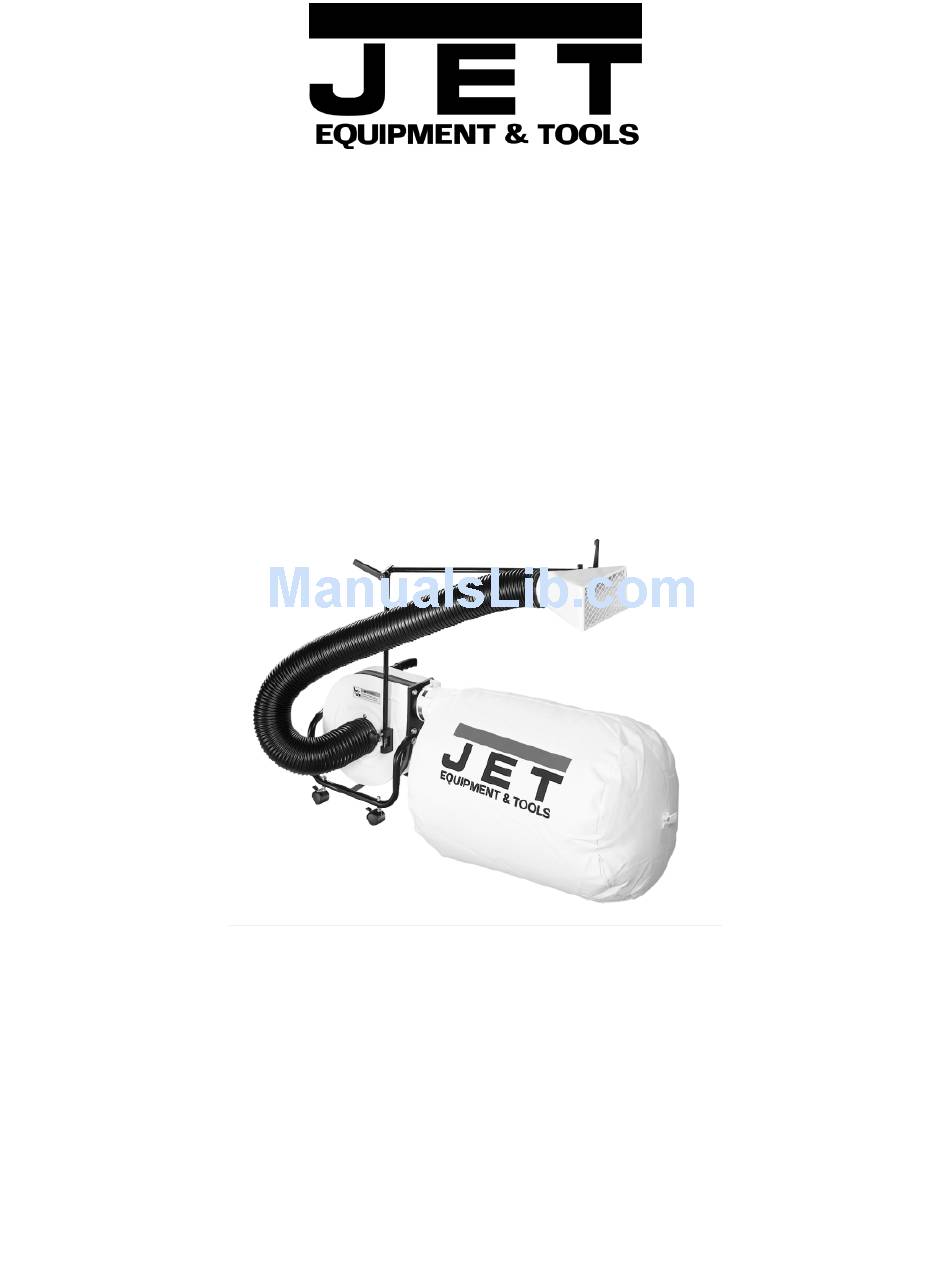

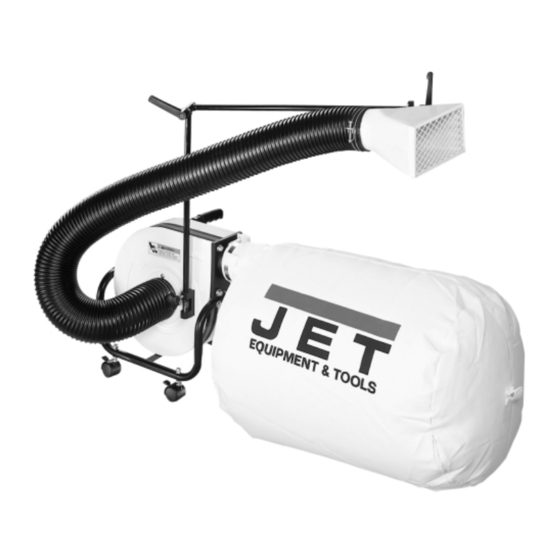

- Page 1 OWNER'S MANUAL DC-650SB Single Bag Dust Collector (shown with accessory JW1060) JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 Phone:253-351-6000 A WMH Company Auburn, WA 98071-1349 Fax: 1-800-274-6840 www.jettools.com e-mail jet@jettools.com M-708616 02/00...
-
Page 2: Warranty
Important Information 2-YEAR JET offers a two-year limited warranty on this product LIMITED WARRANTY REPLACEMENT PARTS Replacement parts for this tool are available directly form JET Equipment & Tools. To place an order, call 1-800-274-6848. Please have the following information ready: 1. -
Page 3: Warning
WARNING Read and understand the entire contents of this manual before attempting assembly or operation. Do not use this machine until proper training and knowledge has been obtained. Do not leave Dust Collector when plugged in. Unplug from outlet when not in use and before servicing. -
Page 4: Grounding Instructions
Grounding Instructions Caution! This tool must be grounded while in use to protect the operator from electric shock. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. -
Page 5: Table Of Contents
Warranty ............................ 1 Warning............................2 Grounding Instructions........................ 3 Specifications ..........................4 Table of Contents ........................4 Unpacking DC-650SB......................... 5 Assembly............................ 6 Turning the Machine On & Off ....................6 Operational Hints........................7 Parts Breakdown ........................8 Parts List ............................ 9 Wiring Diagram ........................ -
Page 6: Unpacking Dc-650Sb
WARNING Read and understand the entire contents of this manual before attempting assembly or operation of the dust collector! Failure to comply may cause serious injury! Unpacking Remove all contents from the shipping carton. Report any damage to your distributor. Do not discard any shipping material until after the dust collector has been assembled and is running properly. -
Page 7: Assembly
Assembly W ARNING The dust collector must be disconnected from the power source (unplug) during assembly. Failure to comply may result in serious injury! Install four casters to the the frame as pictured in Fig. 1. Thread the hex nut (A, Fig. -
Page 8: Operational Hints
Operational Hints C aution Wearing a particle mask/respirator for protection against fine dust particles during cleaning is highly recommended. Clean the collector bag frequently to keep the collector's performance at its optimum. Always wear a particle mask while cleaning the bag. To clean: Disconnect the machine from the power source. -
Page 9: Parts Breakdown
Parts Breakdown... -
Page 10: Parts List
Parts List for the DC-650SB Index Part Description Size Quantity 1..412042......Impellar Housing ..............1 2..4122105AS ....Motor..................1 .... 991200......Capacitor (not shown)...............1 .... 991201......Capacitor Cover (not shown) ............1 .... 4122105-1.....Motor Fan (not shown)..............1 .... 4122105-2.....Motor Fan Cover (not shown) ...........1 3.. -
Page 11: Wiring Diagram
Wiring Diagram...
