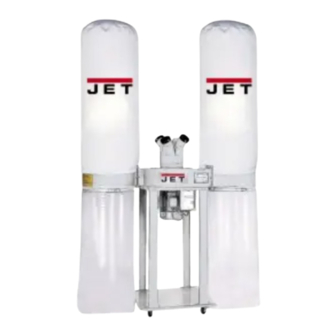

- Page 1 DC-3500 DUST COLLECTOR Original: Operating Instructions Walter Meier (Tool) AG Tämperlistrasse 5 CH-8117 Fällanden Switzerland Phone +41 44 806 47 48 +41 44 806 47 58 jetinfo.eu@waltermeier.com www.jettools.com M-10001056T 2013-04...
- Page 2 The Operator must thoroughly Read and understand this Manual before operating the Dust collector or commencing Any servicing. Care should be Taken to follow all safety rules And warning instructions. CAUTION: READ THE INSTRUCTION CAREFULLY BEFORE ASSEMBLY, TESTING & OPERATING. •...
-
Page 3: Table Of Contents
CONTENTS: Important Safety Rules ..................2 Safety Labels ....................6 Grounding Instructions ..................8 Specifications ....................9 Contents of Package & Transportation ............10 Assembly Instruction ..................11 Outside Dimension ..................15 Explore Diagram .................... 16 Parts List ......................17 Wiring Diagram .................... -
Page 4: Important Safety Rules
IMPORTANT SAFETY RULES Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. - Page 5 11. USE RIGHT TOOL. Don’t force tool or attachment to 23. NEVER LEAVE TOOL RUNNING UNATTENDED. do a job for which it was not designed. TURN POWER OFF. Don’t leave tool until it comes to a complete stop. 12. WEAR PROPER APPAREL. No loose clothing, gloves, neck-ties, rings, bracelets, or other jewelry to 24.
- Page 6 IMPORTANT SAFETY RULES FOR DUST COLLECTORS WARNING: Basic precautions should always be 11. DO NOT unplug the dust collector by pulling on the followed when using your dust collector. To reduce the power cord. ALWAYS grasp the plug, not the cord. risk of injury, electrical shock or fire, comply with the 12.
-
Page 9: Grounding Instructions
GROUNDING INSTRUCTIONS The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 10: Specifications
Overall Dimensions of Unit------------------------------------------------------------- 2200 x 660 x 2620mm N.W. ----------------------------------------------------------------------------------------- 122 KGS G.W. ----------------------------------------------------------------------------------------- 172 KGS CUFT----------------------------------------------------------------------------------------- 25’ Noise: Average A weighted sound pressure level of DC-3500: 78.3 dB (A) Associated uncertainty K = 4 dB Measured made in accordance with EN ISO 3746... - Page 11 CONTENTS OF PACKAGE: Description Description Collector Body & Fan / Nuts, Screws, Washer, Motor Assembly Spring Washers, and Wrench Collector Body Hanger Inlet Gasket Main Base Casters Right and Left Side Legs Upper Filter Bag Bag Support Bottom Plastic Bag TRANSPORTATION: Packing handling must be carried out exclusively using a forklift truck.
-
Page 12: Assembly Instruction
ASSEMBLY INSTRUCTION: STEP 1: To assemble, position the main base upside down and locate the casters so they are with in easy reach. Mounting the casters to the main base using sixteen 5/16” x 1/2” hex. bolts provided. (See FIG. 1) (FIG.1) STEP 2: Place the collector body and fan motor assembly... - Page 13 STEP 4: Mounting the gasket to the outlet of collector body. Connecting the collector body and fan and motor assembly by using sixteen 5/16” x 1” hex. head screws. Fasten the screws tightly. (See FIG. 4) (FIG.4) STEP 5: Connecting the upper bag support and hanger by using four 1/4”...
- Page 14 STEP 6: Hook the top loop of the upper bag over the support bracket. Place the upper bag and bottom bag over the top edge of the collector and pull the strap tight to secure. Slip the bag clamp around the filter bag and tighten down. (See FIG.
-
Page 15: Outside Dimension
OUTSIDE DIMENSION:... -
Page 16: Explore Diagram
EXPLODED DIAGRAM:... -
Page 17: Parts List
Description Size 1 ..... DC-3500-01 ..Caster ............3 “ ........8 2 ..... DC-3500-02 ..Hex. Soc. Set Screw ........5/16” x 1/2” ......56 3 ..... DC-3500-03 ..Base ......................1 4 ................................5 ..... DC-3500-05 ..Right Support ................... 2 6 ..... -
Page 18: Wiring Diagram
WIRING DIAGRAM:... -
Page 19: Maintenance / Service
MAINTENANCE / SERVICE: 1. All maintenance / service work are carried out under the power supply being interrupted. 2. The work of damaged external power cord is carried out by the qualified electrical technician. Never doing it by yourself. 3. Replace the filter or bags: Please wear the suitable personal protection equipment (e.g. respiratory mask) 4.
