WEA453e Installation Manual
3.3

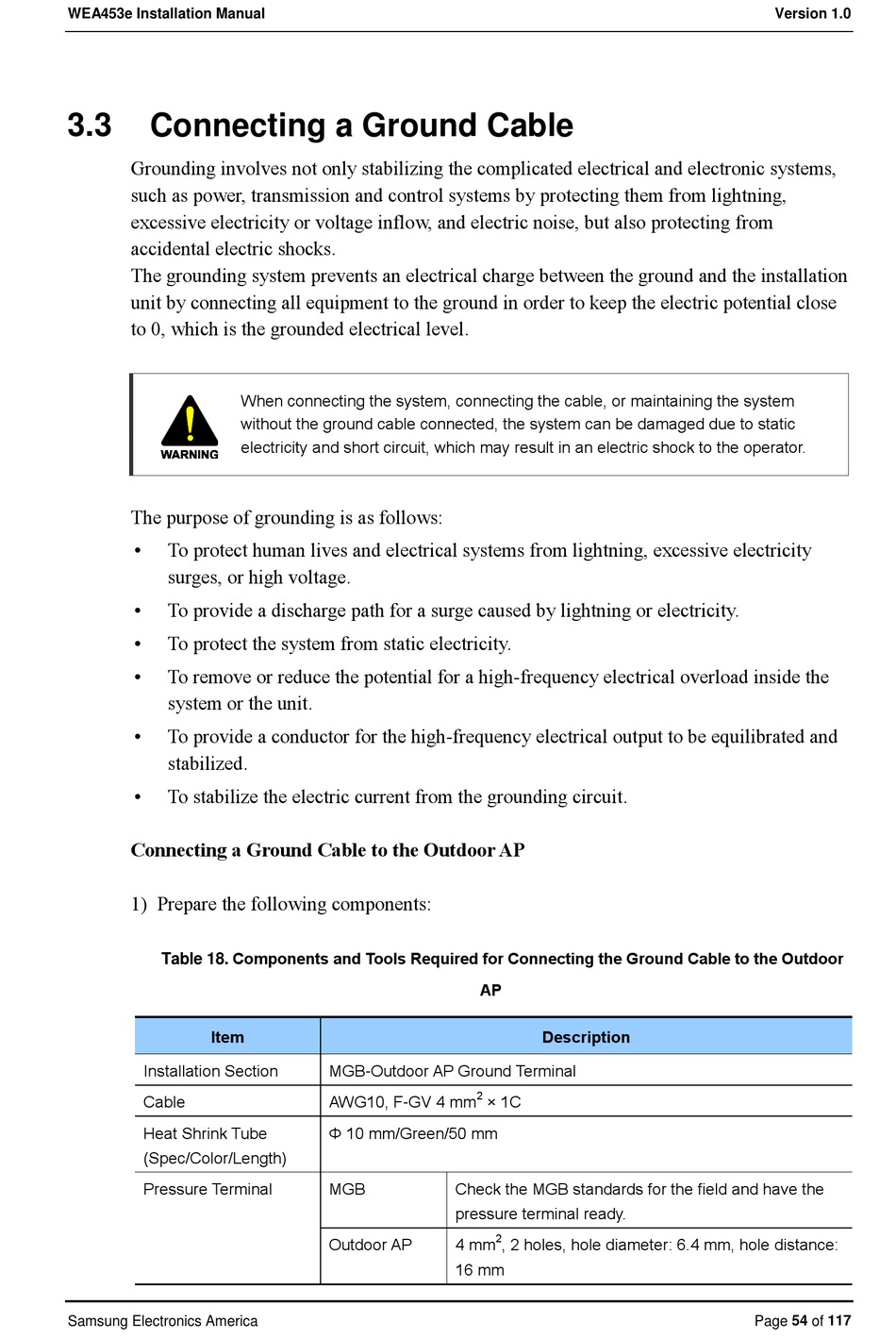

Connecting a Ground Cable

Grounding involves not only stabilizing the complicated electrical and electronic systems,
such as power, transmission and control systems by protecting them from lightning,
excessive electricity or voltage inflow, and electric noise, but also protecting from
accidental electric shocks.
The grounding system prevents an electrical charge between the ground and the installation
unit by connecting all equipment to the ground in order to keep the electric potential close
to 0, which is the grounded electrical level.
The purpose of grounding is as follows:
To protect human lives and electrical systems from lightning, excessive electricity

surges, or high voltage.
To provide a discharge path for a surge caused by lightning or electricity.

To protect the system from static electricity.

To remove or reduce the potential for a high-frequency electrical overload inside the

system or the unit.
To provide a conductor for the high-frequency electrical output to be equilibrated and

stabilized.
To stabilize the electric current from the grounding circuit.

Connecting a Ground Cable to the Outdoor AP
1) Prepare the following components:
Table 18. Components and Tools Required for Connecting the Ground Cable to the Outdoor
Item
Installation Section
Cable
Heat Shrink Tube
(Spec/Color/Length)
Pressure Terminal
Samsung Electronics America
When connecting the system, connecting the cable, or maintaining the system
without the ground cable connected, the system can be damaged due to static
electricity and short circuit, which may result in an electric shock to the operator.
MGB-Outdoor AP Ground Terminal
AWG10, F-GV 4 mm
Φ 10 mm/Green/50 mm
MGB
Outdoor AP
AP
Description
2
× 1C
Check the MGB standards for the field and have the
pressure terminal ready.
2
4 mm , 2 holes, hole diameter: 6.4 mm, hole distance:
16 mm
