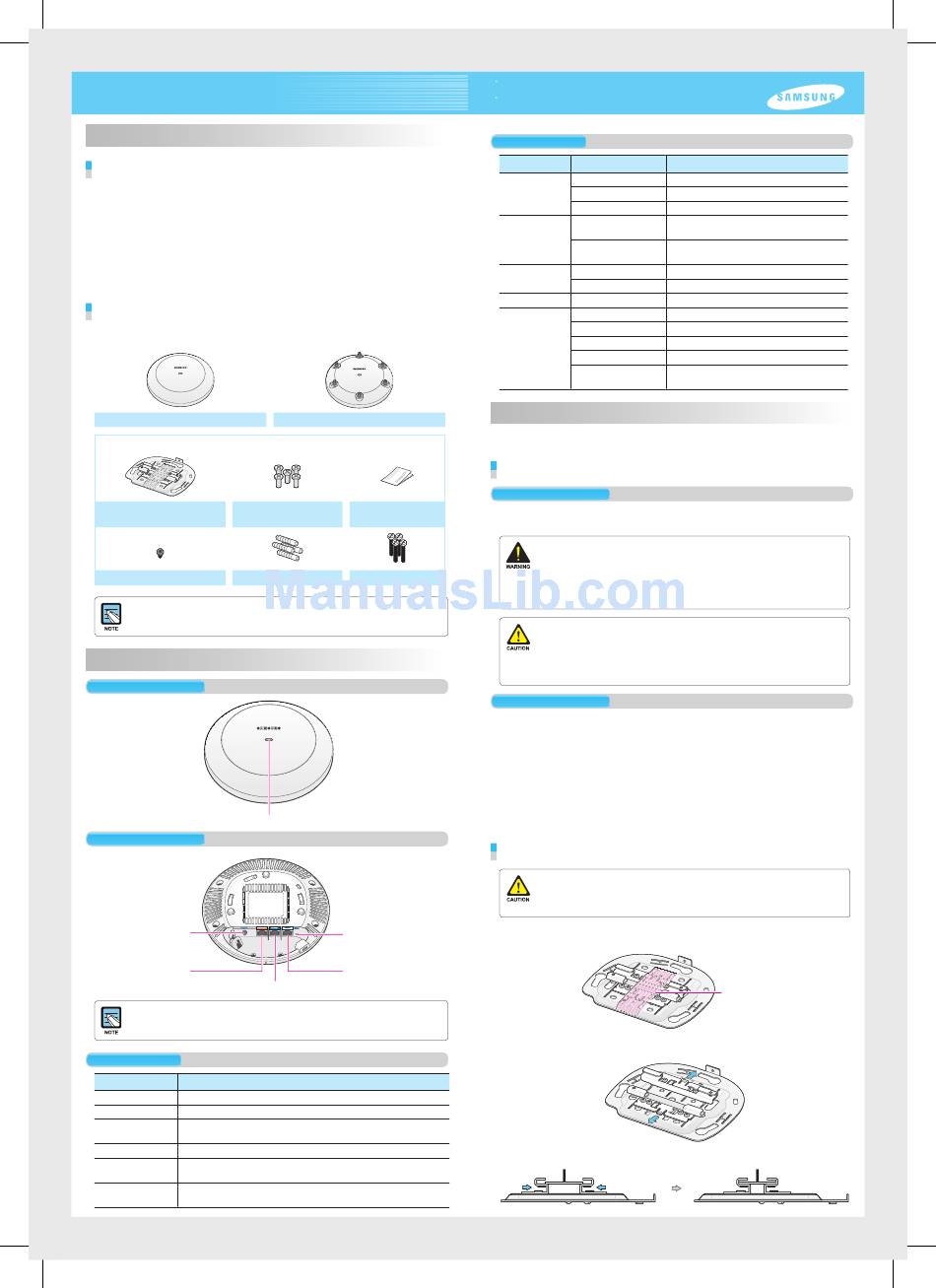

Samsung WEA412i Quick Installation Manual

WEA400 Series Quick Installation Manual
Introduction
What is the WEA400 series?
The WEA400 series is an AP for the Samsung WE wireless LAN, which connects a UE
such as a smart phone, a tablet PC or a laptop that supports the wireless LAN to a wired
network. The WEA400 series supports the following features:
- IEEE 802.11a/b/g/n/ac standard
- PoE (Power over Ethernet) IEEE 802.3af/802.3at
- WEA412i: 2 × 2 MIMO (Multiple Input Multiple Output)
- WEA403i/403e/413i: 3 × 3 MIMO (Multiple Input Multiple Output)
- Wireless LAN through both 2.4 GHz and 5 GHz bandwidth simultaneously
- WEA403Si supports to connect various sensors and equipments to a network with
WLAN, BLE, ZigBee.
Components
After unpacking the WEA400 series, check whether all of the following components are
included.
WEA403i/412i/413i/403Si
Common merchandise
5 M3 × L6 screws
Mounting Bracket
(Including 1 spare)
Security Torx (T10) Screw Plastic 4 anchors
- It is recommended to keep all packaging materials and the box.
- The power adapter and the external antenna for WEA403e are sold separately.
When necessary, please contact the place of purchase.
Names and Functions
Front View
Status LED
Rear View
DC Input
Ethernet Port (PoE)
Ethernet Port
Dust covers are installed on power ports (DC 48 V/0.75 A), Ethernet ports and console ports
(CONSOLE). Remove the covers before use.
Interface
Port Name
Status LED Displays the status information of the WEA400 Series via LED.
DC Input Used when a power adapter is used for power supply.
Ethernet Port (PoE) Supports 1000 BASE-T Gigabit Ethernet and PoE IEEE
802.3af/802.3at.
Ethernet Port Supports 1000 BASE-T Gigabit Ethernet.
Console Port Used for checking the operational status of the WEA400 series and
for CLI input.
Factory Reset Used for initialization when commencing factory shipment of the
Switch WEA400 series.
WEA403e
Installation Manual
M4 × L28 4 screws
Factory Reset Switch
Console Port
Description
This manual describes the configuration of the Wireless Enterprise WEA400 series and its
installation procedures.
The installation procedures are described based on the WEA403i/412i/413i/403Si configurations.
The same installation procedures apply to the WEA403e model, except for the antenna installation.
Status LED
LED Status
System start White On Initial LED status
status
Blue On Device reset and test in progress
Red On Booting failure (Device reset failure)
Provisioning Red, green and off APC connection in progress
Status repeated (Network link normal)
Green blinking CAPWAP connection in progress
(APC server connection normal)
Normal Green On When there is no connected wireless UE
operation status
Blue On When there is a connected wireless UE
Upgrade Green blinking Software upgrade in progress
Error status Red blinking Physical connection error of network
Yellow blinking IP address conflict
Purple blinking Dynamic IP address allocation failure
Bluish-green blinking Logical connection error of network
Red, green and off Wireless interface error
repeated
Installation
The WEA400 series can be installed on ceilings or walls.
Please check whether all the components are included before installation.

Before Installation

Safety Requirements
Risks may be caused when the following safety warnings are not properly observed.
For safe use, make sure to be well-informed.
- There is an electrical risk with the product. Make sure that the power is off during installation
and do not proceed with the installation when there is current leakage. Use of products with
current leakage may cause serious electrical shock to the user.
- Wear anti-static gloves or take appropriate actions to prevent ESD when handling the product.
- Do not connect a phone line connector to the Etherner port. It may damage the product.
- This product must be connected to ta power supply in compliance with IEEE 802.3af/at or to a
limited power supply in compliance with IEC/EN/UL 60950-1.
- This product must be installed or removed only by appropriately-trained service personnel.
- This product operates with SELV (Safety Extra Low Voltage) according to IEC/EN/UL 60950-1.
- All interconnecting equipment including this product must be installed within the same
building. For details, refer to Environment A of IEEE 802.3af/at standard.
- This product must be installed with at least 3 m or more distance from the WiMAX/3G/4G
repeater or antenna.
Installation Instructions
The instructions below must be observed when installing.
- It must be installed in a place that can be easily accessed for product installation, cable
connection and maintenance.
- The PoE LAN cable must be always installed away from any electrical interference
source such as power lines, fluorescent lights or transmitters.
- The PoE LAN cable must be CAT 5E or higher.
- When PoE is unavailable, a power adapter (sold separately) can be used.
The 3-pin (including ground) power socket that supplies 100~240 V AC, 50~60 Hz
must be located within 2 m from each equipment and the power must be supplied
through an independent circuit breaker. It is recommended to use the equipment that
uses a filter or a surge.
Installation on Ceilings (When the ceiling type is T-bar)
- When incorrectly installed on the ceiling, the WEA400 series may drop onto a person or
equipment. Therefore, make sure to fix it firmly.
- If the ceiling type is not T-Bar, please refer to the 'Installation Manual' provided separately.
For this installation manual, please contact the dealer.
1.
Remove the holding tape that was attached to fix the ceiling clip.
2.
Open the ceiling clip so that it is wider than the width of the T-bar.
3.
Move the ceiling clip so that it is appropriate for the T-bar width.
Description
Holding tape
