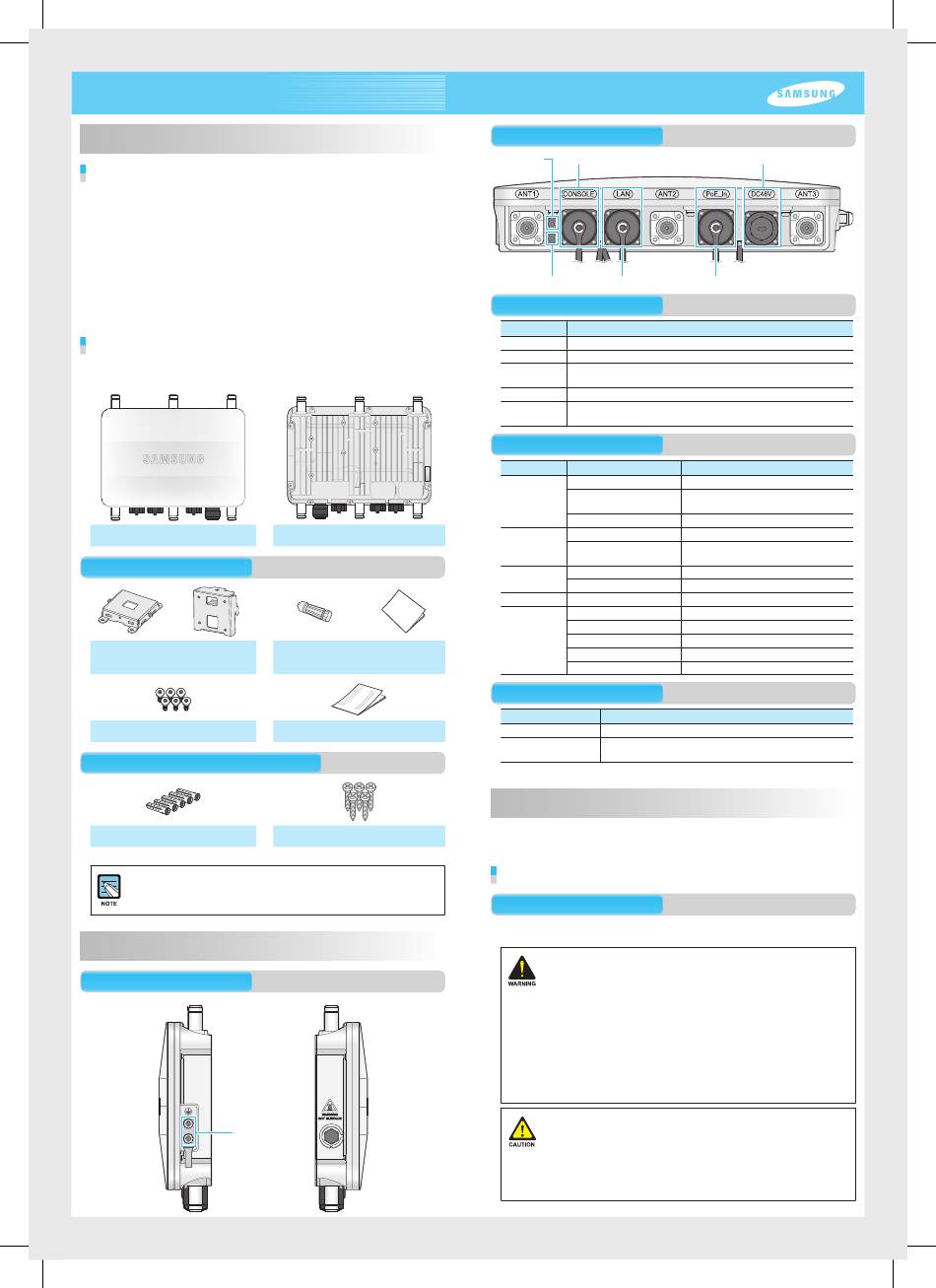

WEA463e Quick User Guide
Introduction
What is WEA463e?
The WEA463e is an 802.11ac-based outdoor Wireless Enterprise AP that
supports Mesh Networking. It connects the UE that supports wireless LAN,
such as a smartphone, tablet, or notebook, to a wired network in an outdoor
environment.
The WEA463e supports the following features:
- IEEE 802.11a/b/g/n/ac standard
- Power over Ethernet (PoE) IEEE 802.3af/802.3at
- 3 × 3 Multiple Input Multiple Output (MIMO)
- Wireless LAN through both 2.4 GHz and 5 GHz bandwidths
- Temperature Range: -40~+55°C
- Environment Condition: IP66 & IP67
Components
After unpacking the WEA463e, confirm that all of the following items have been
included:
Front
Common Components
Mount, Unit Bracket
6 M4 × L10 Screws
Wall-Mount Installation Materials
5 plastic Anchors
It is recommended that you keep the box and all of the
packing materials.
Name and Function
Side
Ground Wire
Rear
Waterproof Connector
for Ethernet Cable, Installation Guide
Quick Start Guide
5 M4 × L25 Screws
This manual describes the Wireless Enterprise WEA463e
configuration and installation instructions.
Base
LED Status Console Port, Factory Reset Switch
Indicator
Backhaul LED Ethernet Port
Interface
Interface
LED Status Displays the status information of WEA463e using an LED.
DC Input Connects the power adaptor.
Ethernet Port Supports a 1000 BASE-T Gigabit Ethernet and PoE IEEE
(PoE) 802.3af/802.3at connection.
Console Port Used to check the operational status of the WEA463e and to input the CLI.
Factory Used to switch the WEA463e to the initial factory settings.
Reset Switch
LED Status Indicator
LED Status
System Start White
Blue
Red
Provisioning Repeating red and green
Blinking green
Normal Green
Operations
Blue
Upgrade Blinking blue
Failure Blinking red
Blinking orange
Blinking violet
Blinking bluish green
Repeating Red and Blue
Backhaul LED
LED
Connection Ready White LED On
Connection Complete If connected with AP, LED blinks red, white, green, blue color
sequentially according to signal strength.
※ LED turns off when it does not configured for Mesh AP.
Installation
The WEA463e can be installed on a pole or on a wall.
Please confirm that all of the components have been included before installation.
Install the product in a vertical position and ensure that I/O ports are facing down.
Before Installation
Safety Requirements
Carefully observe the following safety warnings in order to avoid the risk of
damage or injury. Always follow these safety precautions when using the product.
- There is a risk of electrical shock. Make sure that the
power is turned off during installation. Do not proceed with
the installation if there is any electrical current leaking.
It may cause a serious electric shock.
- Wear anti-static gloves or take an appropriate action to
prevent ESD when handling the product.
- Do not connect a phone line to an Ethernet port.
This may damage the product.
- This product must be connected to a power supply in
compliance with IEEE 802.3af/at or connected to a limited
power supply in compliance with IEC/EN/UL 60950-1.
- This product must be installed or removed by only
appropriately trained service personnel.
- For outdoor use or installation outdoors. For more details,
refer to "Environment" in the IEEE 802.3af/at standards.
- This product must be installed at least 3 m or further away
from a WiBro/3G/4G repeater or antenna.
DC Input
Ethernet Port (PoE)
Description
Description
Initial LED status
Device reset and diagnostic test in
progress
Booting failure (device reset failure)
Connecting APC (network link normal)
Connecting CAPWAP (APC server
connection status normal)
No wireless UE connected
Wireless UE connected
Upgrading software
Network connection failure (physical)
IP address conflict
Dynamic IP address allocation failure
Network connection failure (logical)
Wireless interface failure
Stuatus and description
