5.12.6 STGM-L2B16f

Pin Name
1 TEDS TEDS
2 Exc+ Excitation +
3 Exc- Excitation -
4 R+ ¼ Bridge/Shunt
5 In+ Input +
6 nc Not Connected
7 Sns+ Sense +
8 Sns- Sense -
9 GND Ground
10 In- Input -
11 +5V +5V (max. 100mA) supply
12 +14V5 +14.5V (max. 50mA) supply
13 IN0/A Counter input IN0/A
14 IN1/B Counter input IN1/B
15 IN2/Z Counter input IN2/Z
16 -14V5 -14.5V (max. 50mA) supply
HINT
5.12.6.1 STGM-L2B16f: Voltage
Voltage - Single Ended
measurement innovation measurement innovation
Page 84/166
DEWESoft® DEWESoft® DEWESoft®
Description
You can use the analogue input and counters at the same time.
measurement innovation
www.dewesoft.com
DEWESoft® DEWESoft®

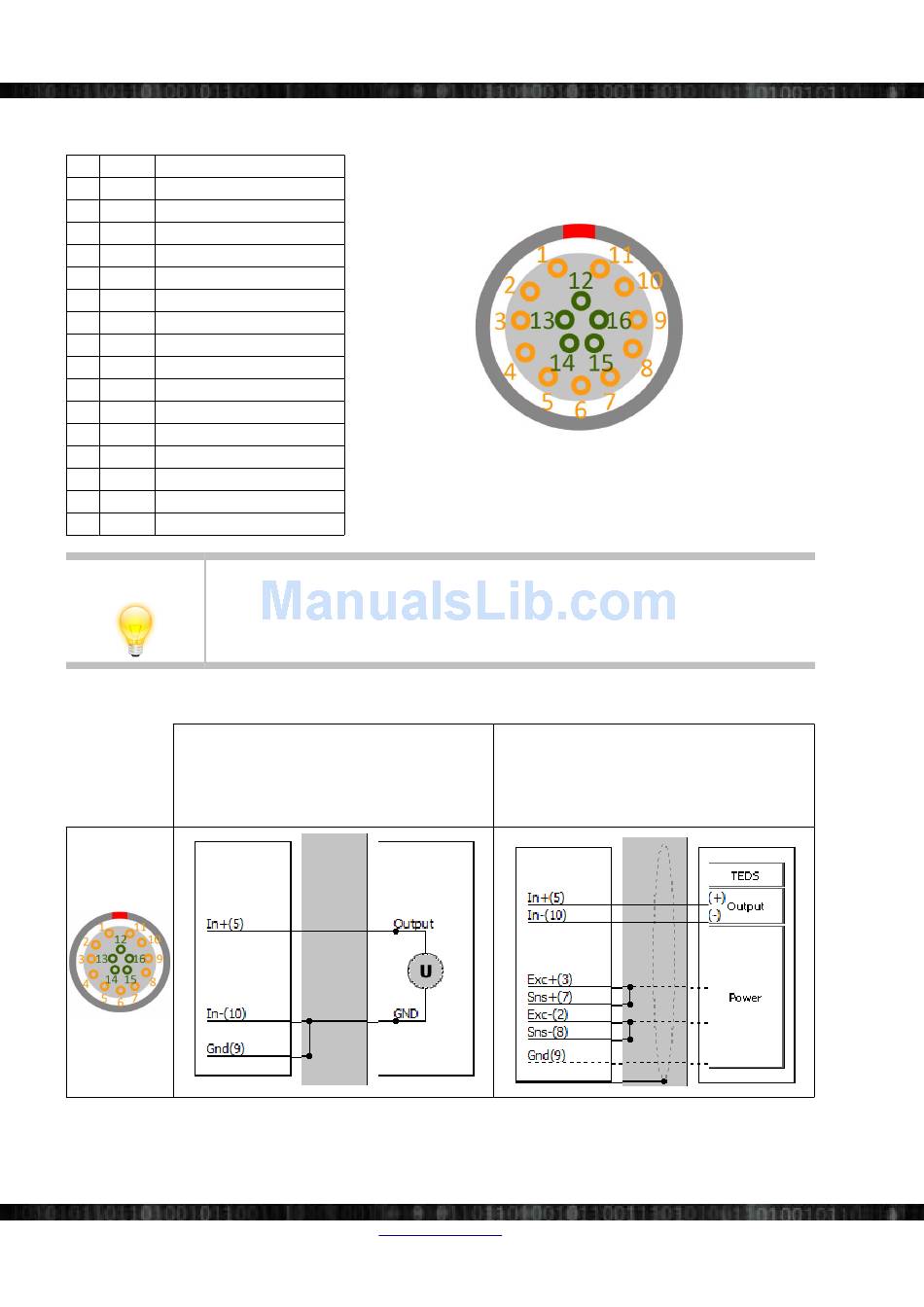

Illustration 128: SIRIUS-STGM-L2B16f pin-out
Voltage – Differential
Use only when the sensor is powered by the
excitation voltage of the module.
measurement innovation measurement innovation
DEWESoft® DEWESoft® DEWESoft®
measurement innovation
