SIRIUS®
DEWESoft® DEWESoft® DEWESoft®

4.6.2 Front Side

4.6.2.1 Power connector
Illustration 71:
Power Connector 2pin
4.6.2.2 Sync connectors: Pin-out (LEMO 4pin)
Illustration 72: SIRIUS Sync connector: pin-out (LEMO
Since there are 2 connectors it's easy to chain several SIRIUS® chassis (or DEWE-43, DS-CAN2, etc.) together.
Note that there is no distinction between IN and OUT – it does not matter which connector you use.
measurement innovation measurement innovation
Page 38/166
DEWESoft® DEWESoft® DEWESoft®

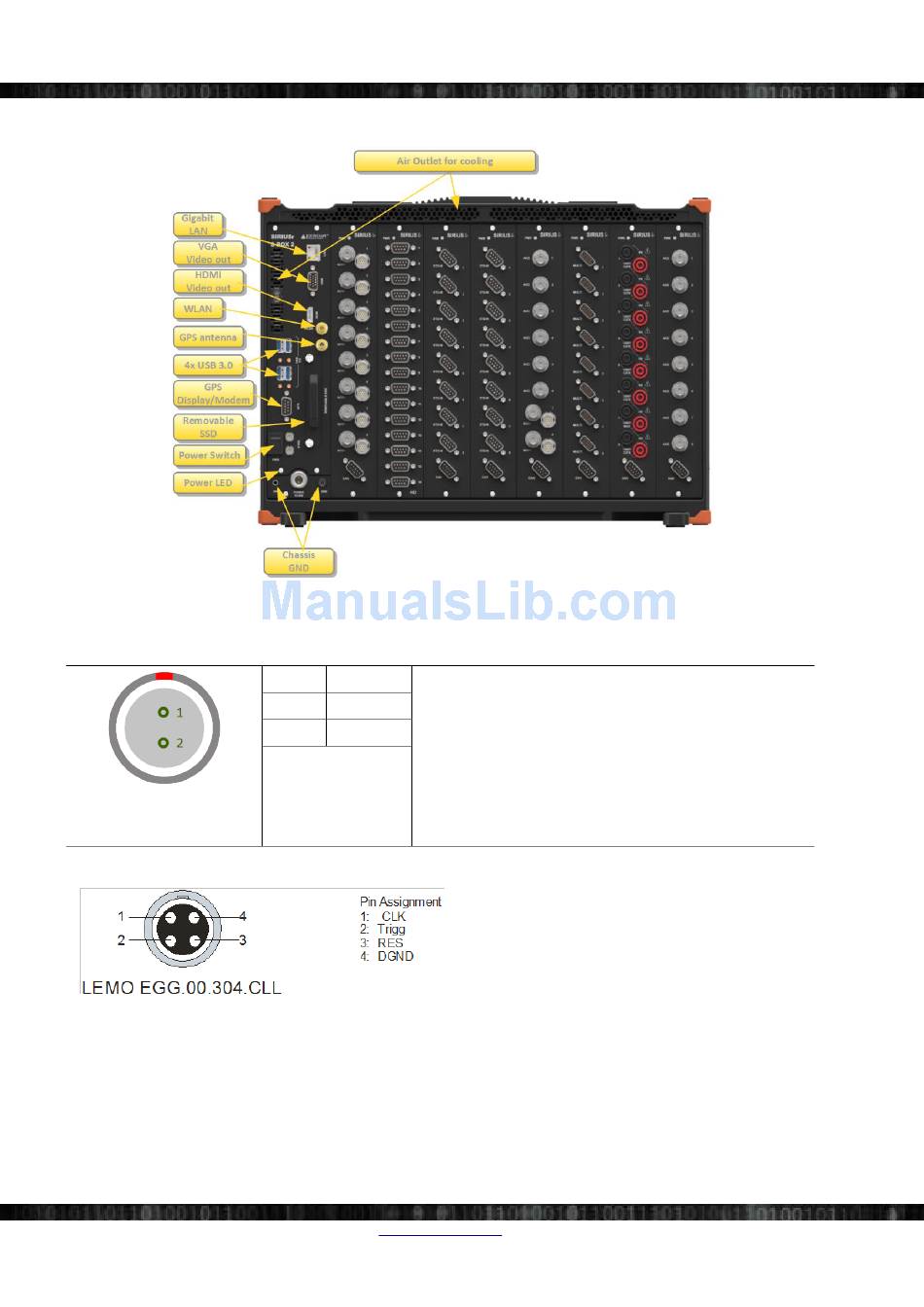

Illustration 70: SIRIUS-R8: Frontside
Pin Name
1 V+
2 GND
4pin)
measurement innovation measurement innovation
www.dewesoft.com
DEWESoft® DEWESoft®
L2B2f
Power connector (on the S-BOX): ECG.2B.302
Mating connector (for the cable): FGJ.2B.302
Mating connector:
FGG.00.302.CLAD27Z
When IRIG-synchronisation is used, the IRIG signal is
on pins 1, 2.
measurement innovation
DEWESoft® DEWESoft® DEWESoft®
measurement innovation
Doc-Version: 1.4.2
