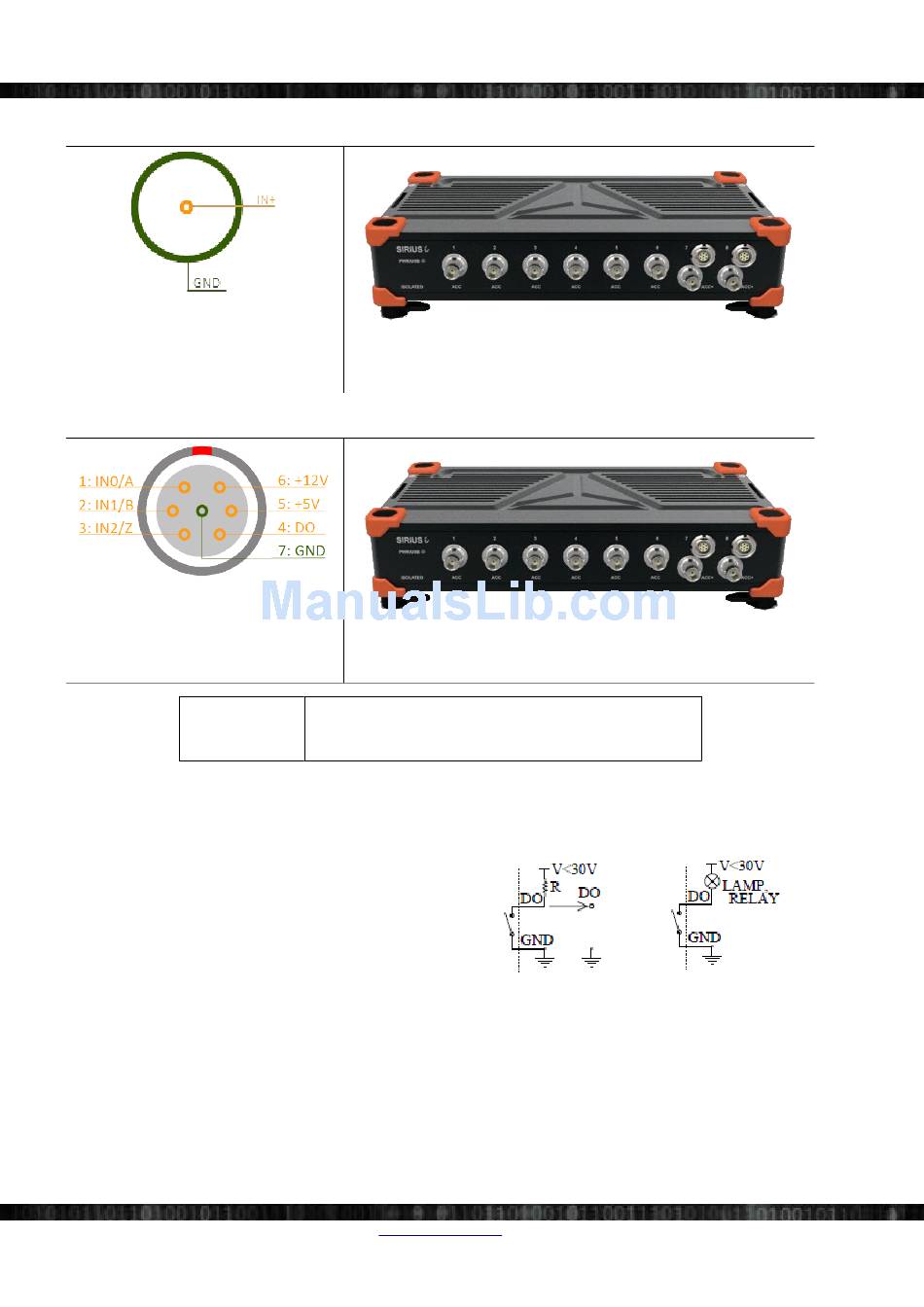

5.18.2 HS-CHG BNC

Illustration 155: SIRIUS-ACC: pin-out
(BNC)

5.18.3 HS-CHG+ (Counter) L1B7f

Illustration 157: CNT: counter pin-out
(LEMO 7pin)
Digital Output Configuration
The "switch" of the open collector output is closed when active.
measurement innovation measurement innovation
Page 112/166
DEWESoft® DEWESoft®
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 29: HS-CHG+ counter connector type
measurement innovation
DEWESoft® DEWESoft® DEWESoft®
Illustration 156: SIRIUS
Illustration 158: SIRIUS
measurement innovation measurement innovation
www.dewesoft.com
DEWESoft® DEWESoft®
i
8xHS-CHG-BNC
i
6xHS-CHG, 2xHS-CHG+
