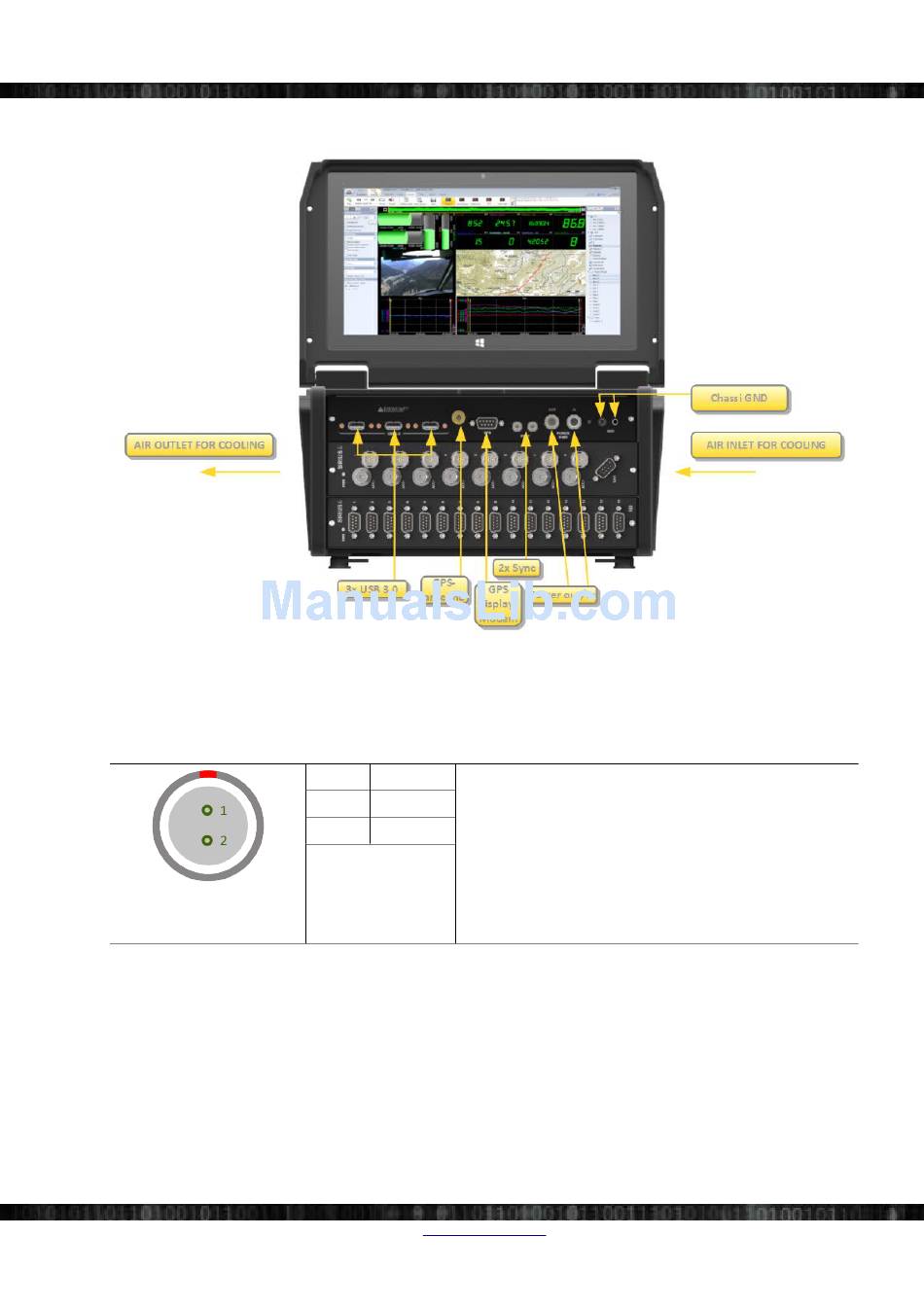

4.5.1 Frontside

4.5.1.1 USB
The internal USB hub is connected via a USB3 connection to the Surface device.
4.5.1.2 Power connector
Illustration 66:
Power Connector 2pin
The supply voltage can be between 9 and 36V.
measurement innovation measurement innovation
Doc-Version: 1.4.2
DEWESoft® DEWESoft® DEWESoft®
Pin Name
1 V+
2 GND
measurement innovation measurement innovation
DEWESoft® DEWESoft®
L2B2f
Power connector (on the S-BOX): ECG.2B.302
Mating connector (for the cable): FGJ.2B.302
