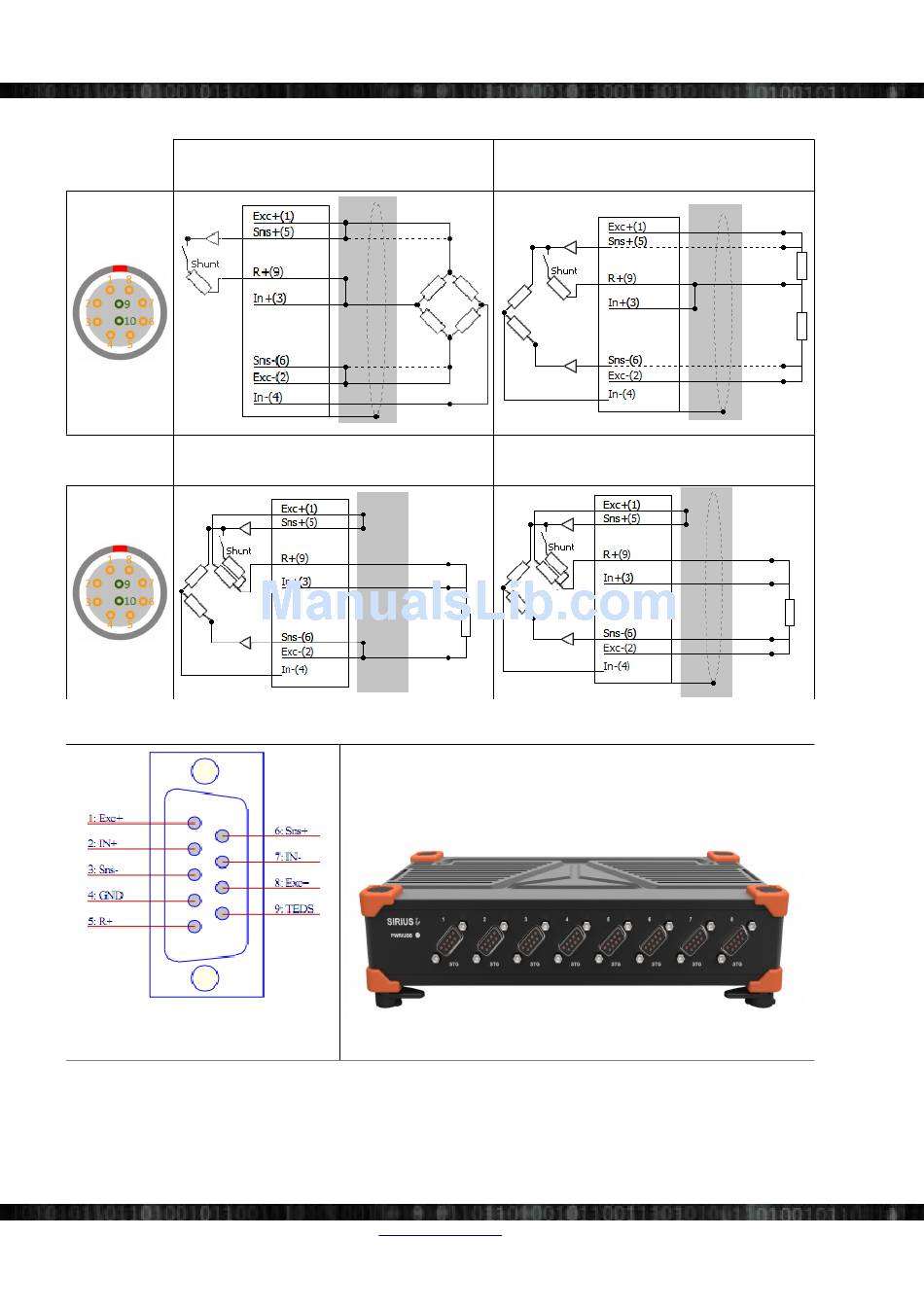

5.13.4.6 STG-L2B10f: Bridge
Full Bridge
Quarter Bridge – 3 wire

5.13.5 STG DSUB-9

Illustration 135: SIRIUS-STG pin-out
DSUB-9
measurement innovation measurement innovation
Page 94/166
DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation
www.dewesoft.com
DEWESoft® DEWESoft® DEWESoft®
Half Bridge
Quarter Bridge – 4 wire
Illustration 136: SIRIUS STG8 DSUB9
