7.1.3 MSI-TH-x

The MSI-TH-x allows thermocouple temperature measurement with
DS-MINITAUR). The common thermocouples types K, J and T are supported. For high temperature application also
type C is supported. A high precision cold junction compensation is included in the adapter.
The non-linearity of the thermocouple is compensated for in software. A TEDS chip (transducer electronic data-sheet)
provides automatic adapter identification by software and the calibration data.
In operation with the isolated
the differential SIRIUS® modules (or DEWE-43/DS-MINITAUR) only isolated thermocouples should be used, because
the thermocouple input is single ended.
7.1.3.1 MSI-TH-x Specifications
Sensor connection 1 m cable with standard miniature thermocouple connector according to TC type
Thermocouple Types
Cold junction compensation Integrated
Input impedance > 10 MΩ
Open TC detection Yes
measurement innovation measurement innovation
Page 138/166
DEWESoft® DEWESoft®
Storage Temperature
Operating Temperature
Relative humidity
RFI susceptibility
Table 36: MSI Environmental Specifications
SIRIUSi modules you will get fully

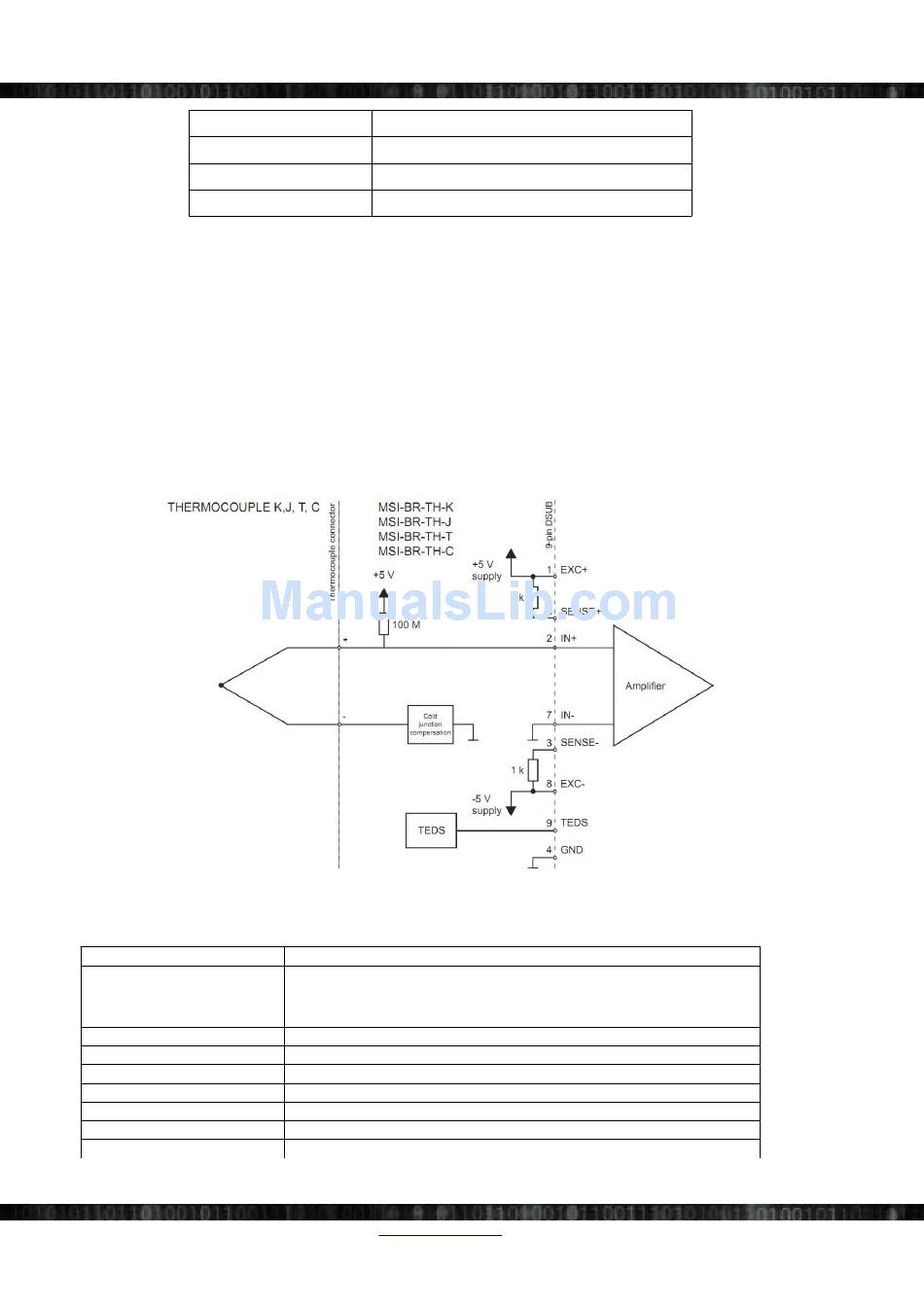

Illustration 190: Basic circuit design of MSI-TH-x
MSI-TH-K: Type K
MSI-TH-J: Type J
MSI-TH-T: Type T
MSI-TH-C: Type C
CJC accuracy 1.0°C
BIAS current 50nA
Linearisation Through software according to the sensor type
TEDS For adapter identification and calibration data
Table 37: MSI-TH-x Specifications
measurement innovation
