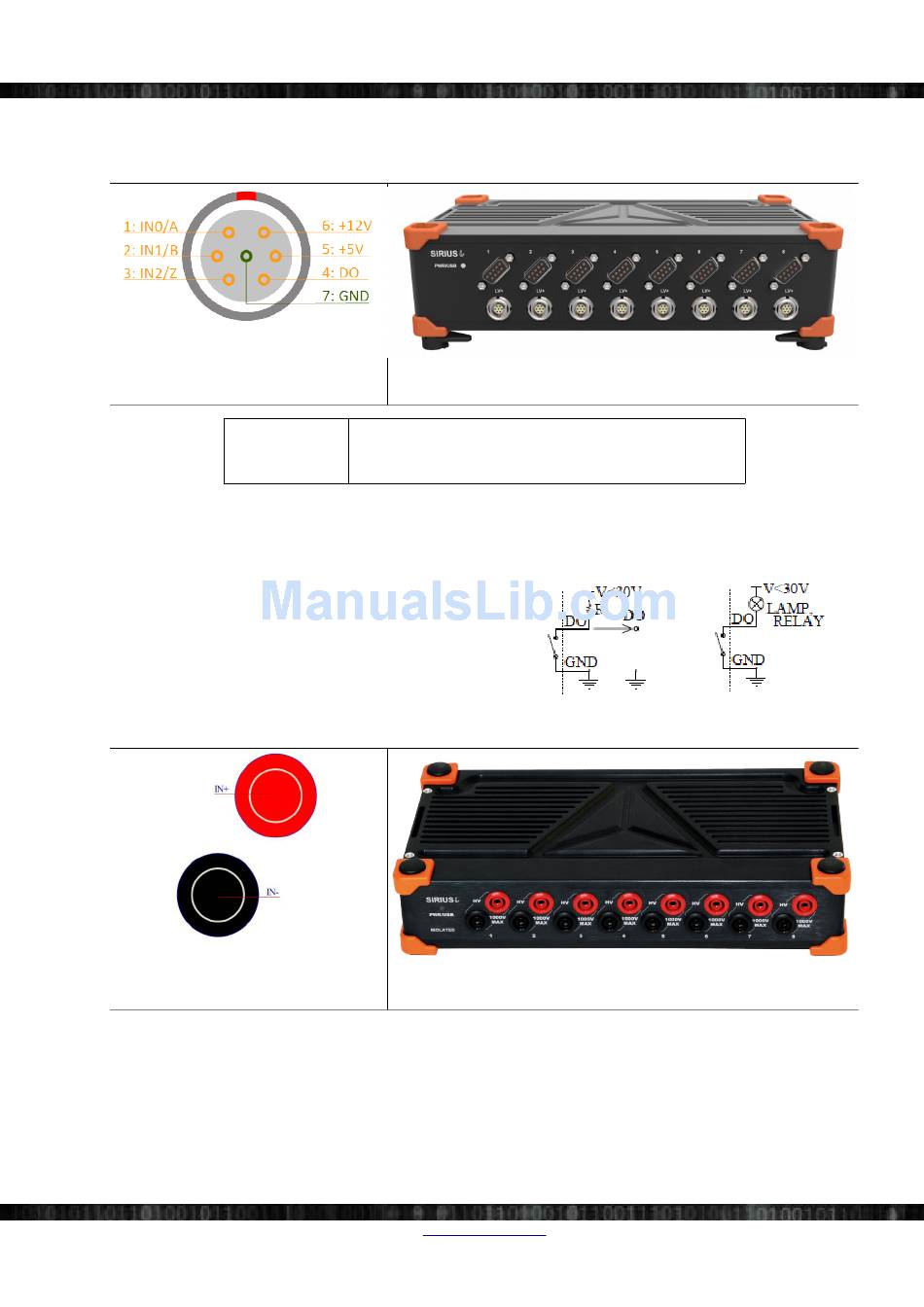

5.10.2 LV+ (Counter) L1B7f

As an additional function to the ACC module, the ACC+ module also has a 7-pin Lemo connector for digital counters.
Illustration 109: CNT: counter pin-out
Digital Output Configuration
The "switch" of the open collector output is closed when active.

5.10.3 LV BAN

Illustration 111: SIRIUS-LV pin-out
measurement innovation measurement innovation
Doc-Version: 1.4.2
DEWESoft® DEWESoft®
(LEMO 7pin)
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 15: LV+ counter connector type
Banana plug
measurement innovation
DEWESoft® DEWESoft® DEWESoft®
Illustration 110: SIRIUS
Illustration 112: SIRIUS
measurement innovation measurement innovation
www.dewesoft.com
SIRIUS® Measurement Modules
DEWESoft® DEWESoft® DEWESoft®
i
8xLV+
i
8xLV-BAN
measurement innovation
DEWESoft®
measurement innovation
Page 65/166
