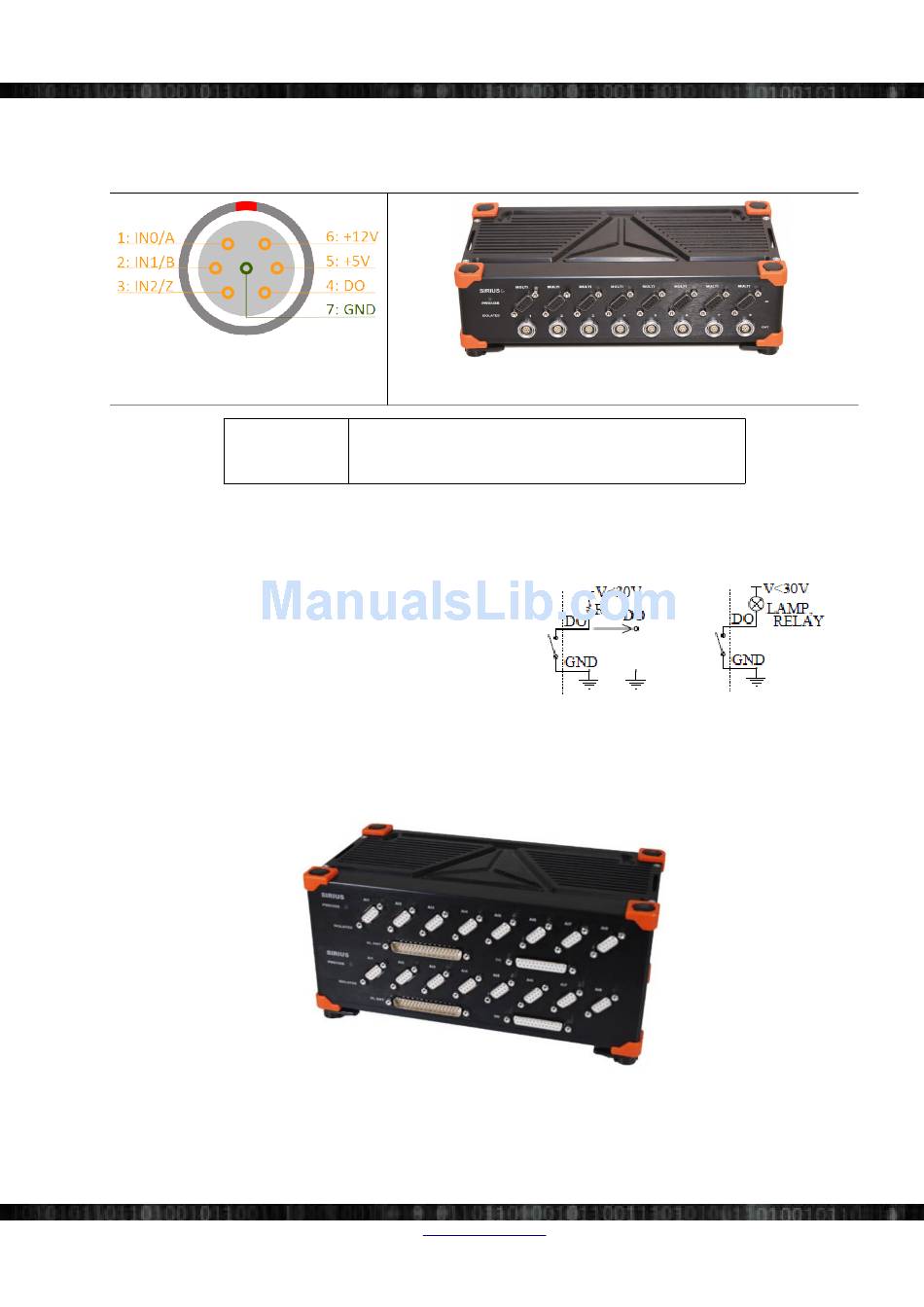

5.12.2 STGM+ (Counter) L1B7f

The STGM+ is the same as the STG-M but has an additional Lemo7 connector for the counter. Thus the enclosure is
higher than the standard enclosure (see 4.1.3 Extended Height Enclosure on page 25).
Illustration 120: CNT: counter pin-out
Digital Output Configuration
The "switch" of the open collector output is closed when active.

5.12.3 STGM-DB

The STGM-DB is the same as the STG-M but has an additional DSUB-37 male connector for 8 counter or 24 digital
inputs and an additional DSUB-25 female connector for 8 digital outputs.
Thus the enclosure is higher than the standard enclosure (see 4.1.3 Extended Height Enclosure on page 25).
measurement innovation measurement innovation
Doc-Version: 1.4.2
DEWESoft® DEWESoft®
(LEMO 7pin)
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 18: STGM+ Counter Specifications (per module)
Illustration 122: SIRIUS-STGM-DB (2 slices)
measurement innovation
DEWESoft® DEWESoft® DEWESoft®
Illustration 121: SIRIUS
measurement innovation measurement innovation
www.dewesoft.com
SIRIUS® Measurement Modules
DEWESoft® DEWESoft® DEWESoft®
i
8xSTGM+
measurement innovation
DEWESoft®
measurement innovation
Page 77/166
