B.1

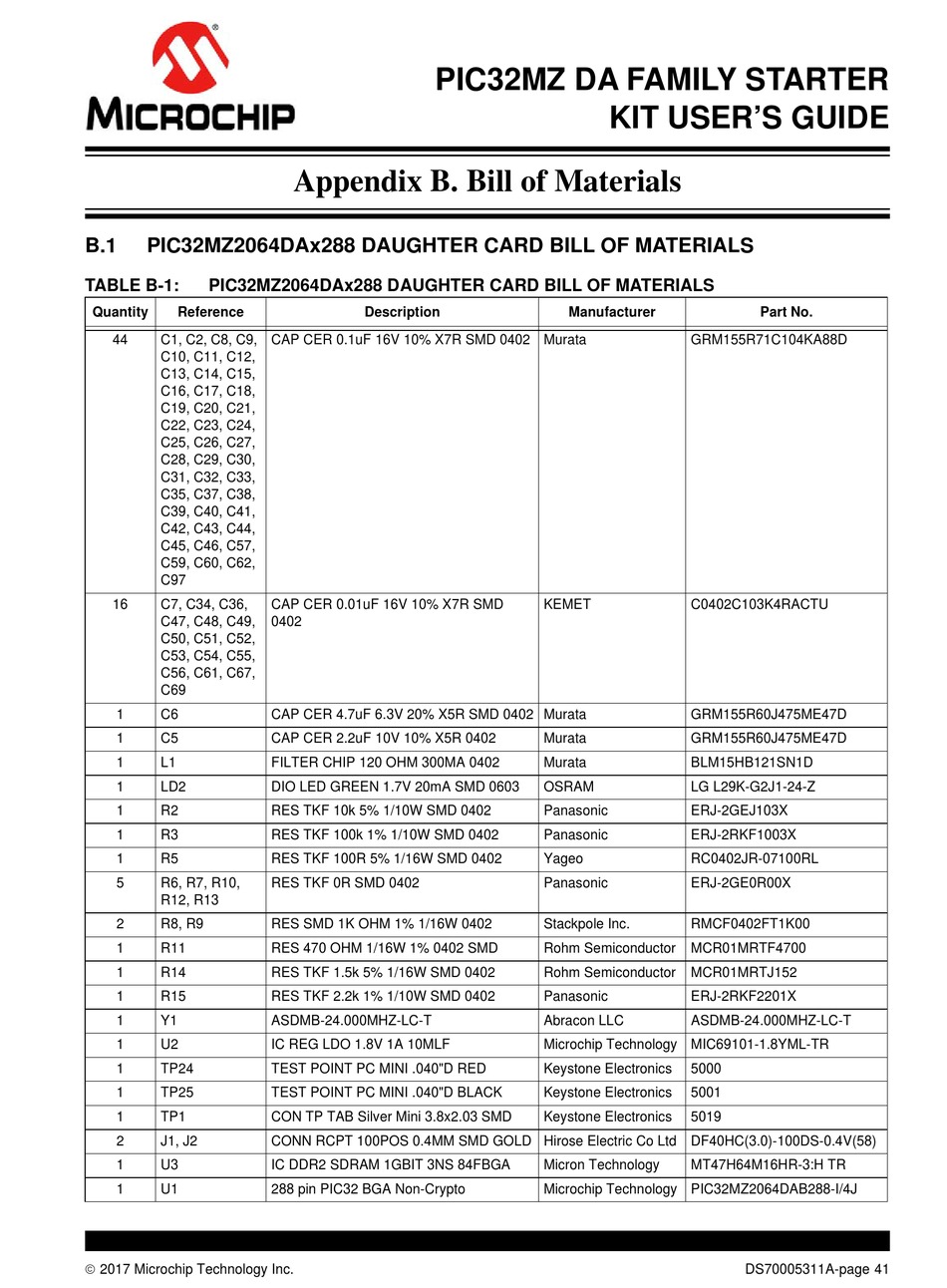

PIC32MZ2064DAx288 DAUGHTER CARD BILL OF MATERIALS

TABLE B-1: PIC32MZ2064DAx288 DAUGHTER CARD BILL OF MATERIALS
Quantity Reference
44 C1, C2, C8, C9,
C10, C11, C12,
C13, C14, C15,
C16, C17, C18,
C19, C20, C21,
C22, C23, C24,
C25, C26, C27,
C28, C29, C30,
C31, C32, C33,
C35, C37, C38,
C39, C40, C41,
C42, C43, C44,
C45, C46, C57,
C59, C60, C62,
C97
16 C7, C34, C36,
C47, C48, C49,
C50, C51, C52,
C53, C54, C55,
C56, C61, C67,
C69
1 C6
1 C5
1 L1
1 LD2
1 R2
1 R3
1 R5
5 R6, R7, R10,
R12, R13
2 R8, R9
1 R11
1 R14
1 R15
1 Y1
1 U2
1 TP24
1 TP25
1 TP1
2 J1, J2
1 U3
1 U1
 2017 Microchip Technology Inc.
PIC32MZ DA FAMILY STARTER

Appendix B. Bill of Materials

Description
CAP CER 0.1uF 16V 10% X7R SMD 0402 Murata
CAP CER 0.01uF 16V 10% X7R SMD
0402
CAP CER 4.7uF 6.3V 20% X5R SMD 0402 Murata
CAP CER 2.2uF 10V 10% X5R 0402
FILTER CHIP 120 OHM 300MA 0402
DIO LED GREEN 1.7V 20mA SMD 0603
RES TKF 10k 5% 1/10W SMD 0402
RES TKF 100k 1% 1/10W SMD 0402
RES TKF 100R 5% 1/16W SMD 0402
RES TKF 0R SMD 0402
RES SMD 1K OHM 1% 1/16W 0402
RES 470 OHM 1/16W 1% 0402 SMD
RES TKF 1.5k 5% 1/16W SMD 0402
RES TKF 2.2k 1% 1/10W SMD 0402
ASDMB-24.000MHZ-LC-T
IC REG LDO 1.8V 1A 10MLF
TEST POINT PC MINI .040"D RED
TEST POINT PC MINI .040"D BLACK
CON TP TAB Silver Mini 3.8x2.03 SMD
CONN RCPT 100POS 0.4MM SMD GOLD Hirose Electric Co Ltd DF40HC(3.0)-100DS-0.4V(58)
IC DDR2 SDRAM 1GBIT 3NS 84FBGA
288 pin PIC32 BGA Non-Crypto
KIT USER'S GUIDE
Manufacturer
GRM155R71C104KA88D
KEMET C0402C103K4RACTU
GRM155R60J475ME47D
Murata GRM155R60J475ME47D
Murata BLM15HB121SN1D
OSRAM LG L29K-G2J1-24-Z
Panasonic ERJ-2GEJ103X
Panasonic ERJ-2RKF1003X
Yageo RC0402JR-07100RL
Panasonic ERJ-2GE0R00X
Stackpole Inc. RMCF0402FT1K00
Rohm Semiconductor MCR01MRTF4700
Rohm Semiconductor MCR01MRTJ152
Panasonic ERJ-2RKF2201X
Abracon LLC ASDMB-24.000MHZ-LC-T
Microchip Technology MIC69101-1.8YML-TR
Keystone Electronics 5000
Keystone Electronics 5001
Keystone Electronics 5019
Micron Technology MT47H64M16HR-3:H TR
Microchip Technology PIC32MZ2064DAB288-I/4J
Part No.
DS70005311A-page 41
