The top assembly of the PIC32MZ2064DAx288 Daughter Card includes these key
features, as indicated in
1. PIC32MZ2064DAA288 (DM320008) or PIC32MZ2064DAB288 (DM320008-C)
2. Micron 1 Gbit DDR2-SDRAM (MT47H64M16NF-25E) (U3).
3. 24 MHz oscillator (Y1).
4. 24 MHz crystal (Y3) and 32.768
Note:
5. 1.8V Regulator (power supply for DDR2-SDRAM, V
6. 3.3V Power LED (LD2).

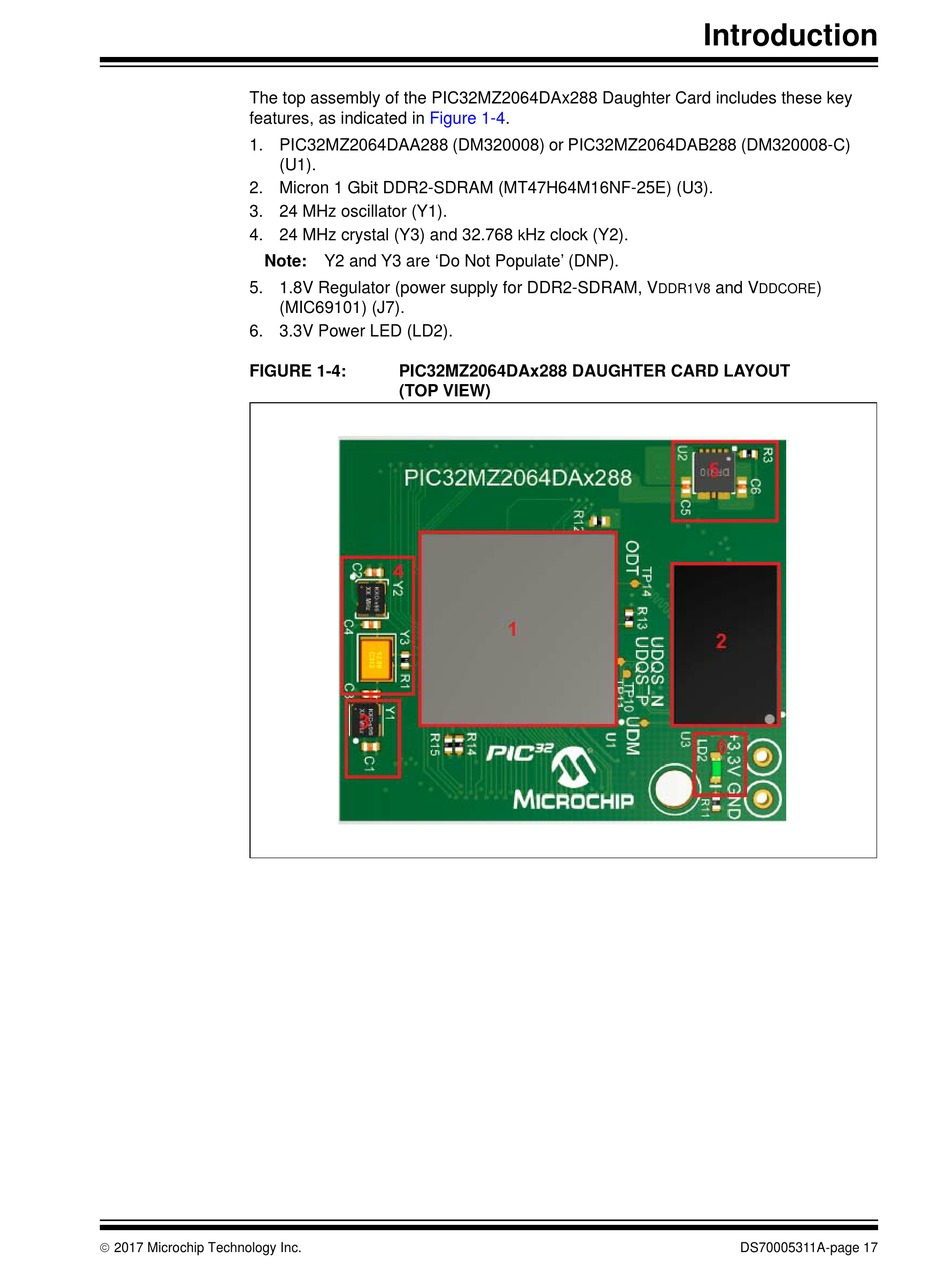

FIGURE 1-4:
 2017 Microchip Technology Inc.
Figure
(U1).
Y2 and Y3 are 'Do Not Populate' (DNP).
(MIC69101) (J7).
PIC32MZ2064DAx288 DAUGHTER CARD LAYOUT
(TOP VIEW)
1-4.
Hz clock (Y2).
k
DDR1V8
Introduction
and V )
DDCORE
