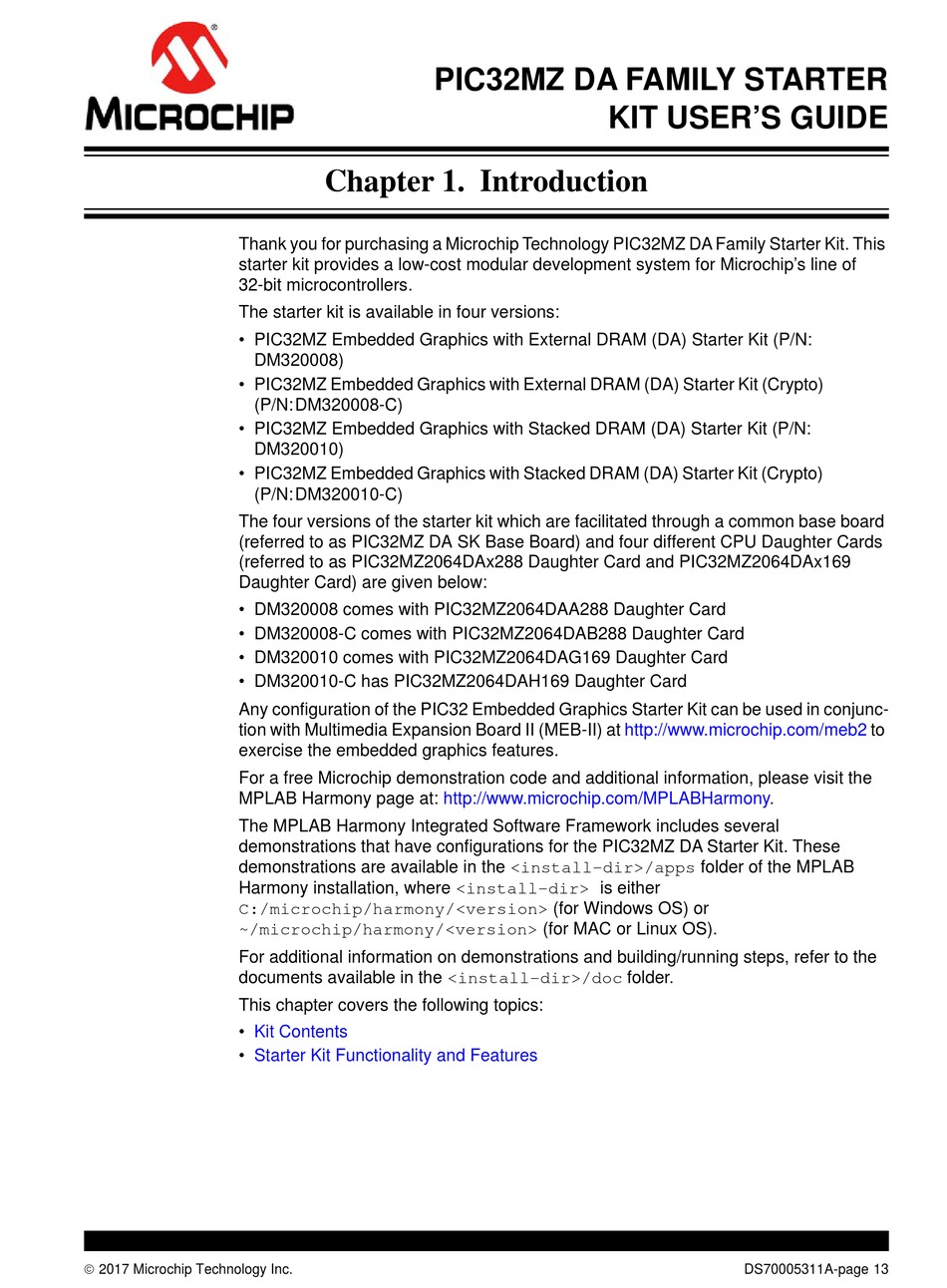

Thank you for purchasing a Microchip Technology PIC32MZ DA Family Starter Kit. This

starter kit provides a low-cost modular development system for Microchip's line of

32-bit microcontrollers.

The starter kit is available in four versions:

• PIC32MZ Embedded Graphics with External DRAM (DA) Starter Kit (P/N:

DM320008)

• PIC32MZ Embedded Graphics with External DRAM (DA) Starter Kit (Crypto)

(P/N: DM320008-C)

• PIC32MZ Embedded Graphics with Stacked DRAM (DA) Starter Kit (P/N:

DM320010)

• PIC32MZ Embedded Graphics with Stacked DRAM (DA) Starter Kit (Crypto)

(P/N: DM320010-C)

The four versions of the starter kit which are facilitated through a common base board

(referred to as PIC32MZ DA SK Base Board) and four different CPU Daughter Cards

(referred to as PIC32MZ2064DAx288 Daughter Card and PIC32MZ2064DAx169

Daughter Card) are given below:

• DM320008 comes with PIC32MZ2064DAA288 Daughter Card

• DM320008-C comes with PIC32MZ2064DAB288 Daughter Card

• DM320010 comes with PIC32MZ2064DAG169 Daughter Card

• DM320010-C has PIC32MZ2064DAH169 Daughter Card

Any configuration of the PIC32 Embedded Graphics Starter Kit can be used in conjunc-

tion with Multimedia Expansion Board II (MEB-II) at

exercise the embedded graphics features.

For a free Microchip demonstration code and additional information, please visit the

MPLAB Harmony page at: http://www.microchip.com/MPLABHarmony.

The MPLAB Harmony Integrated Software Framework includes several

demonstrations that have configurations for the PIC32MZ DA Starter Kit. These

demonstrations are available in the <install-dir>/apps folder of the MPLAB

Harmony installation, where <install-dir> is either

C:/microchip/harmony/<version> (for Windows OS) or

~/microchip/harmony/<version> (for MAC or Linux OS).

For additional information on demonstrations and building/running steps, refer to the

documents available in the <install-dir>/doc folder.

This chapter covers the following topics:

•

Kit Contents

•

Starter Kit Functionality and Features

 2017 Microchip Technology Inc.

PIC32MZ DA FAMILY STARTER
