The top assembly of the PIC32MZ2064DAx169 Daughter Card includes these key fea-
tures, as indicated in
1. PIC32MZ2064DAA169 (DM320010) or PIC32MZ2064DAB169 (DM320010-C)
2. 24 MHz oscillator (Y2).
3. 24 MHz crystal (Y3).
Note:
4. 32.768 kHz crystal (Y1)
Note:
5. 1.8V Regulator (power supply for DDR2-SDRAM, V
6. 3.3V Power LED (LD2).

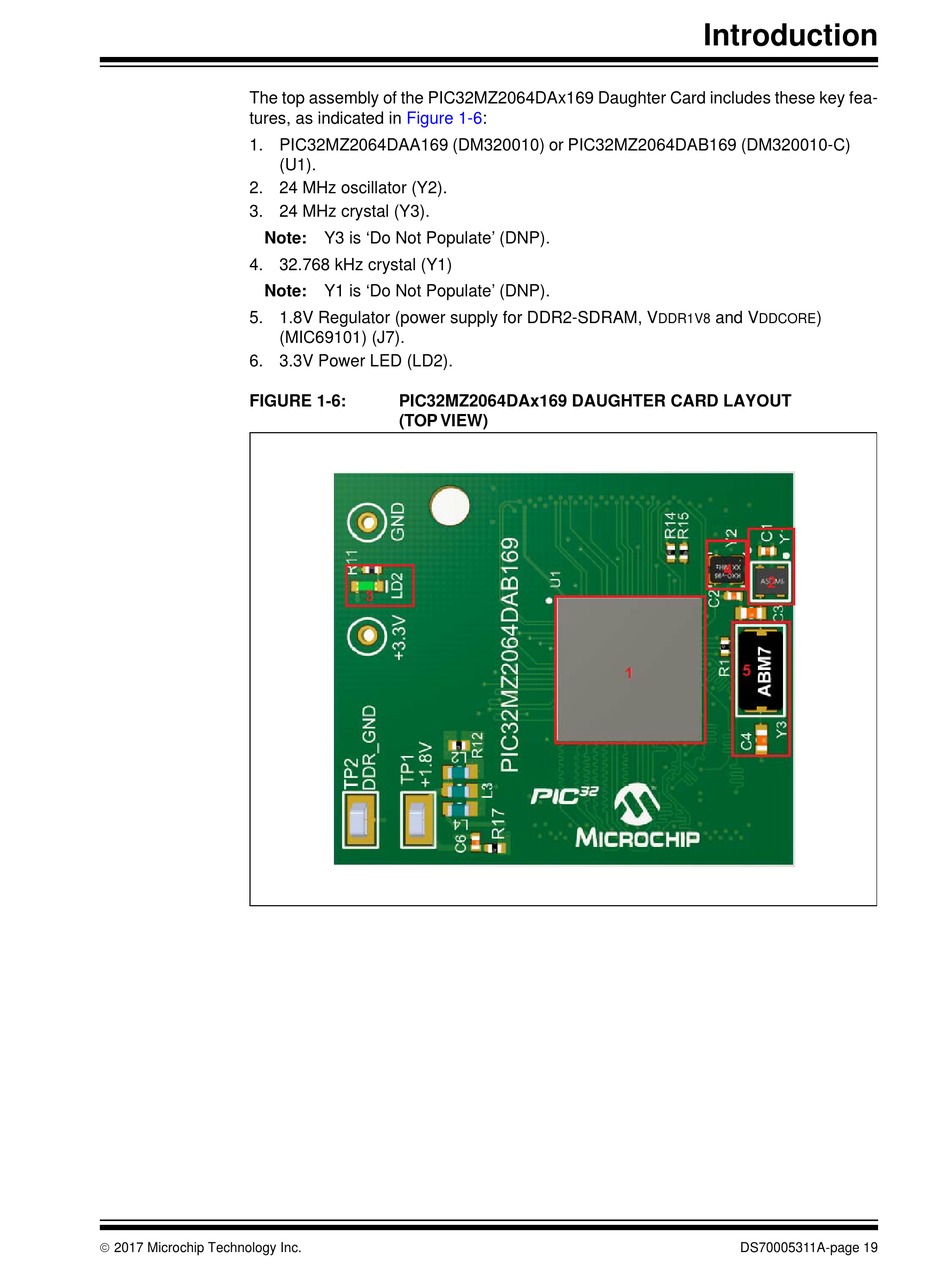

FIGURE 1-6:
 2017 Microchip Technology Inc.
Figure 1-6:
(U1).
Y3 is 'Do Not Populate' (DNP).
Y1 is 'Do Not Populate' (DNP).
(MIC69101) (J7).
PIC32MZ2064DAx169 DAUGHTER CARD LAYOUT
(TOP VIEW)
Introduction
and V )
DDR1V8 DDCORE
DS70005311A-page 19
