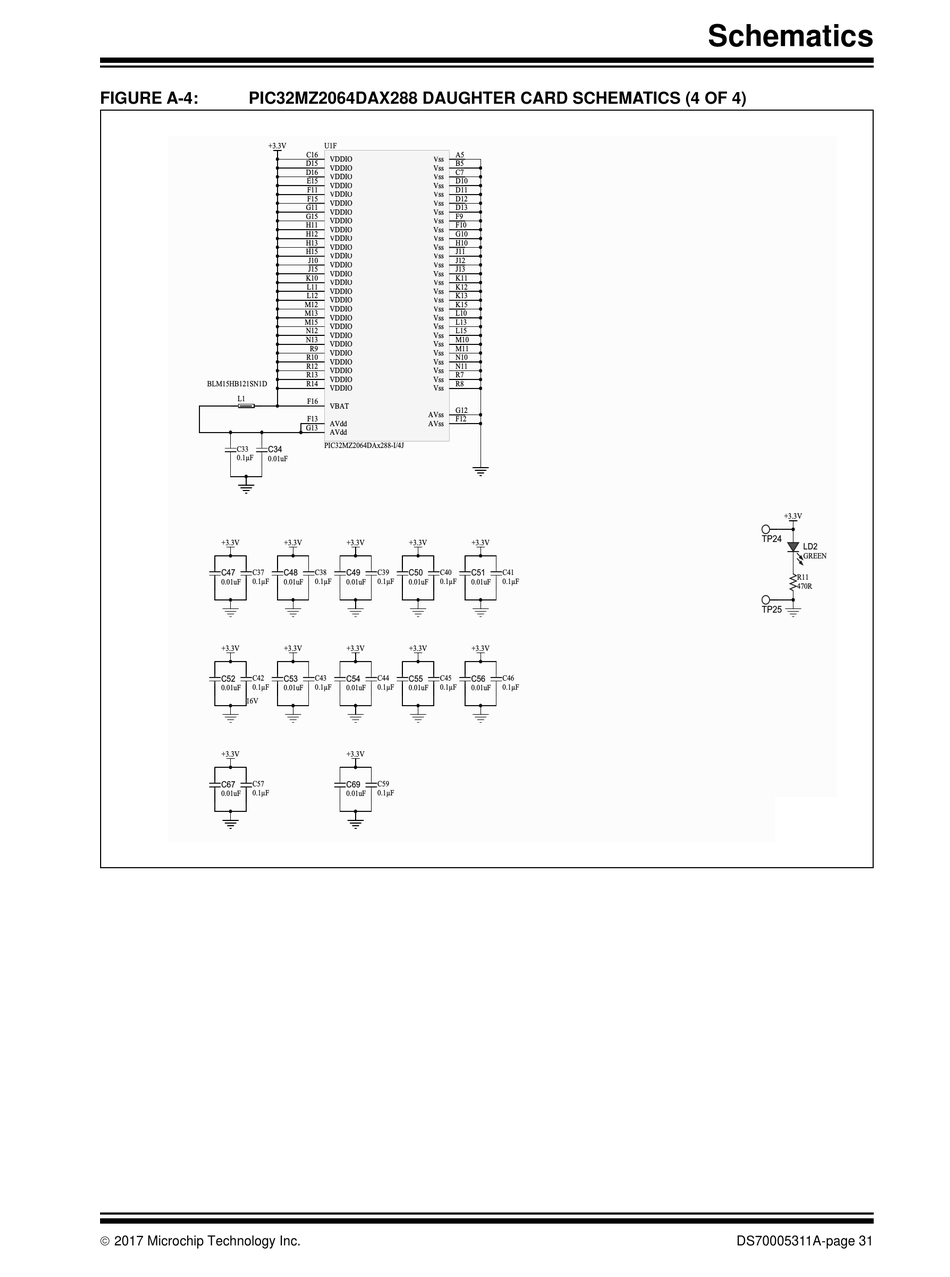

FIGURE A-4: PIC32MZ2064DAX288 DAUGHTER CARD SCHEMATICS (4 OF 4)
+3.3V
BLM15HB121SN1D
L1
C33 C34
0.1μF
0.01uF
+3.3V
C47 C37
0.01uF 0.1μF
+3.3V
C52 C42
0.1μF
0.01uF
16V
+3.3V
C67 C57
0.1μF
0.01uF
 2017 Microchip Technology Inc.
U1F
C16 A5
VDDIO VDDIO Vss Vss
D15 B5
VDDIO VDDIO Vss Vss
D16 C7
VDDIO VDDIO Vss Vss
E15 D10
VDDIO VDDIO Vss Vss
F11 D11
VDDIO VDDIO Vss Vss
F15 D12
VDDIO VDDIO Vss Vss
G11 D13
VDDIO VDDIO Vss Vss
G15 F9
VDDIO Vss Vss
H11 F10
VDDIO VDDIO Vss Vss
H12 G10
VDDIO VDDIO Vss Vss
H13 H10
VDDIO VDDIO Vss Vss
H15 J11
VDDIO VDDIO Vss Vss
J10 J12
VDDIO VDDIO Vss Vss
J15 J13
VDDIO VDDIO Vss Vss
K10 K11
VDDIO VDDIO Vss Vss
L11 K12
VDDIO Vss Vss
L12 K13
VDDIO Vss Vss
M12 K15
VDDIO Vss Vss
M13 L10
VDDIO Vss
M15 L13
VDDIO Vss
N12 L15
VDDIO Vss
N13 M10
VDDIO Vss
R9 M11
VDDIO Vss
R10 N10
VDDIO Vss
R12 N11
VDDIO Vss
R13 R7
VDDIO Vss
R14 R8
VDDIO Vss
F16
VBAT VBAT
G12
AVss AVss
F13 F12
AVdd AVdd AVss AVss
G13
AVdd AVdd
PIC32MZ2064DAx288-I/4J
+3.3V +3.3V +3.3V
C48 C38 C49 C39 C50 C40
0.01uF 0.1μF 0.01uF 0.1μF 0.01uF 0.1μF
+3.3V +3.3V +3.3V
C53 C43 C54 C44 C55 C45
0.1μF 0.1μF 0.1μF
0.01uF 0.01uF 0.01uF
+3.3V
C69 C59
0.1μF
0.01uF
+3.3V
C51 C41
0.01uF 0.1μF
+3.3V
C56 C46
0.1μF
0.01uF
Schematics
+3.3V
TP24
LD2
GREEN
R11
470R
TP25
Drawn By:
Serban Morea
Engineer:
Purnachander M
