PIC32MZ DA Family Starter Kit User's Guide
1.1
KIT CONTENTS
The PIC32MZ DA Starter Kit contains the following items:
• One PIC32MZ Embedded Graphics (DA) Starter Kit
• One LAN8740A Ethernet PHY Daughter Board
• One Type-A male to Micro-B USB cable (to communicate with the PIC32 DEBUG
port)
• One ETH cable
• Information sheet
Note:
1.2

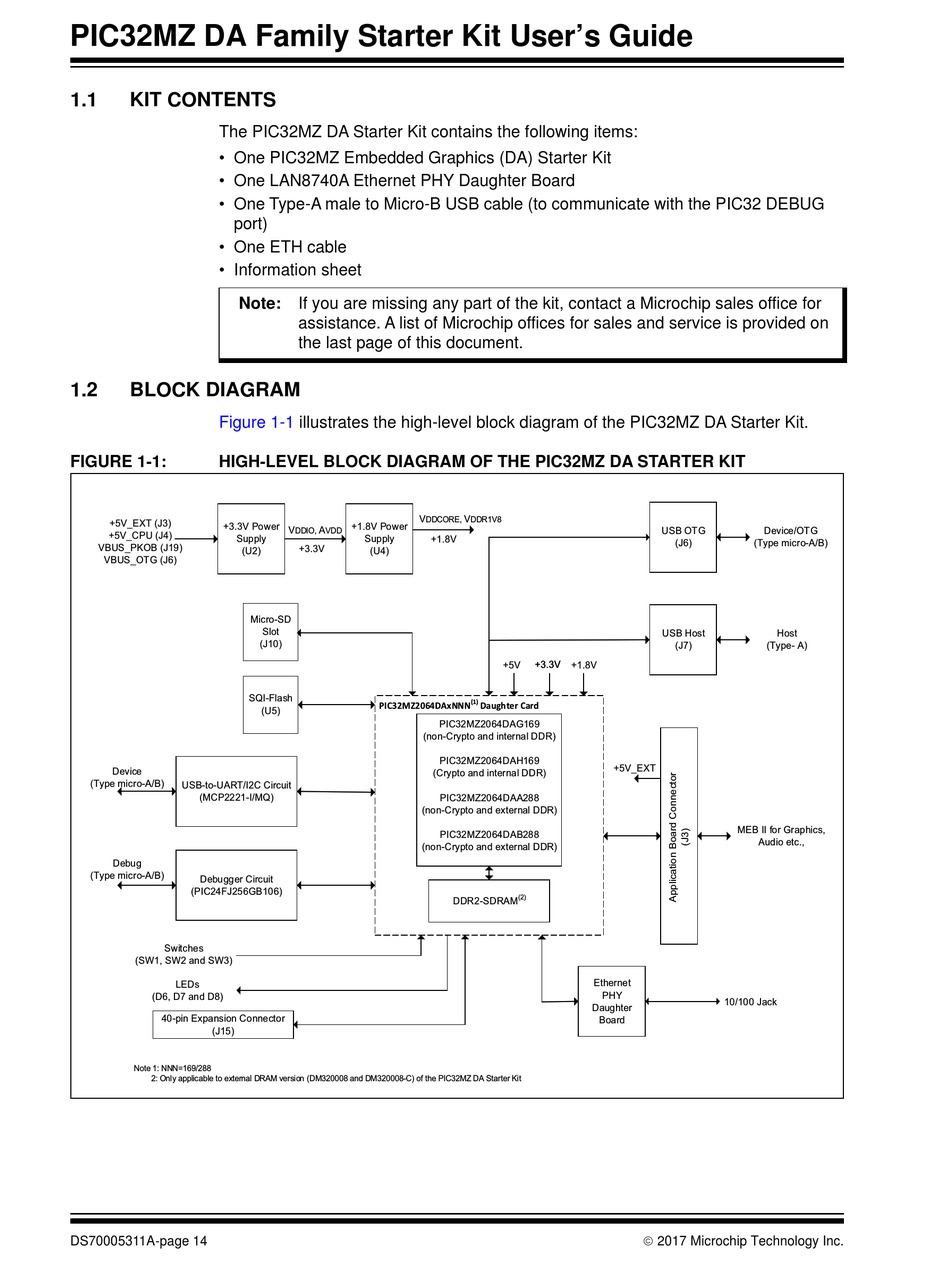

BLOCK DIAGRAM
Figure 1-1
FIGURE 1-1:
HIGH-LEVEL BLOCK DIAGRAM OF THE PIC32MZ DA STARTER KIT
+5V_EXT (J3)
+3.3V Power
+5V_CPU (J4)
Supply
VBUS_PKOB (J19)
(U2)
VBUS_OTG (J6)
Device
(Type micro-A/B)
USB-to-UART/I2C Circuit
(MCP2221-I/MQ)
Debug
(Type micro-A/B)
Debugger Circuit
(PIC24FJ256GB106)
Switches
(SW1, SW2 and SW3)
LEDs
(D6, D7 and D8)
40-pin Expansion Connector
(J15)
Note 1: NNN=169/288
2: Only applicable to external DRAM version (DM320008 and DM320008-C) of the PIC32MZ DA Starter Kit
DS70005311A-page 14
If you are missing any part of the kit, contact a Microchip sales office for
assistance. A list of Microchip offices for sales and service is provided on
the last page of this document.
illustrates the high-level block diagram of the PIC32MZ DA Starter Kit.
V
DDCORE,
+1.8V Power
V
A
DDIO,
VDD
Supply
+3.3V
(U4)
Micro-SD
Slot
(J10)
SQI-Flash
PIC32MZ2064DAxNNN
(U5)
(non-Crypto and internal DDR)
(non-Crypto and external DDR)
(non-Crypto and external DDR)
V
DDR1V8
+1.8V
+3.3V
+3.3V
+5V
+1.8V
(1)
Daughter Card
PIC32MZ2064DAG169
PIC32MZ2064DAH169
(Crypto and internal DDR)
PIC32MZ2064DAA288
PIC32MZ2064DAB288
(2)
DDR2-SDRAM
Ethernet
PHY
Daughter
Board
USB OTG
Device/OTG
(J6)
(Type micro-A/B)
USB Host
Host
(J7)
(Type- A)
+5V_EXT
MEB II for Graphics,
Audio etc.,
10/100 Jack
