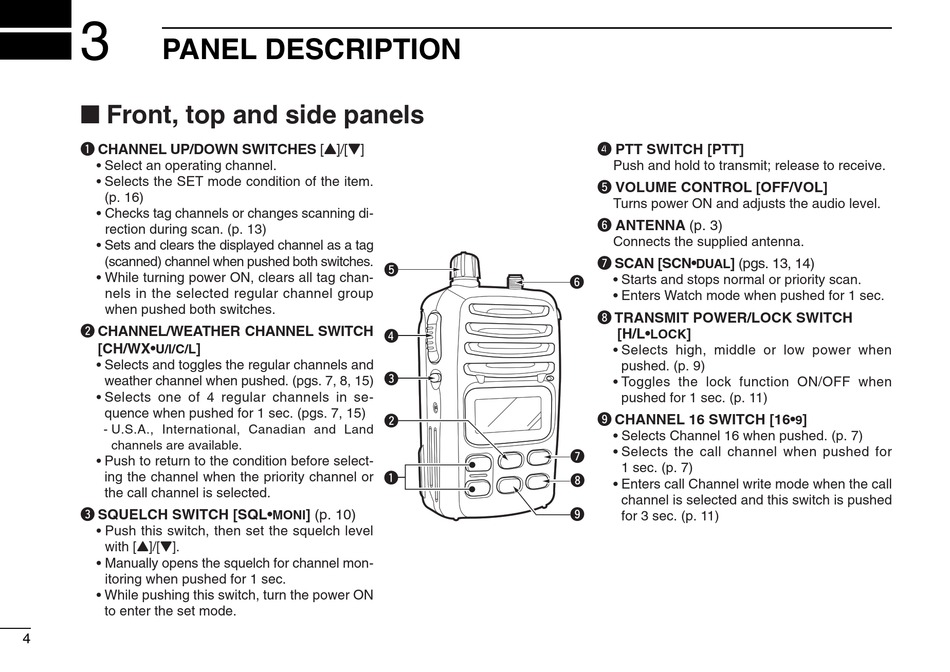

PANEL DESCRIPTION

I Front, top and side panels

q CHANNEL UP/DOWN SWITCHES [Y]/[Z]
• Select an operating channel.
• Selects the SET mode condition of the item.
(p. 16)
• Checks tag channels or changes scanning di-
rection during scan. (p. 13)
• Sets and clears the displayed channel as a tag
(scanned) channel when pushed both switches.
• While turning power ON, clears all tag chan-
nels in the selected regular channel group
when pushed both switches.
w CHANNEL/WEATHER CHANNEL SWITCH
[CH/WX• ]
U/I/C/L
• Selects and toggles the regular channels and
weather channel when pushed. (pgs. 7, 8, 15)
• Selects one of 4 regular channels in se-
quence when pushed for 1 sec. (pgs. 7, 15)
- U.S.A., International, Canadian and Land
channels are available.
• Push to return to the condition before select-
ing the channel when the priority channel or
the call channel is selected.
e SQUELCH SWITCH [SQL•
• Push this switch, then set the squelch level
with [Y]/[Z].
• Manually opens the squelch for channel mon-
itoring when pushed for 1 sec.
• While pushing this switch, turn the power ON
to enter the set mode.
4
t
r
e
w
q
] (p. 10)
MONI
r0 PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t VOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio level.
y ANTENNA (p. 3)
Connects the supplied antenna.
u SCAN [SCN•
] (pgs. 13, 14)
DUAL
y • Starts and stops normal or priority scan.
• Enters Watch mode when pushed for 1 sec.
i TRANSMIT POWER/LOCK SWITCH
[H/L• ]
LOCK
• Selects high, middle or low power when
pushed. (p. 9)
• Toggles the lock function ON/OFF when
pushed for 1 sec. (p. 11)
o CHANNEL 16 SWITCH [16•
• Selects Channel 16 when pushed. (p. 7)
• Selects the call channel when pushed for
u
1 sec. (p. 7)
i
• Enters call Channel write mode when the call
channel is selected and this switch is pushed
o
for 3 sec. (p. 11)
]
