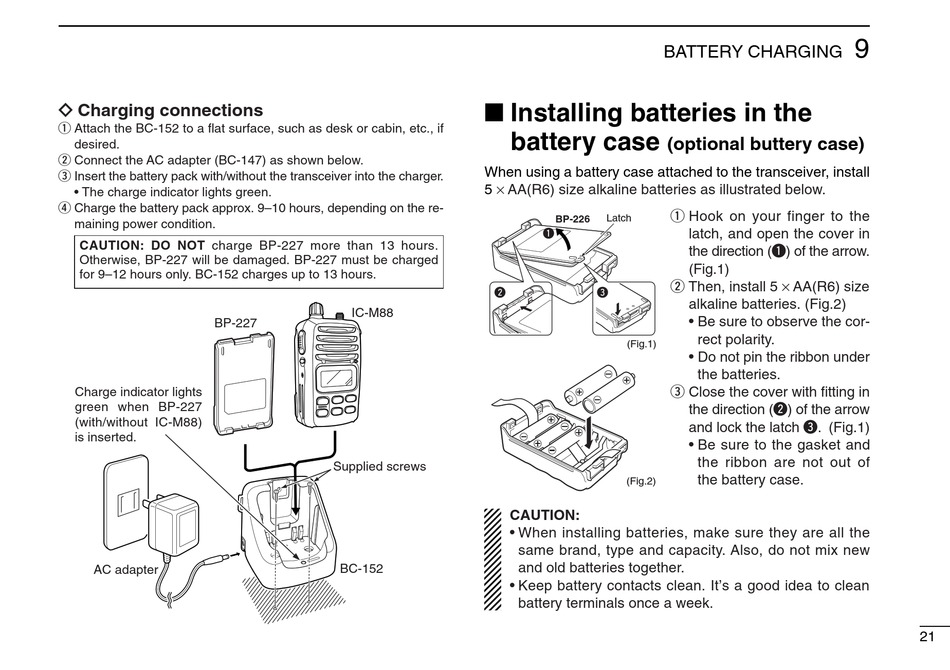

I Installing Batteries In The Battery Case - Icom IC-M88 Instruction Manual

ï Charging connections
q Attach the BC-152 to a flat surface, such as desk or cabin, etc., if
desired.
w Connect the AC adapter (BC-147) as shown below.
e Insert the battery pack with/without the transceiver into the charger.
• The charge indicator lights green.
r Charge the battery pack approx. 9–10 hours, depending on the re-
maining power condition.
CAUTION: DO NOT charge BP-227 more than 13 hours.
Otherwise, BP-227 will be damaged. BP-227 must be charged
for 9–12 hours only. BC-152 charges up to 13 hours.
BP-227
Charge indicator lights
green when BP-227
(with/without IC-M88)
is inserted.
AC adapter
I Installing batteries in the
battery case
When using a battery case attached to the transceiver, install
× AA(R6) size alkaline batteries as illustrated below.
5
w
IC-M88
Supplied screws
CAUTION:
• When installing batteries, make sure they are all the
BC-152
• Keep battery contacts clean. It's a good idea to clean
BATTERY CHARGING
(optional buttery case)
q Hook on your finger to the
Latch
BP-226
q
latch, and open the cover in
the direction (q) of the arrow.
(Fig.1)
w Then, install 5 × AA(R6) size
e
alkaline batteries. (Fig.2)
• Be sure to observe the cor-
rect polarity.
(Fig.1)
• Do not pin the ribbon under
the batteries.
e Close the cover with fitting in
the direction (w) of the arrow
and lock the latch e. (Fig.1)
• Be sure to the gasket and
the ribbon are not out of
the battery case.
(Fig.2)
same brand, type and capacity. Also, do not mix new
and old batteries together.
battery terminals once a week.
9
21
